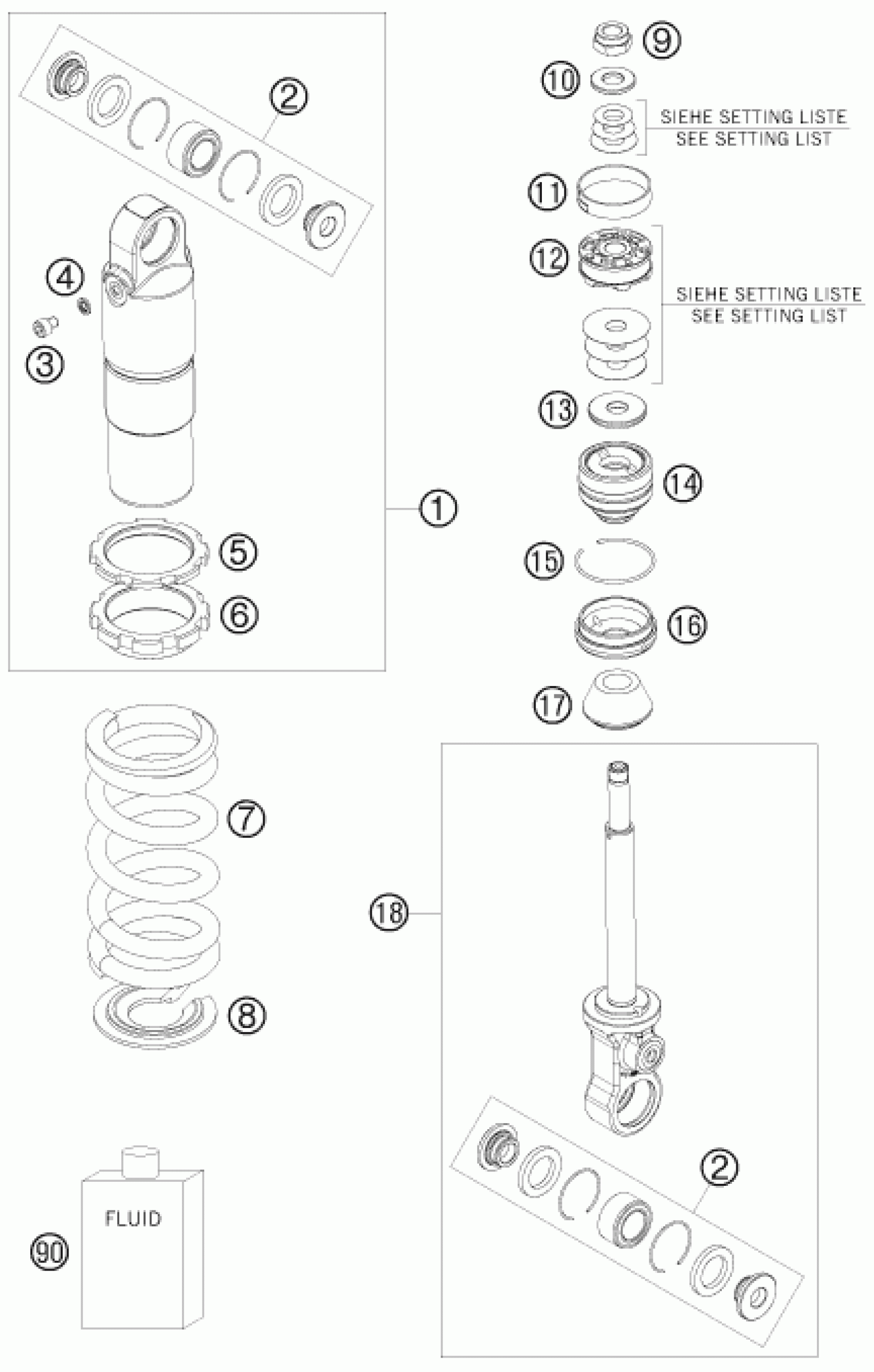

KTM 50 SX JUNIOR 2007 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

Tube incl. tap 140mm cpl.

36120784S

Unavailable

2

REPAIR KIT BEARINGS 50SX JUN07

R306

$76.07

3

SCREW M5 C.K. RVS

36120785

$2.73

4

SEAL D5,21XD8,38X1,22

36120782

$10.84

5

Lock nut shock M44x1,5

36120015

$30.75

6

Adjustment nut shock M44x1,5

36120418

$45.71

7

SPRING 75N/MM 75-130 130MM OR.

93010178S

Unavailable

7

SPRING 65N/MM 65-130 130MM OR.

93010179S

Unavailable

7

SPRING 85N/MM 85-130 130MM OR.

93010180S

Unavailable

8

Spring retainer 27x53x3

36120461

$45.81

9

Piston rod nut M10x1 black

36120052

$11.12

10

Washer 10x22x2,5

36120604

$20.84

11

Pistonring 33x35x8

36120040

$6.91

12

Piston 10,5x35,6x13,65 3,5/5,5

36120071

$61.70

13

Rebound disc 12x28,5x4 h0

14360065

$10.65

14

ADAPTOR 36MM 07

14360011S1

Unavailable

15

Round-wire snap ring 38x1,5

40540015

$3.08

16

Cover 36,12x5,5 h13

36120780

$21.96

17

Rubber pad 14x34x19

36120427

$37.02

18

MONOSH. BOTTOM PART L86 CPL.07

36120777S1

$290.90

90

SHOCK ABSORBER FLUID 5 LT 05

50180466S1

$149.59
