Description

Price

1

FORK CPL. 32MM PRO JUNIOR '97

45001000144

Unavailable

2

FORK LEG L/S CPL.

45001001100

Unavailable

3

FORK LEG R/S CPL.

45001002100

Unavailable

4

BOT.FORK PLATE CPL.

45001032014

Unavailable

5

TOP FORK PLATE

45001034014

$93.36

6

AH SCREW DIN0912-M 8X30

0912080303

$2.05

7

* SCREW CAP CPL.

45001008000

Unavailable

8

SLIDER R/S

45001005100

Unavailable

9

SLIDER L/S

45001004100

Unavailable

10

FORK TUBE D=32 MM

45001003100

Unavailable

11

REPAIR KIT CPL.

45001010100

Unavailable

12

PRELOAD BUSH L=20 MM

45001022100

Unavailable

13

* SPRING

45001021000

Unavailable

14

SPRING

45001050000

Unavailable

15

HANDLEBAR CLAMP CPL.

45001038044

$57.80

16

SEAL KIT

45001014000

$25.56

17

BRAKE CABLE CLAMP RSGU 9/12

45001070000

$5.23

18

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

19

Self locking nut DIN 985 M5

0985050003

$2.05

20

STEERING STEM BEARINGS 50 SXR

45001081000

$12.86

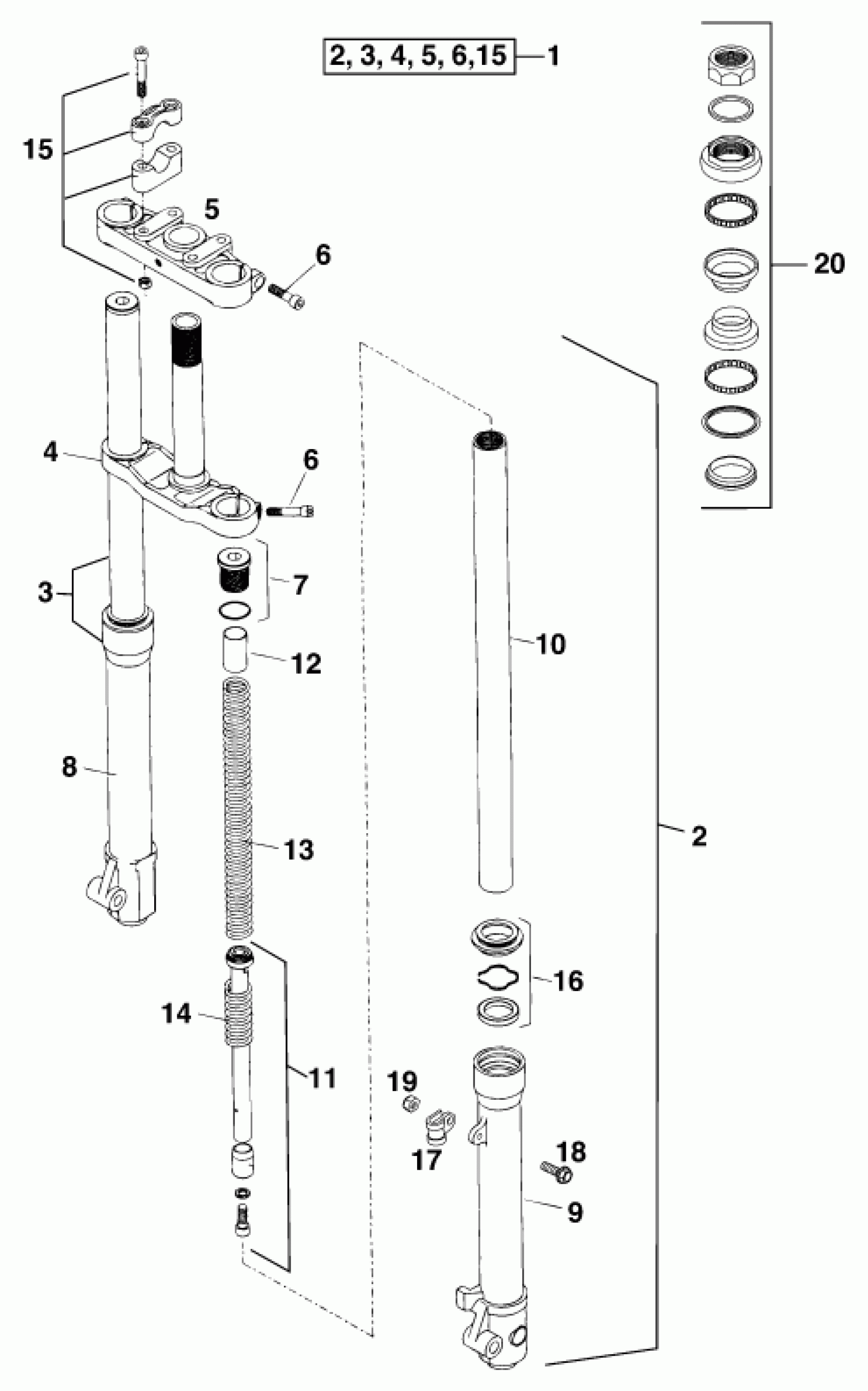

KTM 50 SX JUNIOR 2000 FRONT FORK, TRIPLE CLAMP Diagram

FORK CPL. 32MM PRO JUNIOR '97

FORK LEG L/S CPL.

FORK LEG R/S CPL.

BOT.FORK PLATE CPL.

TOP FORK PLATE

AH SCREW DIN0912-M 8X30

* SCREW CAP CPL.

SLIDER R/S

SLIDER L/S

FORK TUBE D=32 MM

REPAIR KIT CPL.

PRELOAD BUSH L=20 MM

* SPRING

SPRING

HANDLEBAR CLAMP CPL.

SEAL KIT

BRAKE CABLE CLAMP RSGU 9/12

HH COLLAR SCREW M 5X16 WS=8

Self locking nut DIN 985 M5

STEERING STEM BEARINGS 50 SXR
