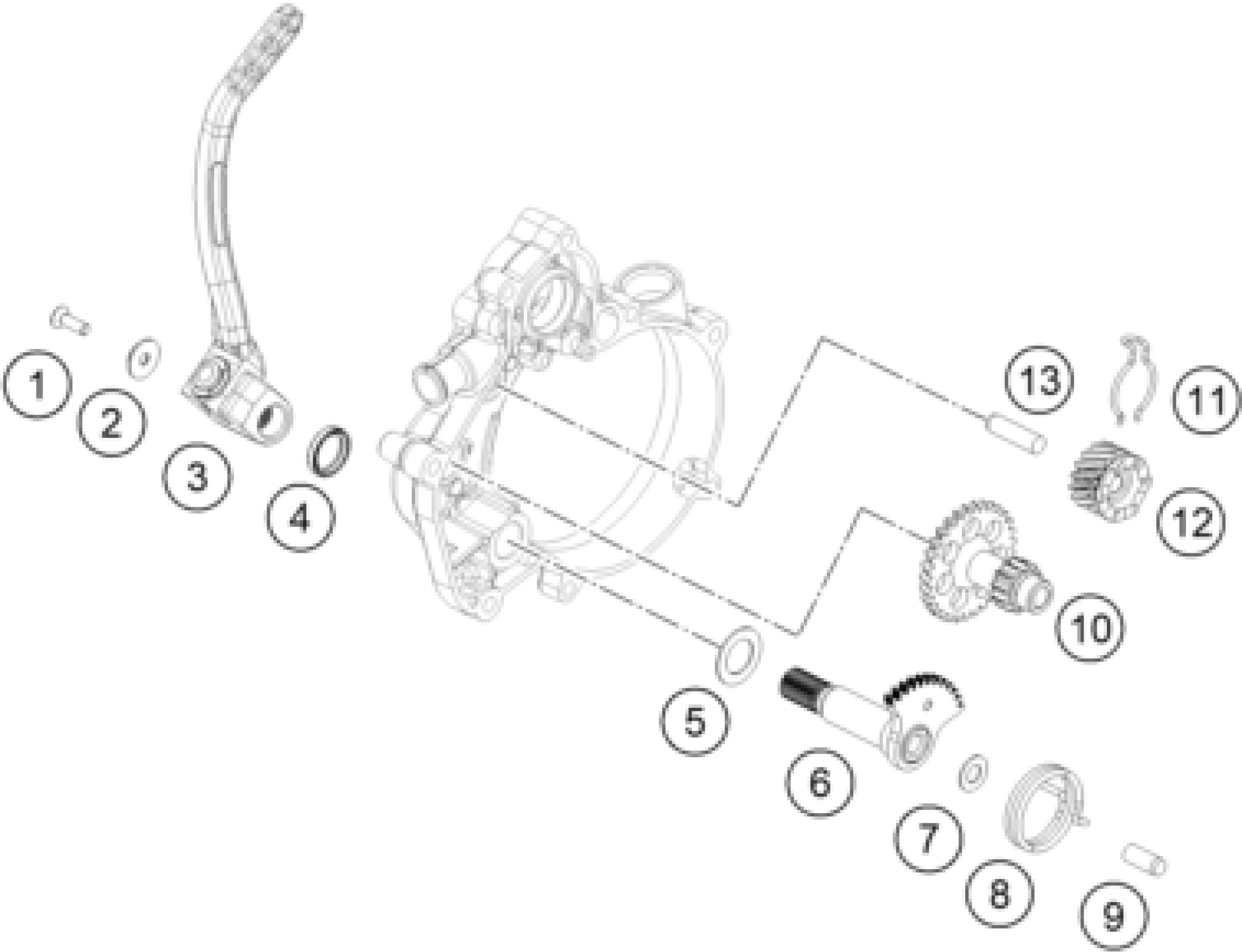

KTM 50 SX 2026 KICK STARTER Diagram

#

Description
Price

1

INT. TORX FLAT HEAD M5X16 8.8

0019050163S

$2.05

2

SPECIAL WASHER FOR M5 03

60008045100

$7.56

3

Kick-starter system complete

A40033070044

$115.46

4

SHAFT SEAL RING BALANC. SHAFT

0760162240

$5.23

5

WASHER 16,3X25,8X1

45233058000

$4.11

6

Kick-starter shaft

45233050200

$56.28

7

WASHER 8,2X16X1

45233057000

$4.11

8

Kick-starter spring

45233054100

$1.58

9

CYLINDER STUD DIN6325 8X20 M6

0325080200

$2.05

10

Kick starter idling shaft 12Z

45233153000

$89.94

11

ratchet wheel spring

A40033056000

Unavailable

12

Kick-starter ratchet wheel

A40033052016

$28.32

13

CYLINDER STUD DIN6325 8X30 M6

0325080300

$2.05
