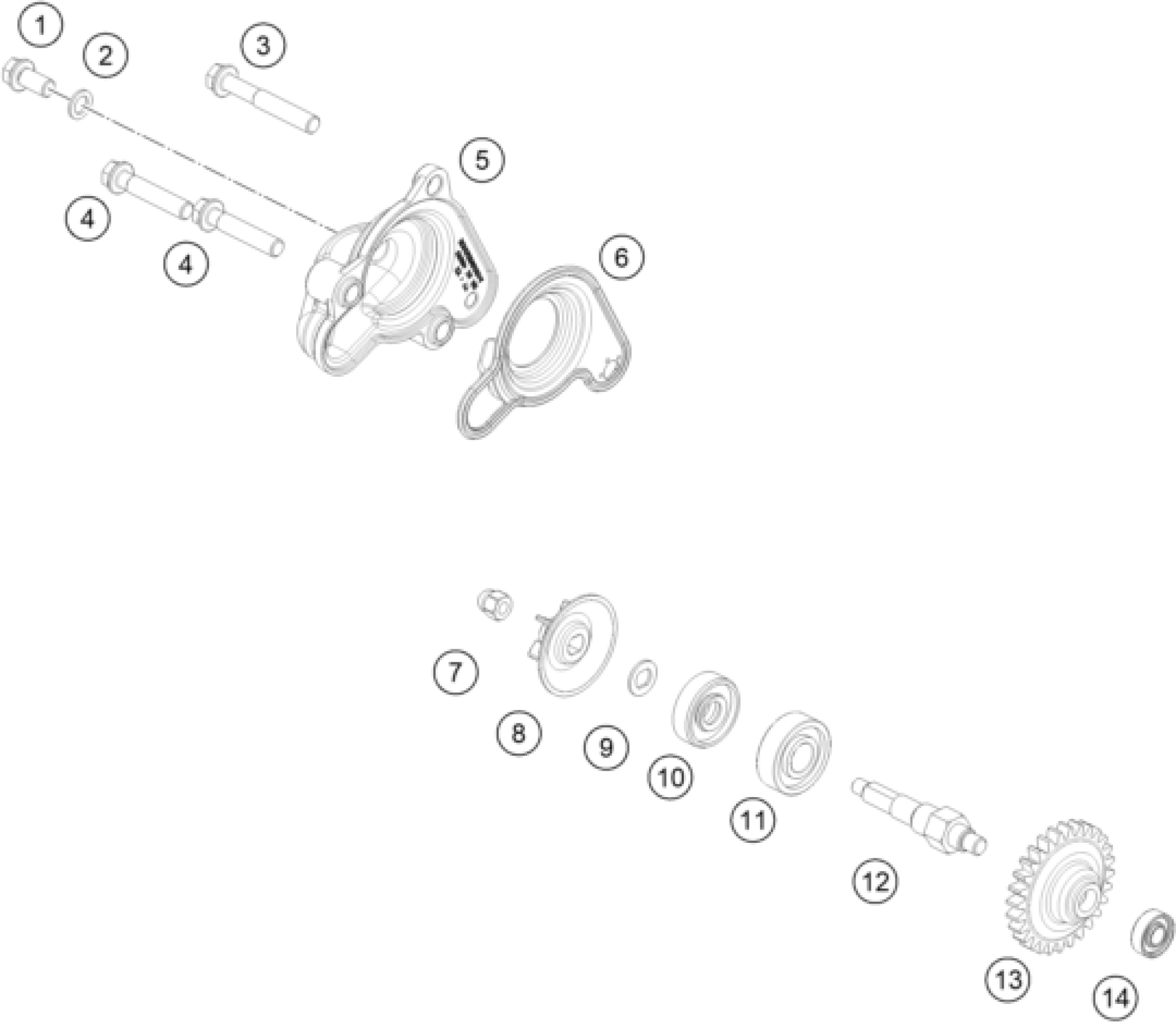

KTM 50 SX 2024 WATER PUMP Diagram

#

Description
Price

1

HH collar screw M6x12 TX30

0025060126

$3.08

2

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

3

HH collar screw M6x40 TX30

0025060406

$3.08

4

HH collar screw M6x30 TX30

0025060306

$3.08

5

Water pump cover

A40035052000

$19.63

6

Gasket with carrier plate

A40035053000

$19.53

7

Cap nut M5 DIN 1587

0015870501000

$1.49

8

Water pump impeller

A40035055000

$6.72

9

PREFORMED WASHER

50435049000

$4.11

10

SHAFT SEAL RING 8X24X7 A DUO

0760082472

$7.66

11

BALL BEARING 6000/C3

0625060001

$13.83

12

Water pump shaft loose

A40035054150

Unavailable

13

DRIVE WHEEL

45235054028

$7.10

14

Ball bearing 696 DDM1 C3

0625006065

$8.50
