Description

Price

1

Seat

A40007040000EB

$155.67

2

Quick lock

45007040051

$20.19

3

Fuel tank

A40007013000

$217.75

4

FILLER CAP CPL. SMALL

49007008044

$23.65

5

Vent hose 5.6 x 10 x 270

78007100270

$2.61

6

Seat holder screw

79107011000

$3.08

7

Fuel tank role

A46007014000

$2.05

8

HH collar screw M6x20 TX30

0025060206

$3.08

9

Fuel cock cmpl.

58507003200

$26.55

10

O-RING 1,78x10,82x14,38 2-013

0770020130

$2.05

11

FUEL HOSE VITON 6X1,5 PER/M

58307016001

Unavailable

12

YDNAC-CLAMP FUEL HOSE (8MM)

45031005000

$1.49

13

Spoiler kit 50 SX 2024

A40008054000ABA

$166.89

14

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

15

Tank adapter

A40007013050

$18.97

16

HH collar screw M6x50 TX30

0025060506

$3.08

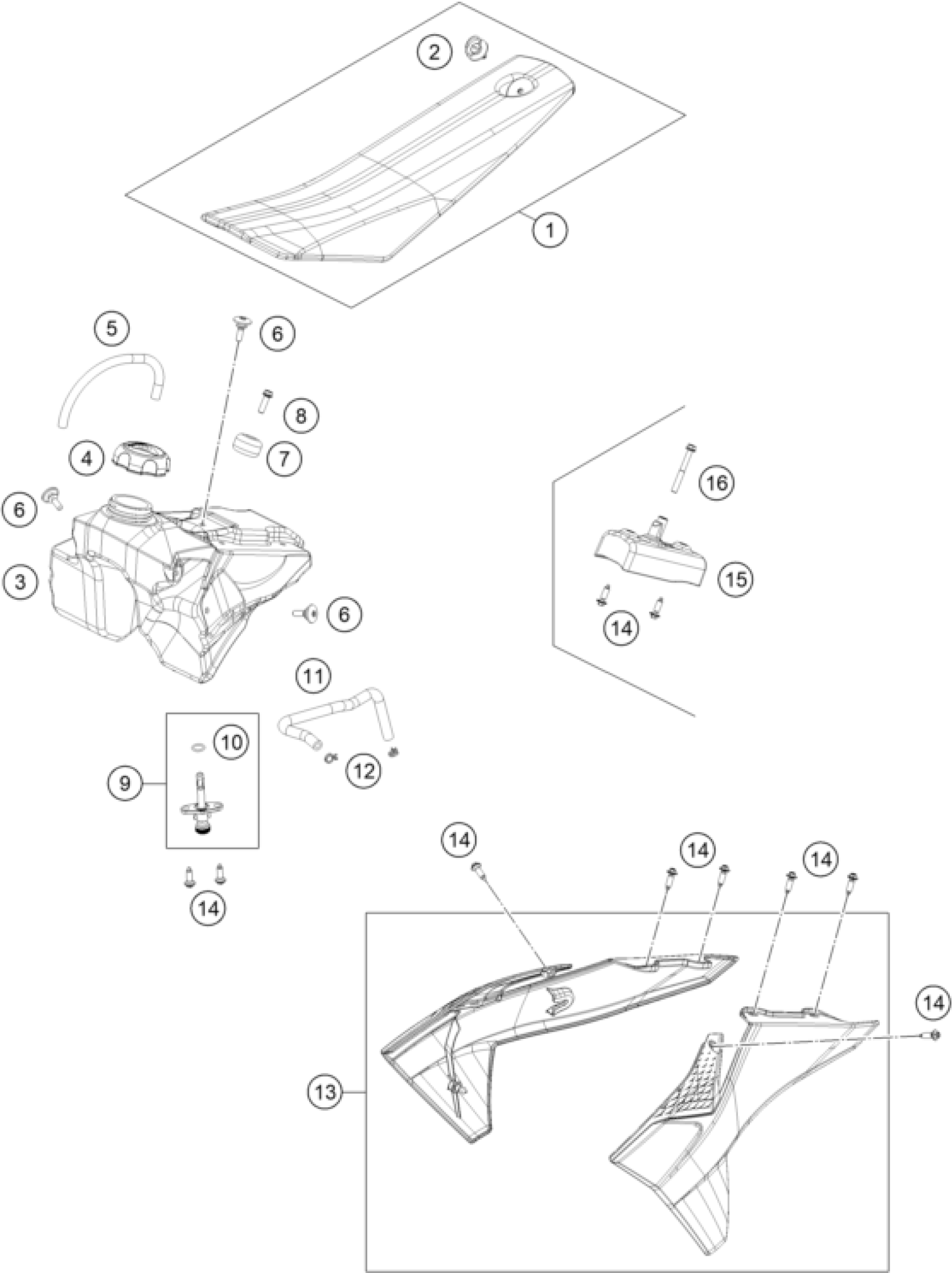

KTM 50 SX 2024 TANK, SEAT Diagram

Seat

Quick lock

Fuel tank

FILLER CAP CPL. SMALL

Vent hose 5.6 x 10 x 270

Seat holder screw

Fuel tank role

HH collar screw M6x20 TX30

Fuel cock cmpl.

O-RING 1,78x10,82x14,38 2-013

FUEL HOSE VITON 6X1,5 PER/M

YDNAC-CLAMP FUEL HOSE (8MM)

Spoiler kit 50 SX 2024

SCREW FOR PLASTIC K60X20 SW6

Tank adapter

HH collar screw M6x50 TX30
