Description

Price

1

Spark plug connector

46239190000

$34.12

2

Spark plug

A40039093010

$4.85

3

Sealing boot

A40539091000

$9.34

4

HH collar screw M6x20 TX30

0025060206S

$2.05

5

Ignition coil

A40039006000

$304.99

6

Stator 50 cc

A40039004000

$205.32

7

Bolt DIN 6912 - M5x25 SS

0012050253S

$1.49

8

Rotor 50 cc

A40039005000

$83.95

9

WASHER 10,4X16,8X0,4

45132020000

$4.11

10

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

11

Ignition cover

A40030002000

$21.31

12

HH collar screw M6x20 TX30

0025060206

$3.08

2

Factory spark plug

A40039993010

Unavailable

13

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

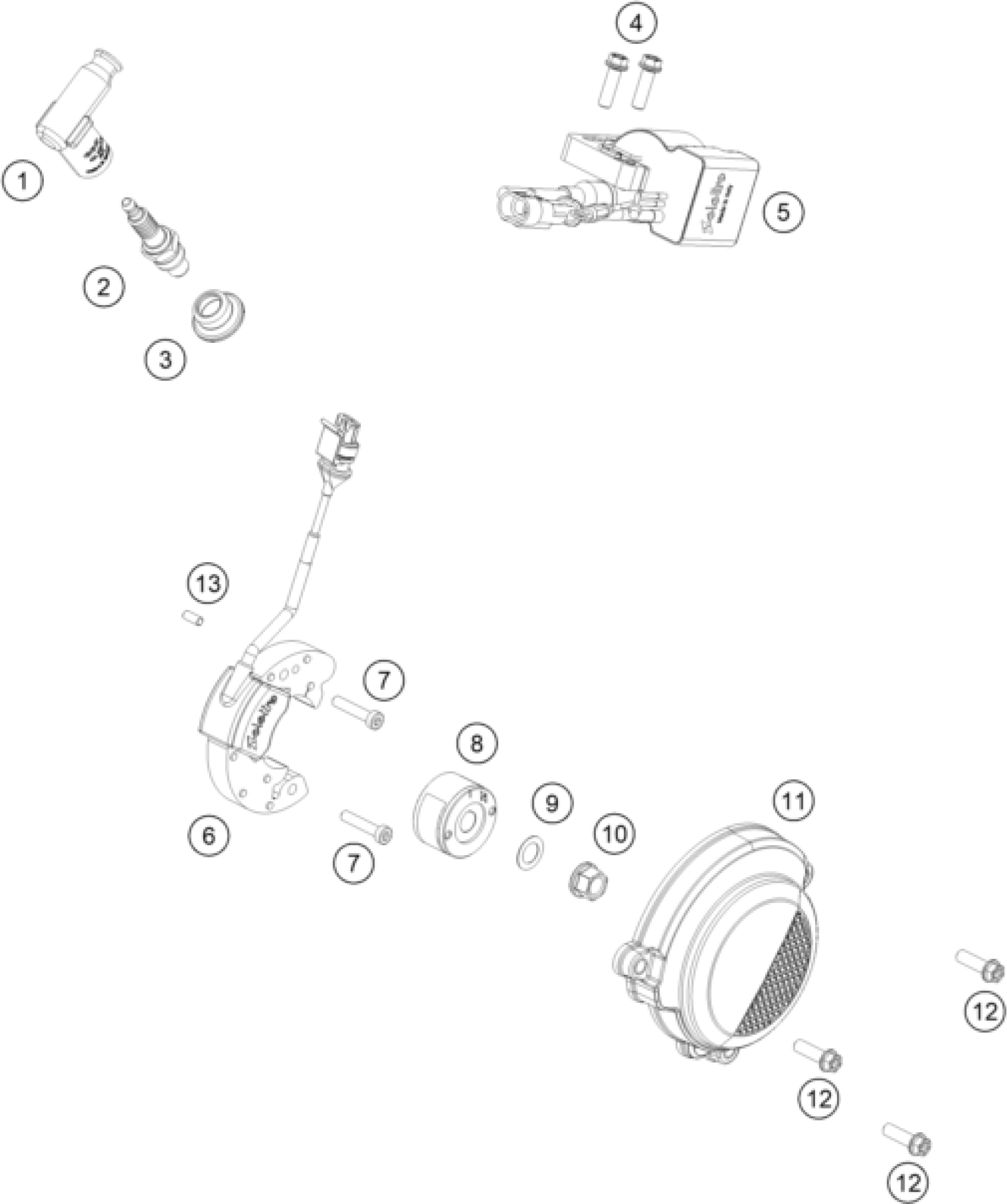

KTM 50 SX 2024 IGNITION SYSTEM Diagram

Spark plug connector

Spark plug

Sealing boot

HH collar screw M6x20 TX30

Ignition coil

Stator 50 cc

Bolt DIN 6912 - M5x25 SS

Rotor 50 cc

WASHER 10,4X16,8X0,4

HH COLLAR NUT M10X1,25 WS=13

Ignition cover

HH collar screw M6x20 TX30

Factory spark plug

Needle roll.DIN5402 NRB 4X9.8
