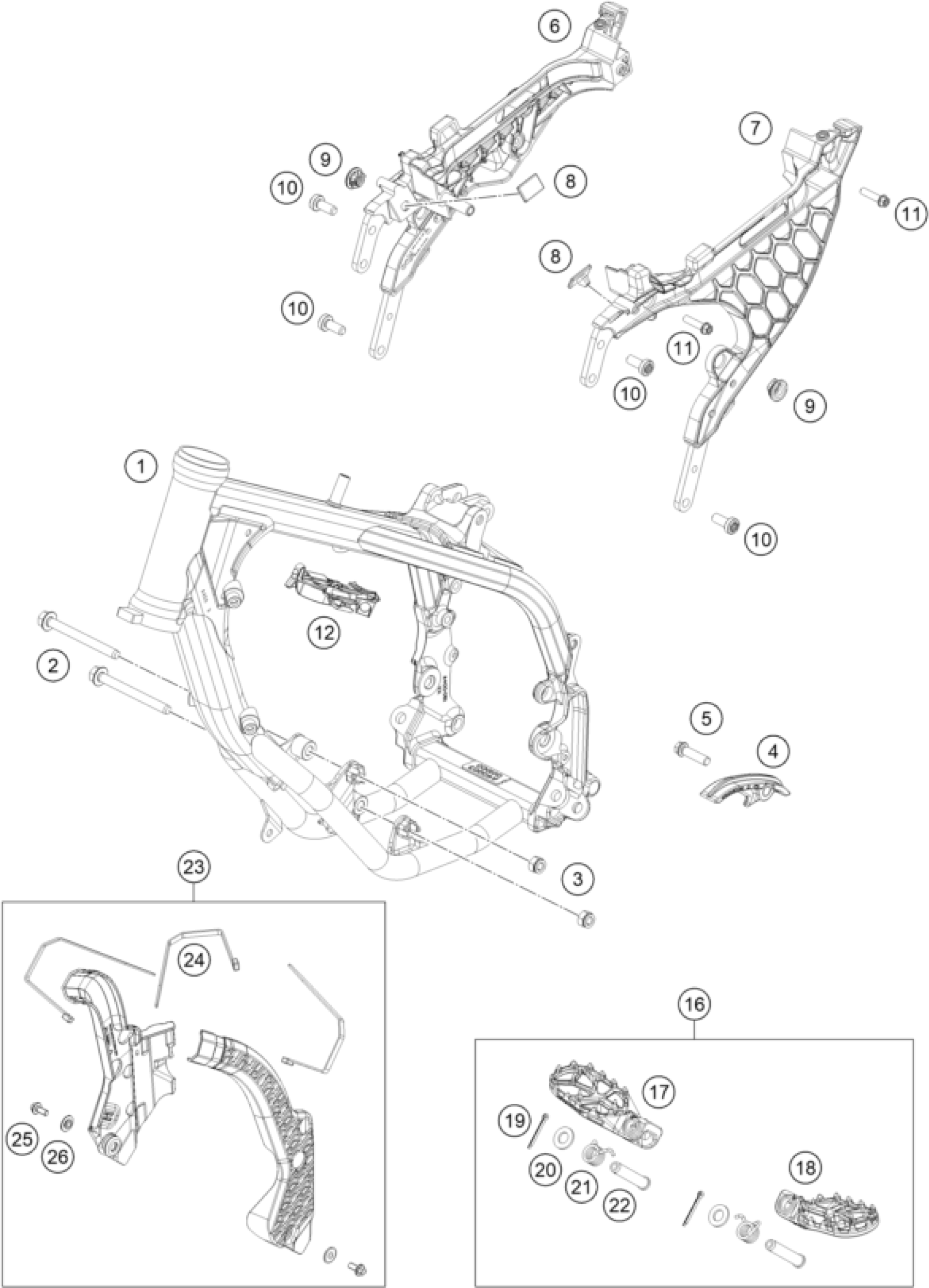

KTM 50 SX 2024 FRAME Diagram

#

Description
Price

1

Frame

A40003001000EB

$468.52

2

Hex screw EN 1665-M8x85-10.9

01665080856

$1.96

3

self-locking nut M8 Cu

51010086100

$3.08

4

Chain slider bottom

45303053000

$10.09

5

HH collar screw M8x35 TX40

0025080356

$4.11

6

Subframe right

A40003002020

$80.03

7

Subframe left

A40003002010

$65.91

8

Isolation pad

77307040041

$2.05

9

quick release rubber grommet

47106003160

$4.11

10

SHCS M8x20 TX45

0035080206S

$5.32

11

HH collar screw M6x25 TX30

0025060256

$3.08

16

Footpeg set

A40003037033

$83.49

17

Footpeg right

A40003041000

$69.93

18

Footpeg left

A40003040000

$69.93

19

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

20

washer DIN 125 A 10.5

0125100003

$2.05

21

Footrest spring right

A46003045000

$1.49

22

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

23

Frame protection set

A40003094000EB

$19.63

24

Cable tie 200/4.6mm black

44011076200

$1.49

25

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

26

Bush f. frame protection 03

54803092060

$4.11

12

Cable bracket

A40011093000

Unavailable
