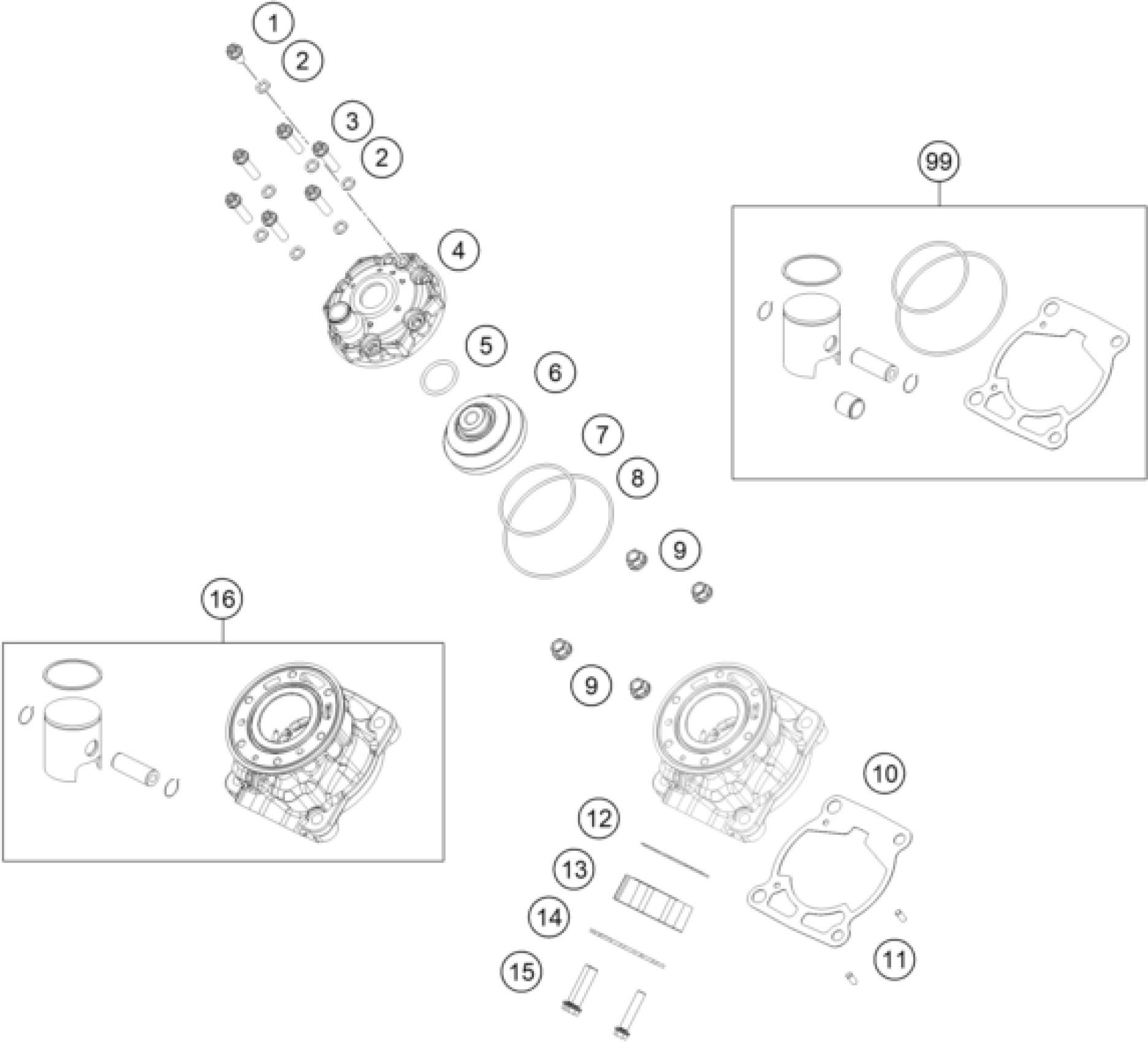

KTM 50 SX 2024 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

HH collar screw M6x10 TX30

0025060106

$3.08

2

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

3

HH collar screw M6x25 TX30

0025060256

$3.08

4

Cylinder head

47230006100

$28.60

5

O-ring 23x2,5 Viton 75SH

0770023025

$1.49

6

Combustion chamber insert

A40030060000

$52.44

7

O-RING 52,00X2,0 VITON 75

0770052020

$7.85

8

O-RING 80,00X2,00 VITON

0770800021

$6.91

9

flanged nut M8 WS10

46030045000

$7.85

10

Cylinder base gasket

A40530035020

Unavailable

10

Cylinder base gasket

A40530035025

Unavailable

10

Cylinder base gasket

A40530035040

Unavailable

10

Cylinder base gasket

A40530035050

Unavailable

10

Cylinder base gasket

A40530035060

Unavailable

11

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

12

EXHAUST FLANGE GASKET

45205004000

$7.56

13

Exhaust flange

45305003000

$24.21

14

BRACKET FOR SPRINGHOLDER

46205003050

$15.33

15

HH collar screw M6x30 TX30

0025060306S

$3.08

16

Cylinder + piston

A40030038000

$496.94

99

piston kit I 50 SX/TC/MC

A40030007010 I

Unavailable

99

piston kit II 50 SX/TC/MC

A40030007010 II

Unavailable

10

Cylinder base gasket

A40530035030

Unavailable
