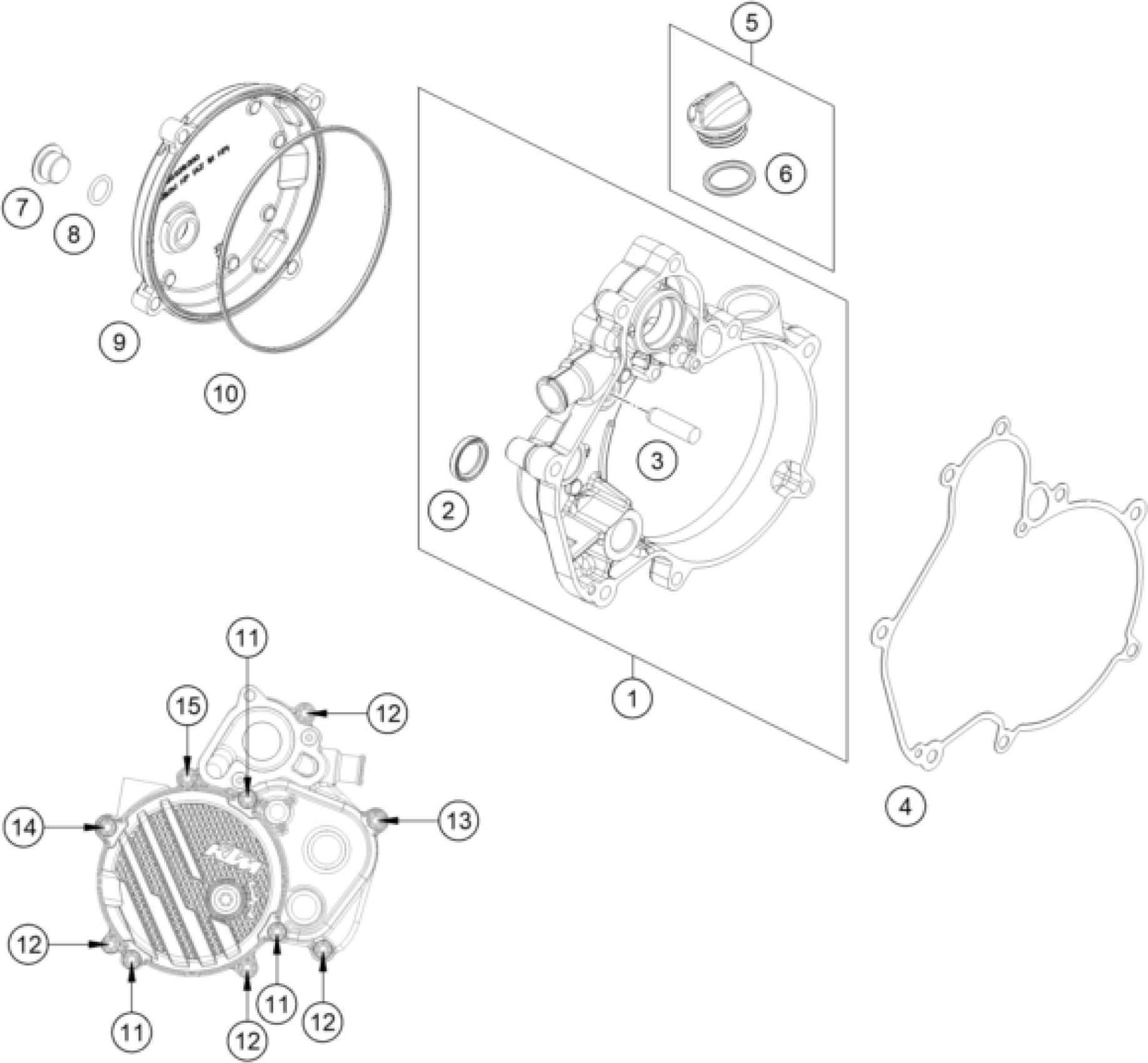

KTM 50 SX 2024 CLUTCH COVER Diagram

#

Description
Price

1

Inner clutch cover cmpl.

A40030001044

$142.95

2

SHAFT SEAL RING BALANC. SHAFT

0760162240

$5.23

3

CYLINDER STUD DIN6325 8X30 M6

0325080300

$2.05

4

Clutch cover gasket int.

A40030025000

$14.30

5

Oil filler cap cmpl. M24x3

79430020033

$8.03

6

O-RING 19,00X3,00 NBR

0770191015

$2.05

7

Plug

0900001409000

$6.91

8

O-RING 11X2 VITON

0770110021

$2.05

9

Outer clutch cover

A40030026000C1

$59.46

10

CLUTCH COVER GASKET

45230027000

$7.56

11

HH collar screw M6x20 TX30

0025060206

$3.08

12

HH collar screw M6x25 TX30

0025060256

$3.08

13

HH collar screw M6x40 TX30

0025060406

$3.08

14

HH collar screw M6x55 TX30

0025060556

$3.08

15

HH collar screw M6x35 TX30

0025060356

$3.08
