Description

Price

1

INT. TORX FLAT HEAD M5X16 8.8

0019050163S

$2.05

2

SPECIAL WASHER FOR M5 03

60008045100

$7.56

3

KICKSTARTER CPL.

45233070044

$110.04

4

SHAFT SEAL RING BALANC. SHAFT

0760162240

$5.23

5

WASHER 16,3X25,8X1

45233058000

$4.11

6

Kickstarter shaft

45233050100

$55.72

7

WASHER 8,2X16X1

45233057000

$4.11

8

KICKSTARTER SPRING

45233054000

$6.75

9

CYLINDER STUD DIN6325 8X20 M6

0325080200

$2.05

10

KICKSTARTER SHAFT

45233053000

$102.65

11

SPRING RATCHET GEAR

45233056100

$5.23

12

stop gear

45233052116

$24.49

13

CYLINDER STUD DIN6325 8X30 M6

0325080300

$2.05

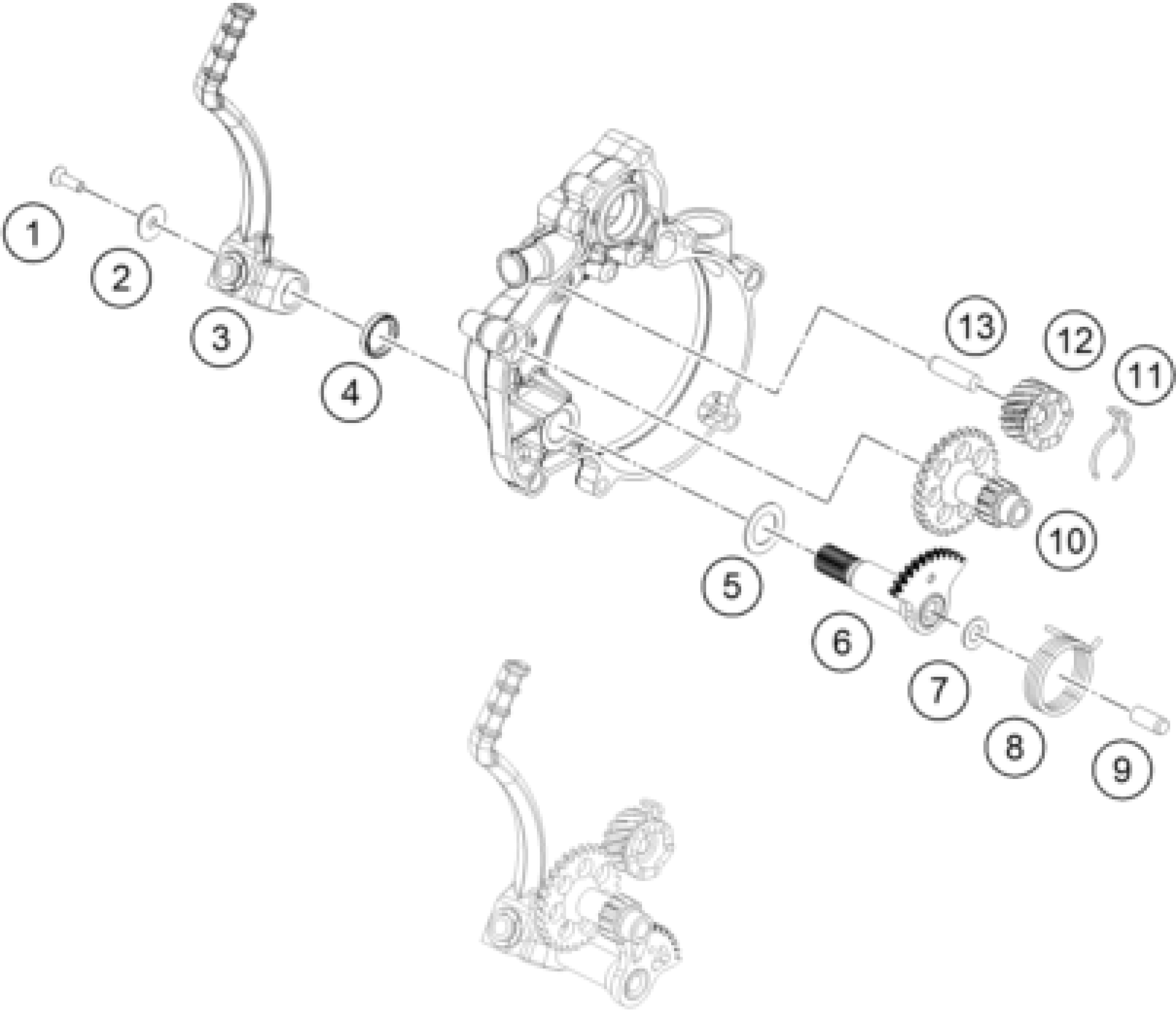

KTM 50 SX 2019 KICK STARTER Diagram

INT. TORX FLAT HEAD M5X16 8.8

SPECIAL WASHER FOR M5 03

KICKSTARTER CPL.

SHAFT SEAL RING BALANC. SHAFT

WASHER 16,3X25,8X1

Kickstarter shaft

WASHER 8,2X16X1

KICKSTARTER SPRING

CYLINDER STUD DIN6325 8X20 M6

KICKSTARTER SHAFT

SPRING RATCHET GEAR

stop gear

CYLINDER STUD DIN6325 8X30 M6
