Description

Price

1

Frame 453T3

45303001400EB

$1,078.98

2

Self locking nut M8 10.9

54310086200

$3.08

3

HH collar screw M8x65 TX40

0025080656

$4.11

4

Chain slider bottom

45303053000

$10.09

7

HH collar screw M8x30

0025080306

$3.08

8

FOOTREST CPL. 14

47103040033

$110.13

9

FOOTREST L/S

47103040000

$43.84

10

FOOTREST R/S

47103041000

$42.72

11

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

12

FOOTREST SPRING L/S & R/S

54603041000

$5.23

13

washer DIN 125 A 10.5

0125100003

$2.05

14

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

15

HOUR METER KTM

78112920000

$56.09

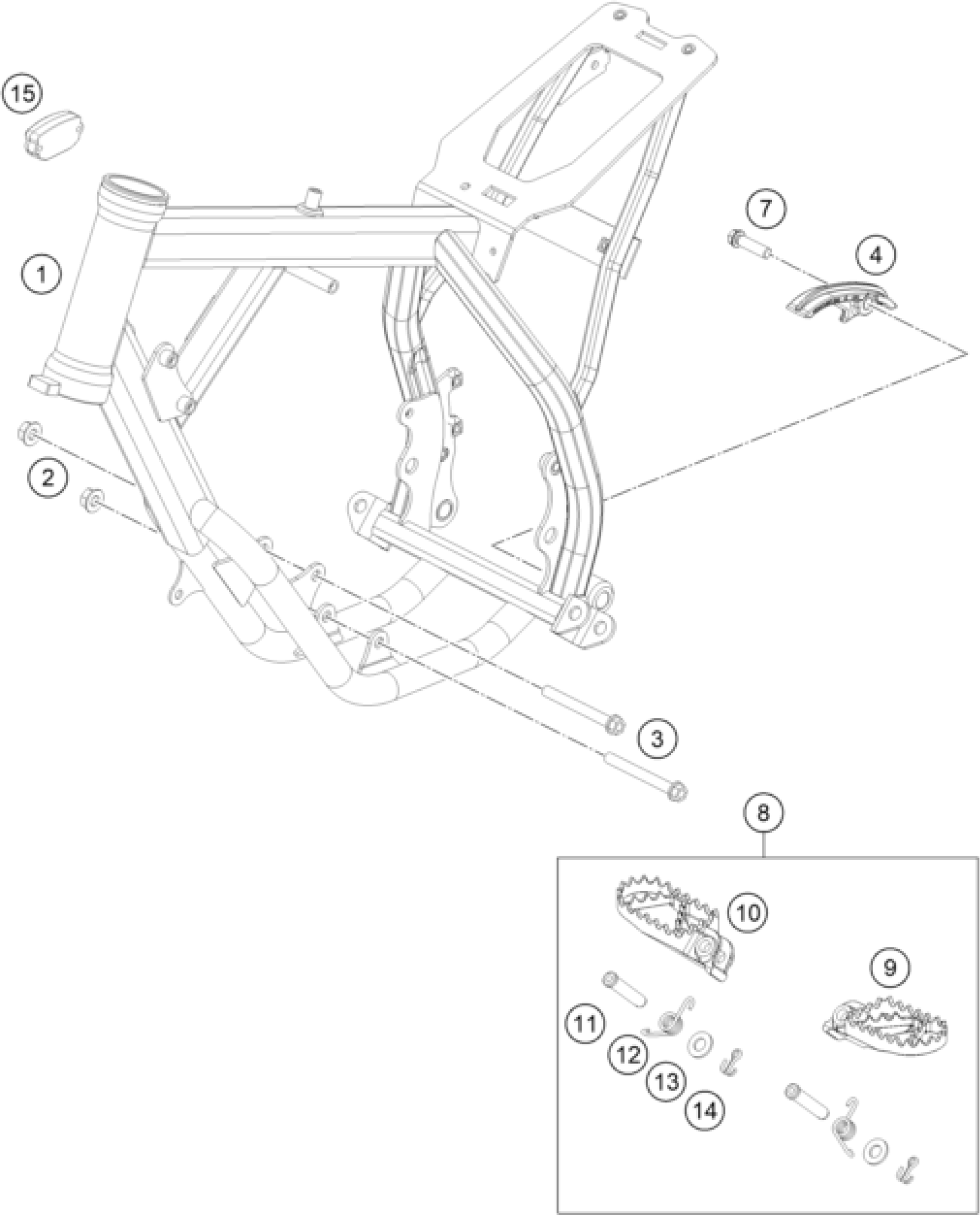

KTM 50 SX 2019 FRAME Diagram
