CARBURETOR

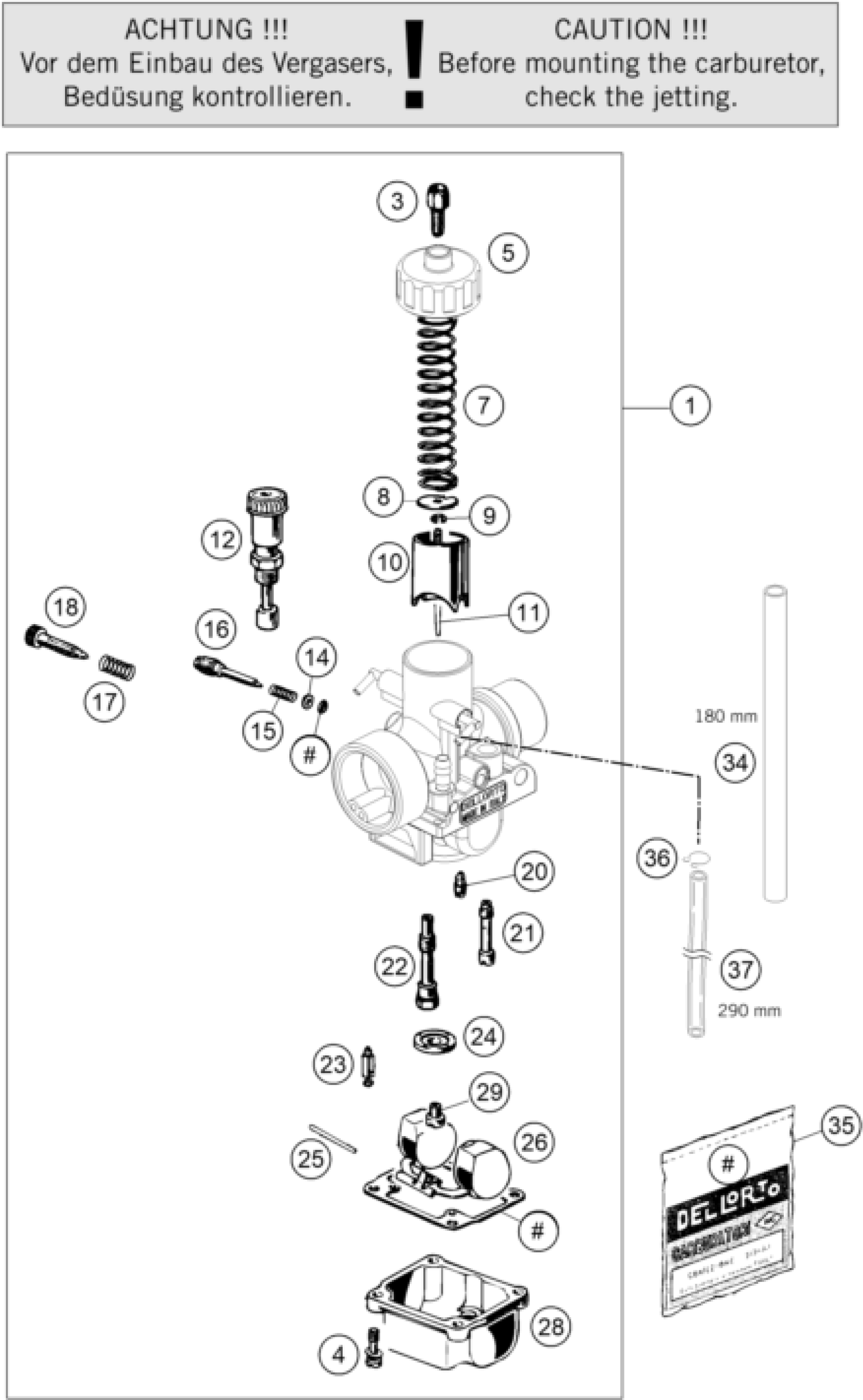

KTM 50 SX 2019 CARBURETOR Diagram
#
1
Carburetor PHBG 19 BS
45231101000
$338.56
3
ADJUSTMENT SCREW M6X0,75
57031525000
$5.23
4
HH COLLAR SCREW M 4X16 WS=6
0016040163
$2.05
5
Carburetor Cover
45231027000
$19.07
7
SPRING DELLORTO
45131030000
$3.08
8
RETAINING SPRING DELLORTO
45131109000
$3.08
9
TAB WASHER DIN6799-RS 2,5
0799025055
$3.08
10
THR. VALVE DELLO.19 60 2001
45131035000
Unavailable
10
THR. VALVE DELLO.40 2008
45131035040
Unavailable
11
JET NEEDLE W7
45131034007
$17.76
11
JET NEEDLE W9
45131034009
Unavailable
12
STARTING BUTTON DELLORTO 19
45131048000
$42.16
14
WASHER 3,3 X 5,8 X 0,5
57031572000
$2.05
15
SPRING DELLORTO
45131015000
$2.05
16
AIR ADJUST SCREW DELLORTO
45131017000
$6.35
17
SPRING
45131518000
$4.11
18
IDLE ADJUST SCREW
45131019000
$7.00
20
IDLING JET 45 DELLORTO
45131007045
Unavailable
20
IDLING JET 48 DELLORTO
45131007048
Unavailable
20
IDLING JET 50 DELLORTO
45131007050
Unavailable
20
IDLING JET 52 DELLORTO
45131007052
Unavailable
20
IDLING JET 55 DELLORTO
45131007055
Unavailable
20
IDLING JET 58 DELLORTO
45131007058
Unavailable
21
START JET 60 DELLORTO
45131051060
$10.93
22
NEEDLE JET 260
45131021260
Unavailable
22
NEEDLE JET 262
45131021262
Unavailable
23
FLOATING NEEDLE VALVE DELLORTO
45131020000
$8.69
24
COVER DELLORTO
45131074000
$5.32
25
PIN DELLORTO
45131008000
$2.05
26
FLOAT 4 GR.
45131009000
$56.00
28
FLOAT BOWL DELLORTO 19
45131011000
$8.69
29
MAIN JET 80 DELLORTO
15131123080
Unavailable
29
MAIN JET 85 DELLORTO
15131123085
Unavailable
29
MAIN JET 90 DELLORTO
15131123090
Unavailable
29
MAIN JET 95 DELLORTO
15131123095
Unavailable
34
FUEL HOSE VITON 6X1,5 PER/M
58307016001
Unavailable
35
GASKET SET DELLORTO 19
45131099000
$20.66
36
Clamp 6mm
54531696000
$3.08
37
PVC-HOSE 4X6MM
31007007101
Unavailable
