ENGINE CASE

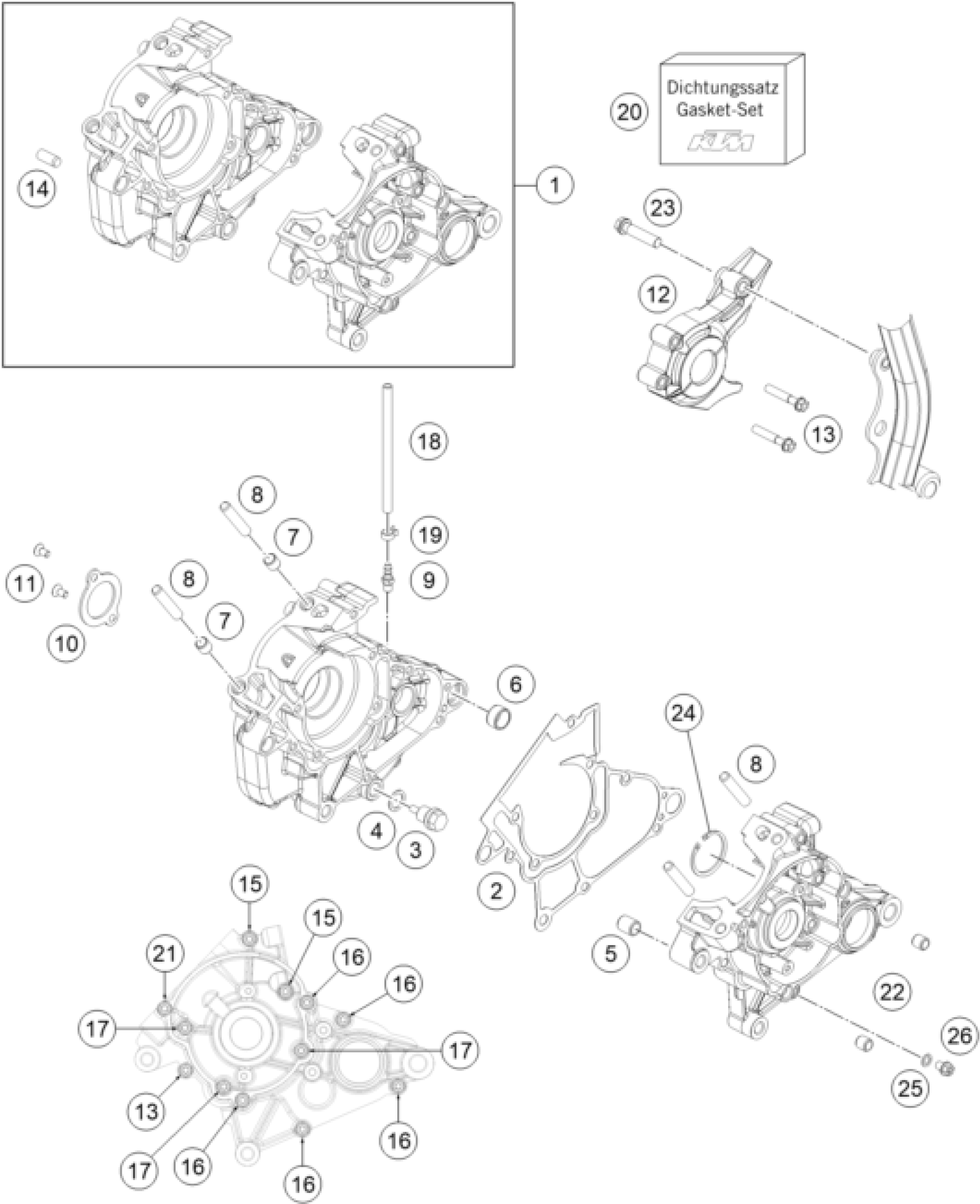

KTM 50 SX 2018 ENGINE CASE Diagram
#
Description
Price
1
ENGINE CASE CPL. 50SX
45230000333
$453.56
2
ENGINE CASE GASKET
45230039000
$15.70
3
OILDRAIN PLUG W.MAG. M 12X1,5
58030021000
$11.30
4
CU-seal ring DIN7603-12X18X1.5
58038022000
$2.05
5
DOWEL 12X9X14,5
46230024000
$6.44
6
DOWEL 17 X 14 X 9,5
58330023000
$5.51
7
DOWEL 10X8,2X10
46230023000
$5.23
8
STUD M8X41
46030043000
$5.79
9
VACUUM CONECTION M6/3MM '97
58336020190
$5.23
10
BEARING BRACKET
45230017000
$2.05
11
hex lobe countersunc screw M5x
0019050106S
$2.05
12
CHAIN GUARD
45230060000
$24.86
13
HH collar screw M6x30 TX30
0025060306
$3.08
14
CYLINDER STUD DIN6325 8X20 M6
0325080200
$2.05
15
HH collar screw M6x55 TX30
0025060556
$3.08
16
HH collar screw M6x30 TX30
0025060306
$3.08
17
HH collar screw M6x40 TX30
0025060406
$3.08
18
PVC-HOSE 4X6MM
31007007101
Unavailable
19
YDNAC-CLAMP 10068 (6,8MM)
45230089000
$1.49
20
GASKET SET 50 SX 2009
45230099000
$126.40
21
HH collar screw M6x20 TX30
0025060206
$3.08
22
DOWEL 9,8X7X5.5
45230024000
$3.08
23
HH collar screw M8x30
0025080306
$3.08
24
CIRCLIP DIN0472-35X1,5
0472035150
$2.05
25
CU-SEAL RING DIN7603-6X10X1
0603061001
$2.05
26
HH collar screw M6x8 TX30
0025060086
$2.05
