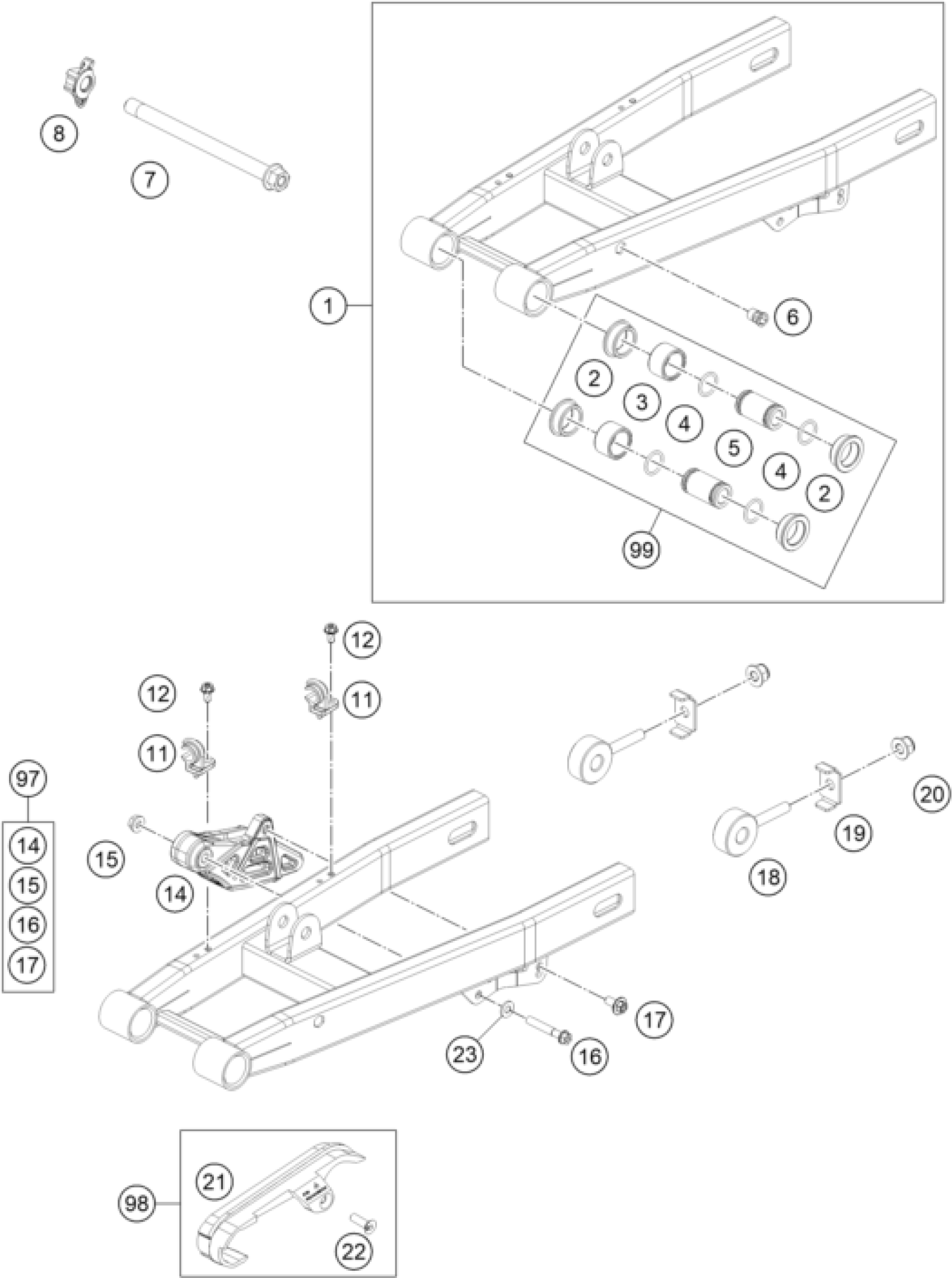

KTM 50 SX 2017 SWING ARM Diagram

CHAIN GUIDE KIT MINI

46304070044

$34.68

SWING ARM CPL. 50 SX 2016

4530403004491

$318.30

Spacer bushing 20X26X30X9.7

46004030070

$3.08

Bearing bush 12x20x36.5

46004030071

$17.85

BLIND RIVET THREAD M6 STE. 4MM

55003139900

$2.05

SWING ARM BOLT CPL. 2004

45103014144

$10.93

Nut with anti-rotation lock

45404038000

$24.86

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

CHAIN GUIDE

46304070000

$41.32

Self locking nut M6 - 10

56509064100

$2.05

HH collar screw M6x40 TX30

0025060406

$3.08

HH collar screw M6x13 TX30

0024060136

$3.08

Needle bushing HK 2016 / 20x26

54603097000

$15.04

O-ring 16x2 Viton 75

0770160021

$3.08

CHAIN ADJUSTER

45010083000

$14.11

SUPPORTING BRACKET

45010083060

$6.63

STOP NUT DIN6926 M8 SS

0926080003

$1.49

CHAIN SLIDING GUARD

45204066000

$17.85

Flat head screw DIN7991 M6X20

0991060202

$2.05

WASHER DIN0125-A 6,4

0125060003

$1.49

CHAIN GUARD KIT 50 SX

45204066010

$17.57

SWINGARM REP. KIT 50/65 SX

45204230010

$65.82
