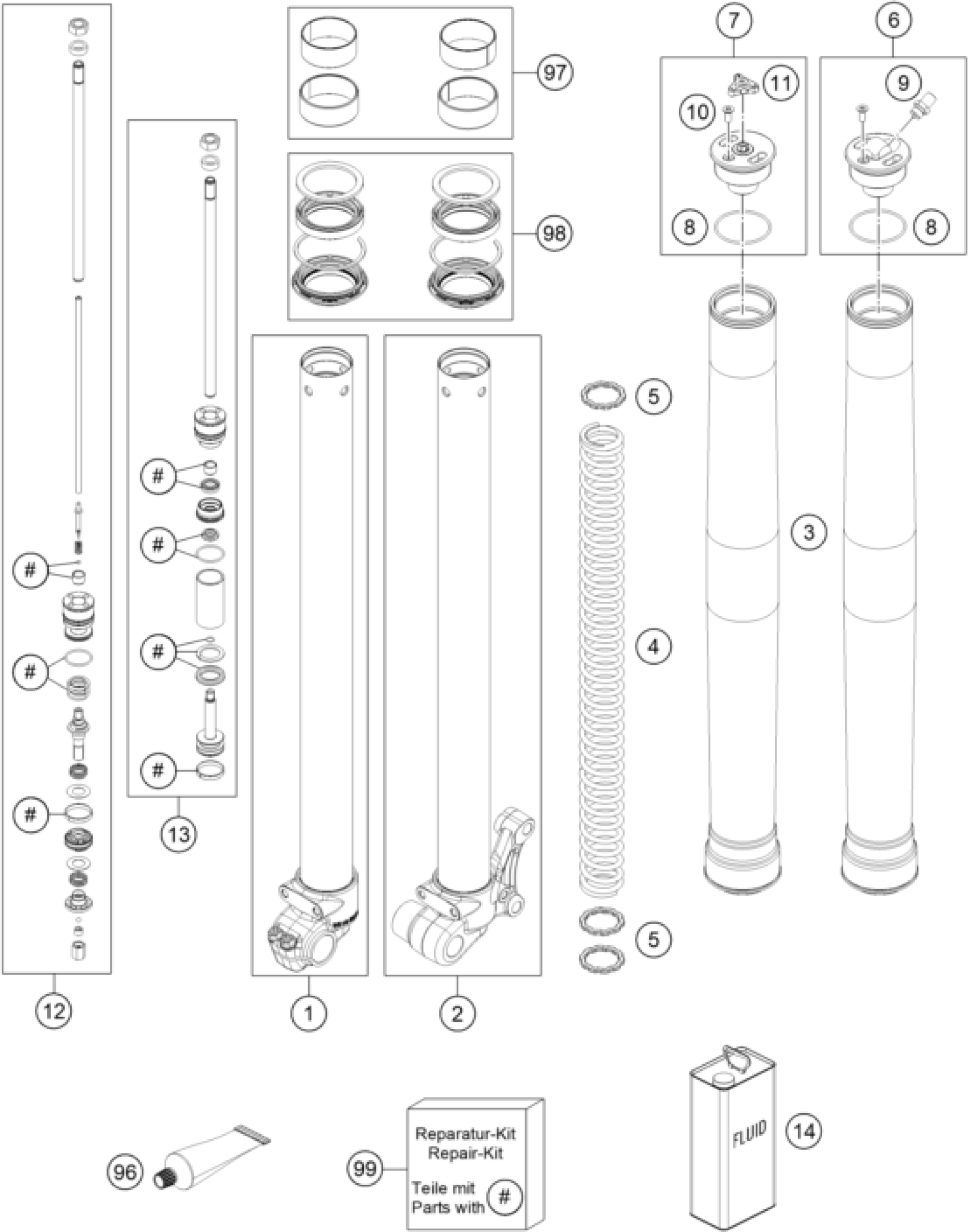

KTM 50 SX 2017 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

AXLE CLAMP R/S CPL. W. TUBE

35480455S3

$326.87

2

AXLE CLAMP L/S CPL. W. TUBE

35480456S2

$332.01

3

Fork outer tube 36x425 dt44 db

35480556

$211.11

4

SPRING 2.0N/MM SET D=3.1MM

95010051S

$130.89

5

Washer 22x30x2,5

35480497

$1.49

6

SCREW CAP M38X1,5 AIR CPL.

35480548S

$124.81

7

SCREW CAP M38X1,5 AIR REBOUND

35480507S1

$71.95

8

O-ring 35x1,5 NBR70 yellow

46180581

$2.05

9

Schrader valve M8x1 cmpl.

48601494S

$24.98

10

ISA countersunk head screw M4x

00600003

$1.49

11

ADJUSTER REB. RED CPL.

48601118S

$3.64

12

PISTON ROD SX 50 CPL. RIGHT

35480551S2

$422.42

13

PISTON ROD SX 50 CPL. LEFT

35480551S3

$357.13

14

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

97

BUSHING KIT 35MM

RP10006

Unavailable

98

GASKET KIT 35MM RED

RP10007

Unavailable

99

REPAIR KIT 50+65SX AIR 2017

RP10008

Unavailable

96

special grease AER Fork 400g

00062010053

$84.61
