Description

Price

1

CIRCLIP DIN0471-15X1

0471150010

$2.05

2

SPROCKET 11 T.

45233029011

Unavailable

2

SPROCKET 10 T.

45233029010

Unavailable

3

Spacer socket f. sprocket

45233030000

$14.11

4

O-RING 15,00X1,80

0770015018

$2.05

5

SHAFT SEAL RING 22X32X7 BSL

0760223270

$8.50

6

BALL BEARING 15X35X11

45133028000

$22.34

7

COUNTER SHAFT

45233010200

$140.71

8

MAIN SHAFT

45233001200

$87.32

9

needle sleeve HK 1412 14x20x12

54632095000

$7.00

10

SHCS M8x20 TX45

0035080206S

$5.32

11

WASHER DIN 6340 8,4X23X4

0340084234

$1.49

99

COUNTER SHAFT REP. KIT 50 SX

00050000948

Unavailable

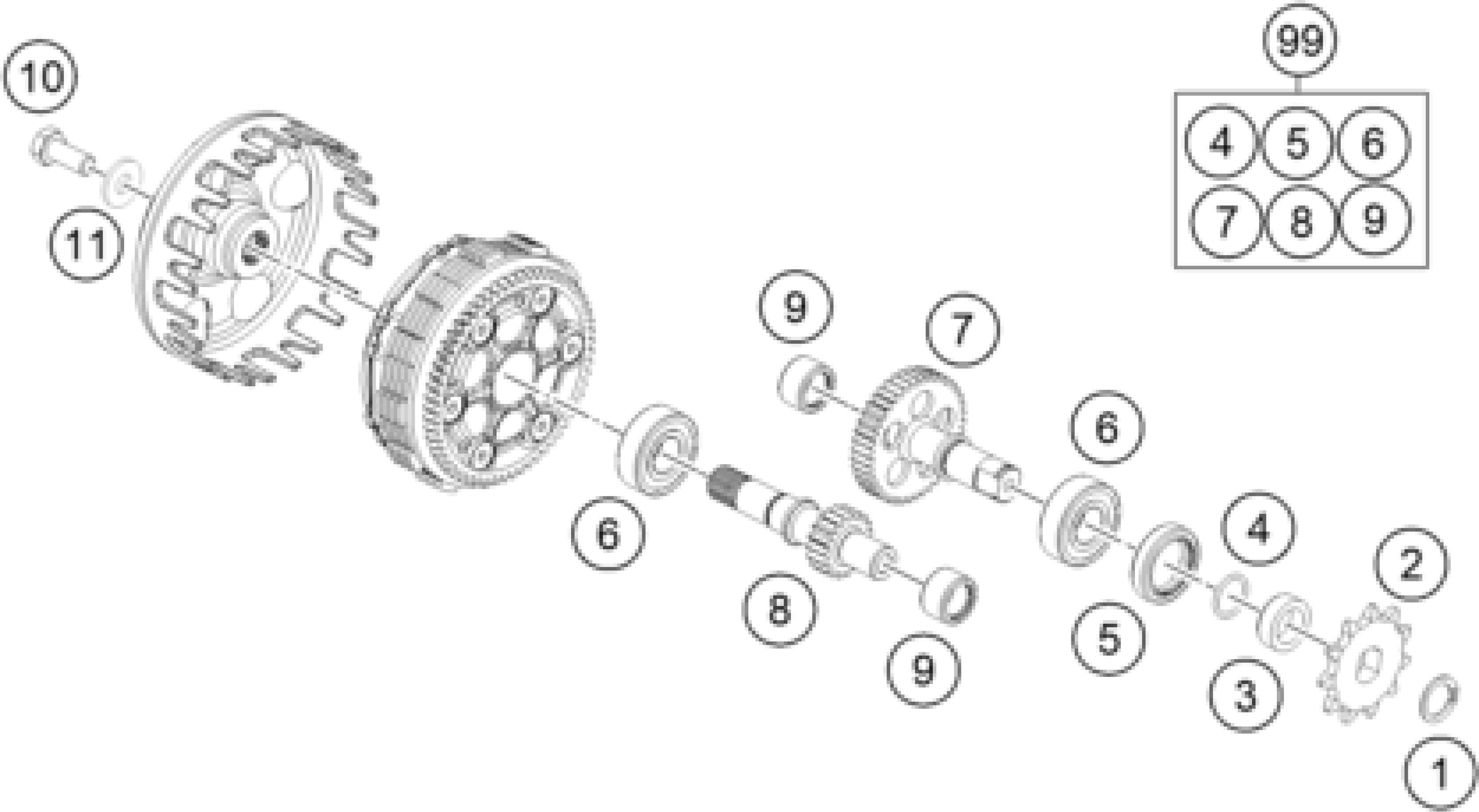

KTM 50 SX 2014 TRANSMISSION Diagram

CIRCLIP DIN0471-15X1

SPROCKET 11 T.

SPROCKET 10 T.

Spacer socket f. sprocket

O-RING 15,00X1,80

SHAFT SEAL RING 22X32X7 BSL

BALL BEARING 15X35X11

COUNTER SHAFT

MAIN SHAFT

needle sleeve HK 1412 14x20x12

SHCS M8x20 TX45

WASHER DIN 6340 8,4X23X4

COUNTER SHAFT REP. KIT 50 SX
