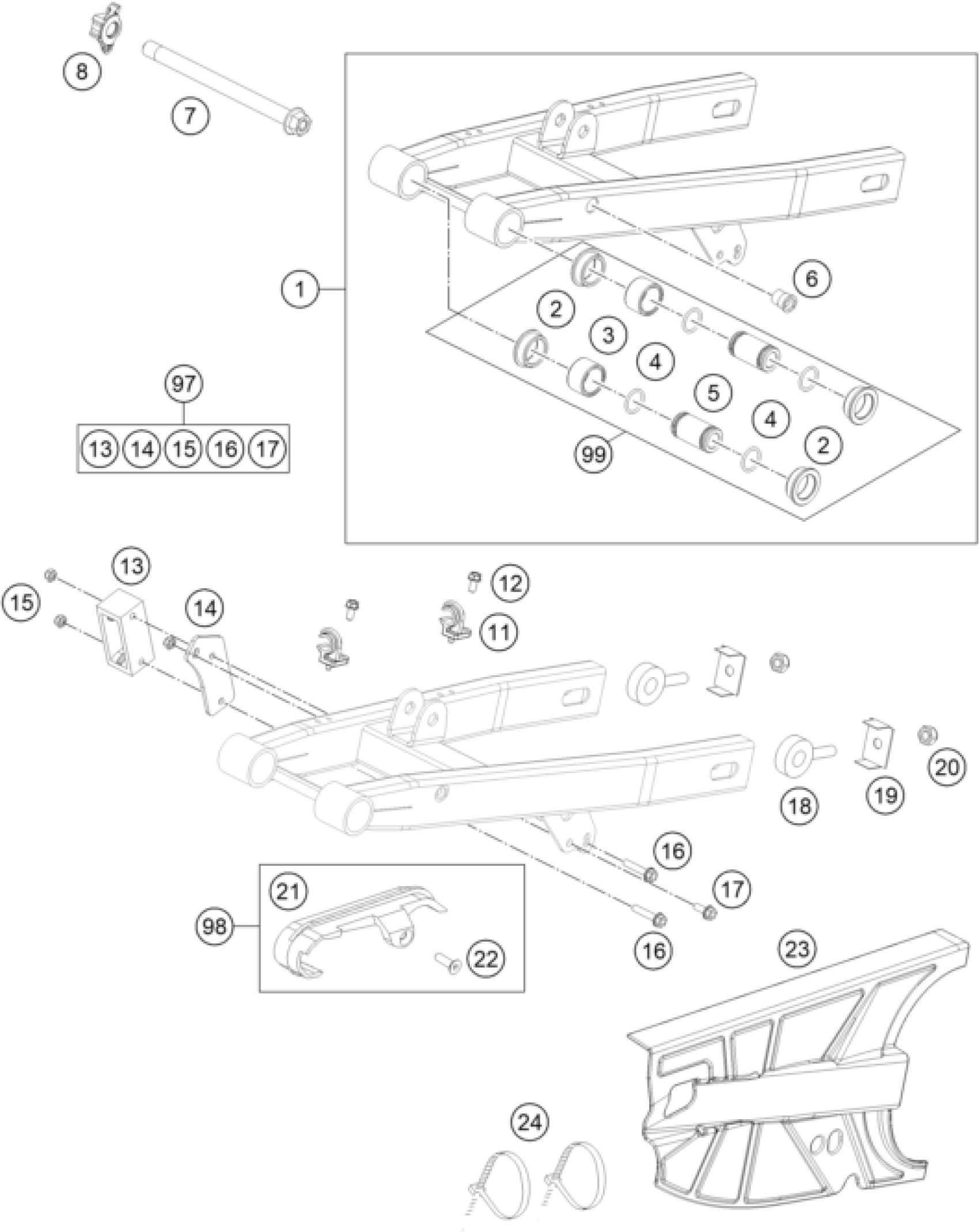

KTM 50 SX 2013 SWING ARM Diagram

SWING ARM CPL. 50SX 09(MB9S)

45204030033

$339.88

Spacer bushing 20X26X30X9.7

46004030070

$3.08

Needle bushing HK 2016 / 20x26

54603097000

$15.04

O-ring 16x2 Viton 75

0770160021

$3.08

Bearing bush 12x20x36.5

46004030071

$17.85

BLIND RIVET THREAD M6 STE. 4MM

55003139900

$2.05

SWING ARM BOLT CPL. 2004

45103014144

$10.93

Nut with anti-rotation lock

45404038000

$24.86

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

CHAIN GUIDE REAR

45004070000

$10.37

BRACKET FOR CHAIN GUARD 02

45104170000

$9.44

Self locking nut DIN 985 M5

0985050003

$2.05

HH COLLAR SCREW M5X30 TX30

0025050306

$2.05

HH collar screw M5x12 TX30

0025050126

$3.08

CHAIN ADJUSTER

45010083000

$14.11

SUPPORTING BRACKET

45010083060

$6.63

SELF LOCKING NUT DIN0985-M 8

0985080003

$2.05

CHAIN SLIDING GUARD

45204066000

$17.85

Flat head screw DIN7991 M6X20

0991060202

$2.05

CHAINGUARD JUNOIR 08

45104061000

$10.37

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

CHAIN GUIDE KIT MINI 04-11

45104070044

$22.81

CHAIN GUARD KIT 50 SX

45204066010

$17.57

SWINGARM REP. KIT 50/65 SX

45204230010

$65.82
