Description

Price

3

BALL CAGE ASSEMBLY

45232139044

$159.32

4

CLUTCH DISC KIT

45232110033

$161.19

13

NEEDLE BEARING 18X24X12A

0402182412

$8.87

5

SHCS M8x20 TX45

0035080206S

$5.32

6

BALL D=11MM

0401110000

$2.05

7

PRESSURE PLATE

45232103000

$37.58

8

FL.HEAD SCR.DIN7991-M6X16 10.9

0991060166S

$1.49

14

INNER RING WITH COLLAR

45232013000

$20.94

10

WASHER DIN 6340 8,4X23X4

0340084234

$1.49

12

STOP DISK 14X30X1,5 STEEL

75034050000

$4.11

1

AXIAL CLUTCH ASSEMBLY

45232100044

$817.28

2

CLUTCH BASKET

45232101000

$58.90

9

CLUTCH SPRING 15,9MM

45232105000

$4.11

15

FL.HEAD SCR.DIN7991-M6X16 10.9

09910601661S

$1.49

9

CLUTCH SPRINGS 15.9MM HARD

45232105100

Unavailable

11

FIT BOLT

45232107000

$88.35

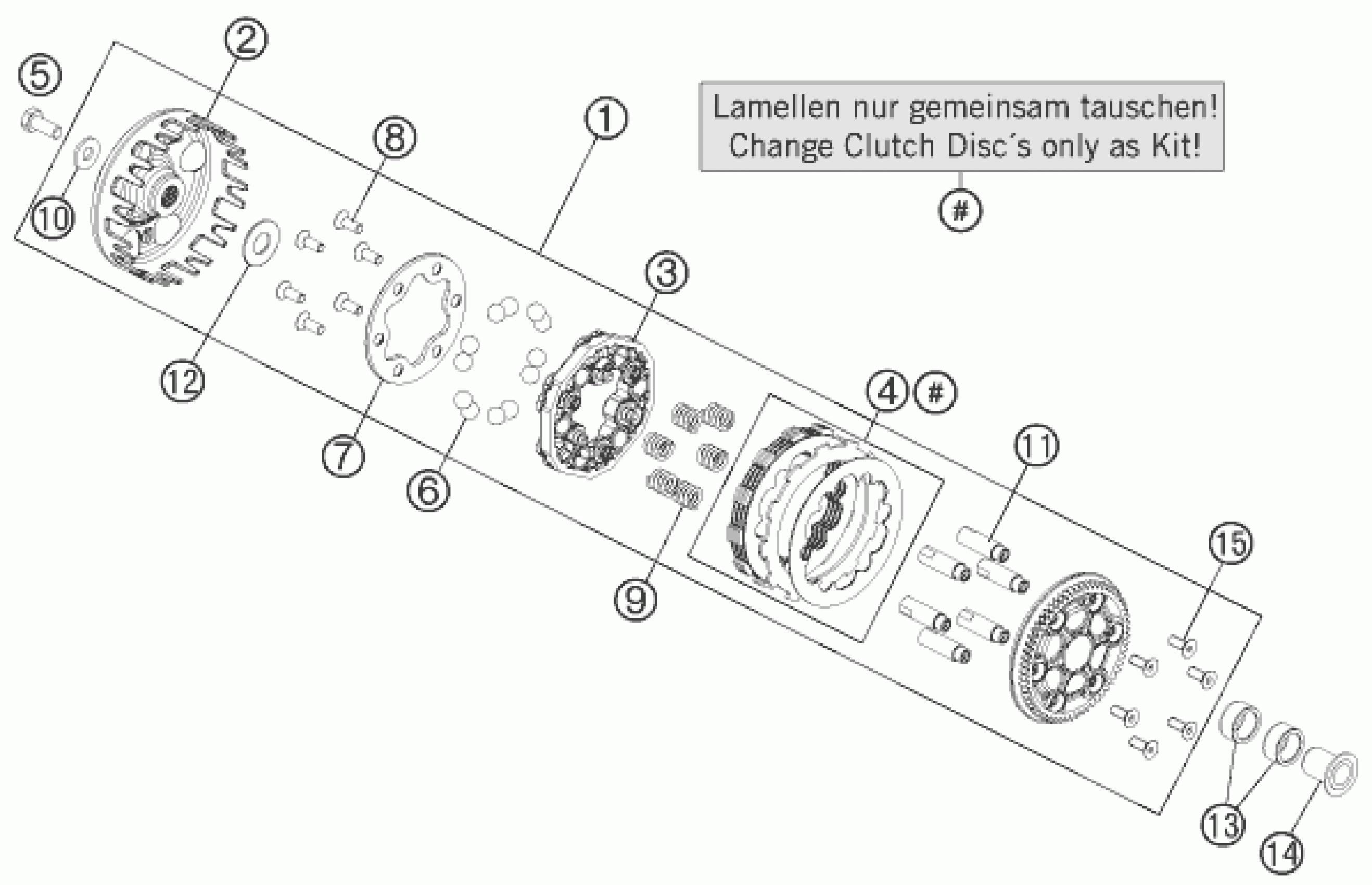

KTM 50 SX 2013 CLUTCH Diagram

BALL CAGE ASSEMBLY

CLUTCH DISC KIT

NEEDLE BEARING 18X24X12A

SHCS M8x20 TX45

BALL D=11MM

PRESSURE PLATE

FL.HEAD SCR.DIN7991-M6X16 10.9

INNER RING WITH COLLAR

WASHER DIN 6340 8,4X23X4

STOP DISK 14X30X1,5 STEEL

AXIAL CLUTCH ASSEMBLY

CLUTCH BASKET

CLUTCH SPRING 15,9MM

FL.HEAD SCR.DIN7991-M6X16 10.9

CLUTCH SPRINGS 15.9MM HARD

FIT BOLT
