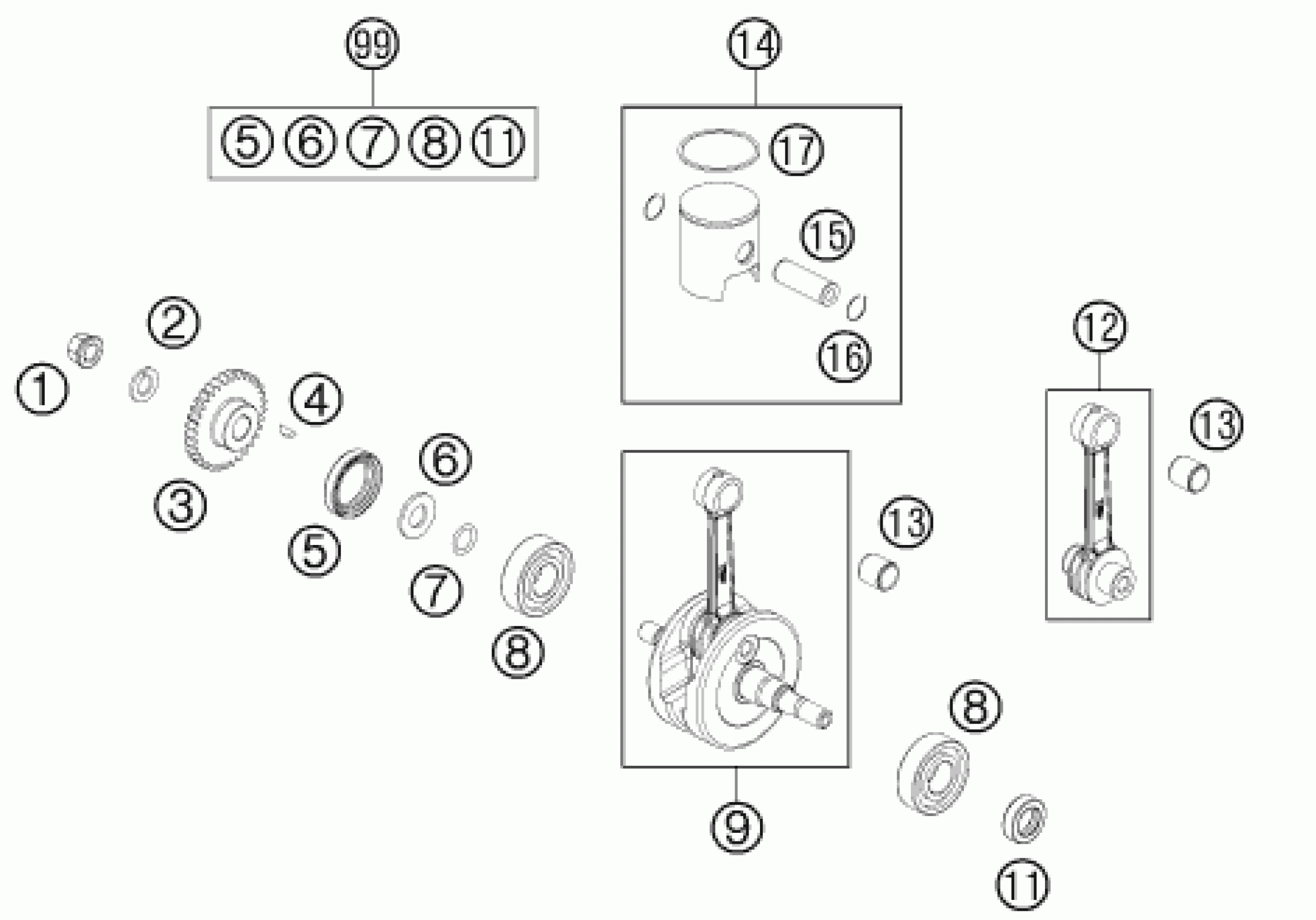

KTM 50 SX 2012 CRANKSHAFT, PISTON Diagram

CRANKSHAFT REP. KIT 50 SX 13

00050002313

Unavailable

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

LOCKING RING VSK 10

45230072000

$2.05

PRIMARY DRIVE 33T

45232023033

$130.05

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

SHAFT SEAL RING 26X35X6BSL NB

0760263561

$6.26

SPACER WASHER - CRANKSHAFT

45230016000

$5.32

O-RING 12,00X2,00 NBR 70

0770120020

$2.05

BALL BEARING 6203 JR2 C3

0625062035

$14.48

CRANKSHAFT CPL.

45230018000

$429.44

SHAFT SEAL RING 15X24X7 A-DUO

0760152472

$15.04

CONROD REPAIR KIT 09

45230015000

$275.07

NEEDLE BEAR.PISTONPIN 12X15X15

45130034000

$15.42

PISTON CPL. I 2009

45230007000 I

$124.25

PISTON CPL. II 2009

45230007000 II

$124.25

PISTON BOLT 09

45230033000

$9.34

CIRCLIP 09

45230074000

$2.05

PISTONRING 09

45230030000

$55.06
