REAR WHEEL

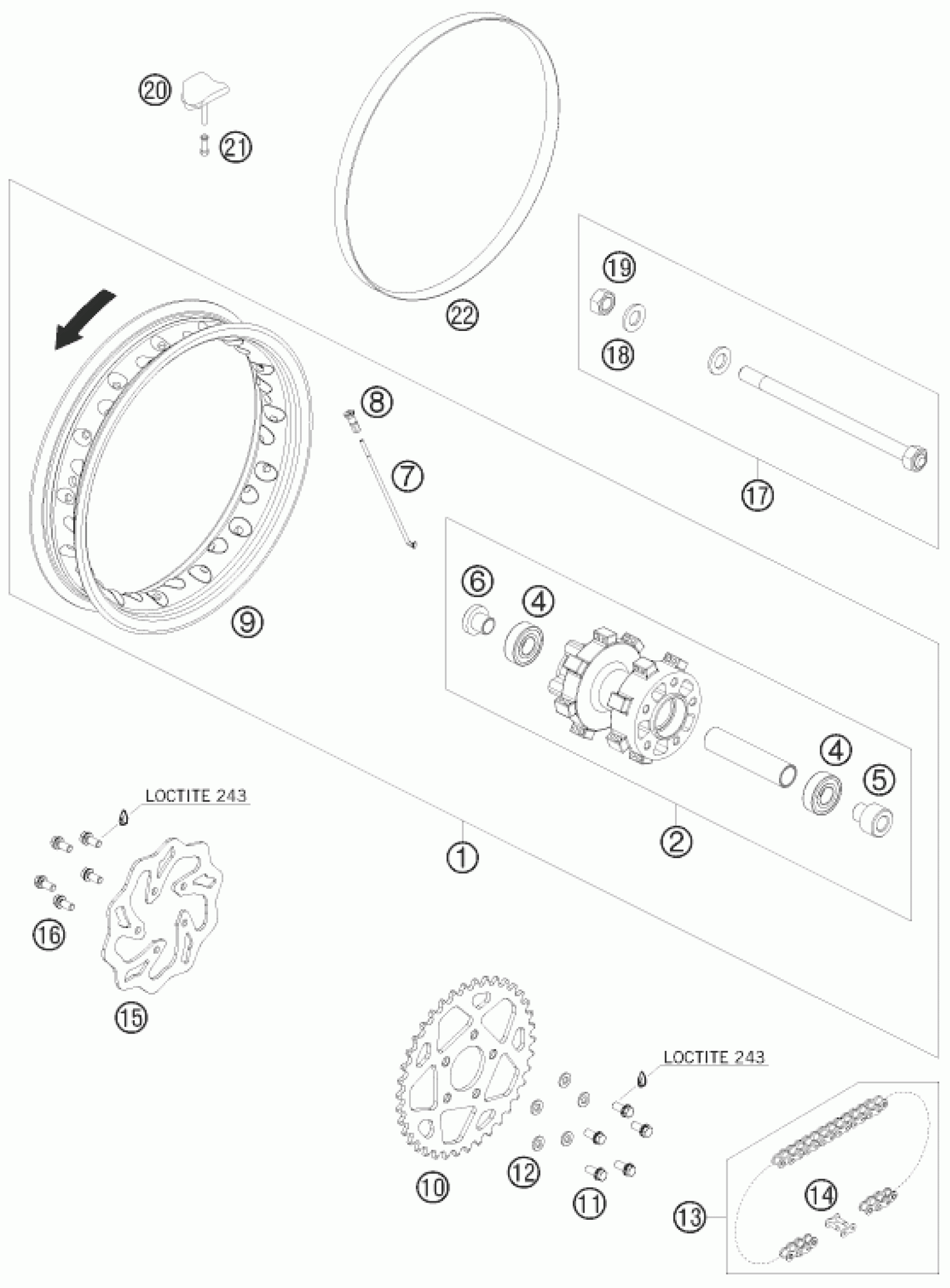

KTM 50 SX 2009 REAR WHEEL Diagram
#
Description
Price
1
REAR WHEEL 50 SX 2009
45210001044
$406.90
2
REAR WHEEL HUB CPL. 2004
45110010144
$211.24
4
BALL BEARING 6202-2RSH/C3
0625062028
$14.11
5
DISTANCE SLEEVE L/S
45110014000
$13.36
6
DISTANCE SLEEVE R/S
45110013000
$13.46
7
SPOKE 3X111 C.166°
45210071111
$3.08
8
SPOKE NIPPLE 3MM
45109072000
$2.05
9
REAR RIM 10''X1,6 BLACK 200
4521007000030
$121.54
10
SPROCKET 38-T 50 SX 2009
45210051038
Unavailable
10
SPROCKET 39-T 50 SX 2009
45210051039
Unavailable
10
SPROCKET 40-T 50 SX 2009
45210051040
Unavailable
10
SPROCKET 41-T 50 SX 2009
45210051041
Unavailable
10
SPROCKET 42-T 50 SX 2009
45210051042
Unavailable
11
HH COLLAR SCREW M 7X20 WS=11
0015070203
$3.08
12
SHIM
45110052000
$1.49
13
RACING CHAIN 1/2X3/16'' 50 SX
45110265104
$40.79
14
CONNECTING LINK 1/2X3/16'' 90R
45110266000
$4.24
15
BRAKE DISC REAR D=140MM 09
45210060000
$70.86
16
SPECIAL SCREW M6X16 WS=8 10.9
59009062016
$2.05
17
AXLE REAR CPL. SEN.''LC''
45110081000
$41.69
18
FLAT WASHER DIN0125-A13
0125120003
$1.49
19
Nut M12x1 h10 WAF19 DIN 934
0934120103
$2.05
20
Rim lock 2004
45110090000
$31.03
21
NUT FOR WHEEL HOLDER '96
50310090050
$5.23
22
RIM BAND 10'' 22MM
45009073000
$6.07
