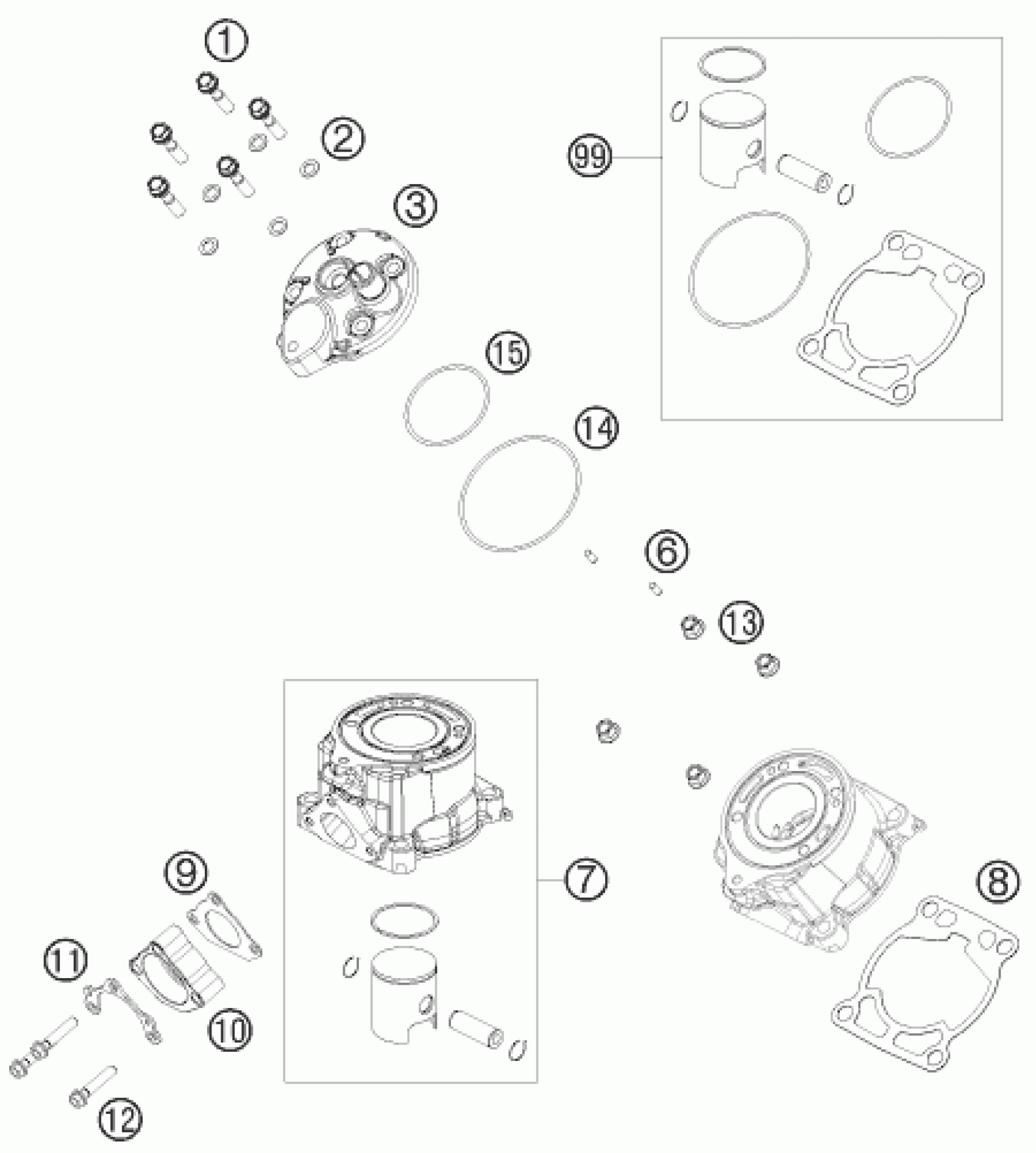

KTM 50 SX 2009 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

9

EXHAUST FLANGE GASKET

45205004000

$7.56

2

CU-SEAL RING DIN7603- 7,3X12X1

0603070121

$1.49

1

CYL. HEAD BOLT M 7X30 WS=10

50330079000

$3.08

13

flanged nut M8 WS10

46030045000

$7.85

14

O-RING 78,00X2,00 VIT. BLACK

0770078020

$5.23

15

O-RING 52,00X2,0 VITON 75

0770052020

$7.85

3

CYLINDER HEAD

45230006000

$141.64

6

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

7

CYLINDER + PISTON

45230038000

$515.74

8

CYLINDER BASE GASKET 0,6MM

46230035060

Unavailable

8

CYLINDER BASE GASKET 0,5 MM

46230035050

Unavailable

8

CYLINDER BASE GASKET 0,4 MM

46230035040

Unavailable

8

CYLINDER BASE GASKET 0,2 MM

46230035020

Unavailable

10

EXHAUST FLANGE

45205003000

$24.21

11

BRACKET FOR SPRINGHOLDER

46205003050

$15.33

12

HH collar screw M6x30 TX30

0025060306

$3.08

99

PISTON KIT GR.II 50 SX/TC

00050000209

Unavailable

99

PISTON KIT GR.I 50 SX/TC

00050000208

Unavailable
