Description

Price

1

CLUTCH CPL. 09

45232000033

$438.41

2

CLUTCH BLOCK KIT CPL.

45232011044

$210.26

3

SPACER SHIM KIT

45232007044

Unavailable

4

CLUTCH SPRING KIT ''A''

45232005144

Unavailable

5

COLLAR SCREW M6X8

45232006000

$46.93

8

NEEDLE BEARING 18X24X12A

0402182412

$8.87

9

INNER RING WITH COLLAR

45232013000

$20.94

11

WASHER 8,5X31X4

45232008000

$15.51

12

HH SCREW DIN0933-M 8X20

0933080203

$5.32

10

OUT. CLUTCH HUB LOOSE

45232001000

$176.33

3

DISTANCE SHIM 9,5X19X0,2

45232007020

Unavailable

3

DISTANCE SHIM 9,5X19X0,5

45232007050

Unavailable

4

CLUTCH SPRING KIT ''B''

45232005244

Unavailable

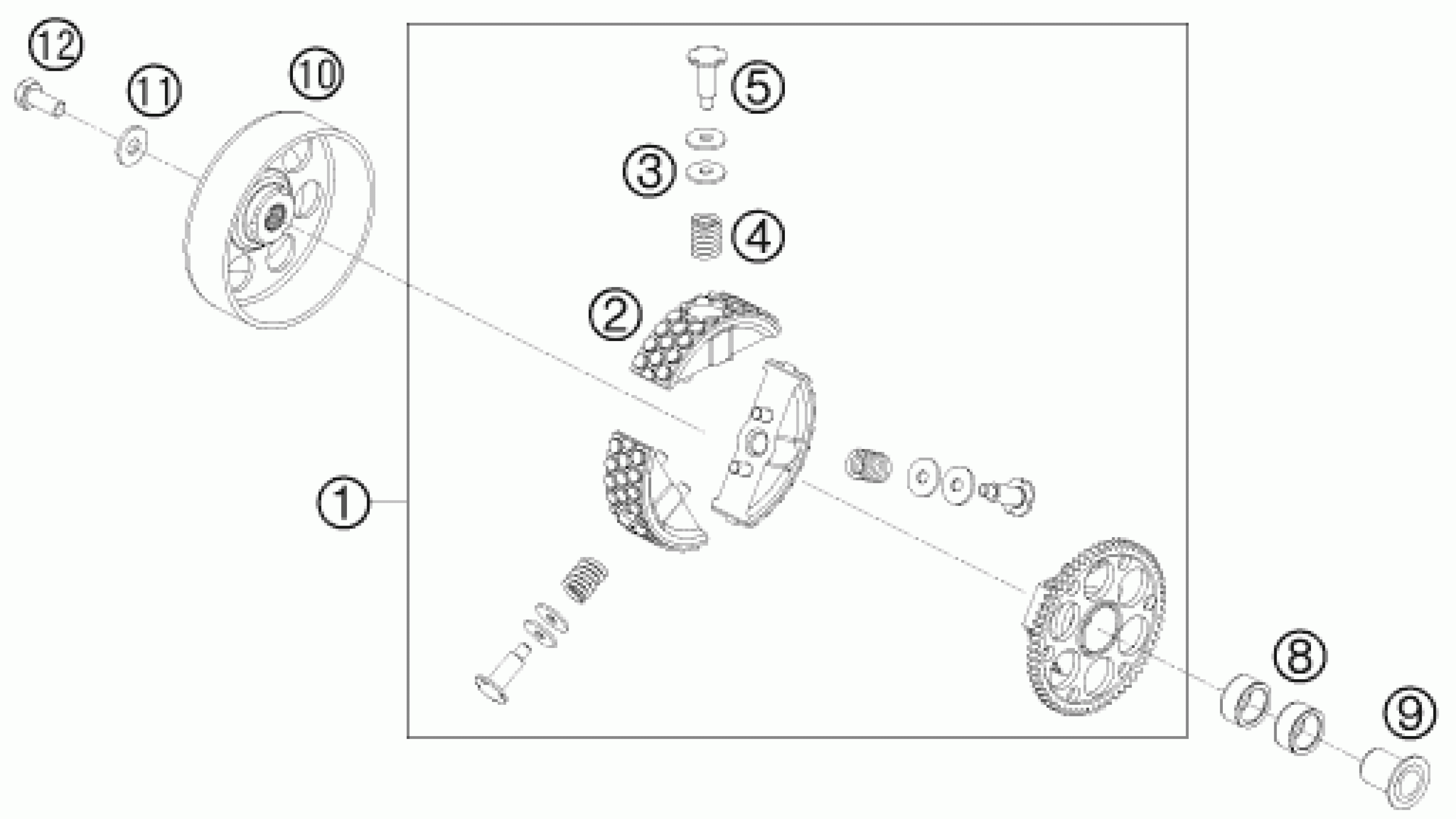

KTM 50 SX 2009 CLUTCH Diagram

CLUTCH CPL. 09

CLUTCH BLOCK KIT CPL.

SPACER SHIM KIT

CLUTCH SPRING KIT ''A''

COLLAR SCREW M6X8

NEEDLE BEARING 18X24X12A

INNER RING WITH COLLAR

WASHER 8,5X31X4

HH SCREW DIN0933-M 8X20

OUT. CLUTCH HUB LOOSE

DISTANCE SHIM 9,5X19X0,2

DISTANCE SHIM 9,5X19X0,5

CLUTCH SPRING KIT ''B''
