Description

Price

5

Lock nut shock M44x1,5

36120015

$30.75

6

Adjustment nut shock M44x1,5

36120418

$45.71

7

SPRING 35N/MM 35-130 130MM OR.

93010175S

Unavailable

7

SPRING 30N/MM 30-130 130MM OR.

93010176S

Unavailable

7

SPRING 40N/MM 40-130 130MM OR.

93010177S

Unavailable

8

Spring retainer 27x57x2

36120386

$27.01

9

Piston rod nut M10x1 black

36120052

$11.12

10

Washer 10x22x2,5

36120604

$20.84

11

Pistonring 33x35x8

36120040

$6.91

12

Piston 10,5x35,6x13,65 3,5/5,5

36120071

$61.70

13

Rebound disc 12x28,5x4 h0

14360065

$10.65

14

Sealholder 36x26,6 cpl.

36120787S

$76.76

15

Round-wire snap ring 38x1,5

40540015

$3.08

16

Cover 36,12x5,5 h13

36120780

$21.96

17

Rubber pad 14x34x19

36120427

$37.02

18

MONOSH. BOTTOM PART L99 CPL.07

36120776S1

$288.98

90

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59

1

MONOSHOCK TOP PART L147 CPL.07

36120783S

$368.23

2

REPAIR KIT BEARINGS 50 SX 07

R307

$90.03

3

SCREW M5 C.K. RVS

36120785

$2.73

4

SEAL D5,21XD8,38X1,22

36120782

$10.84

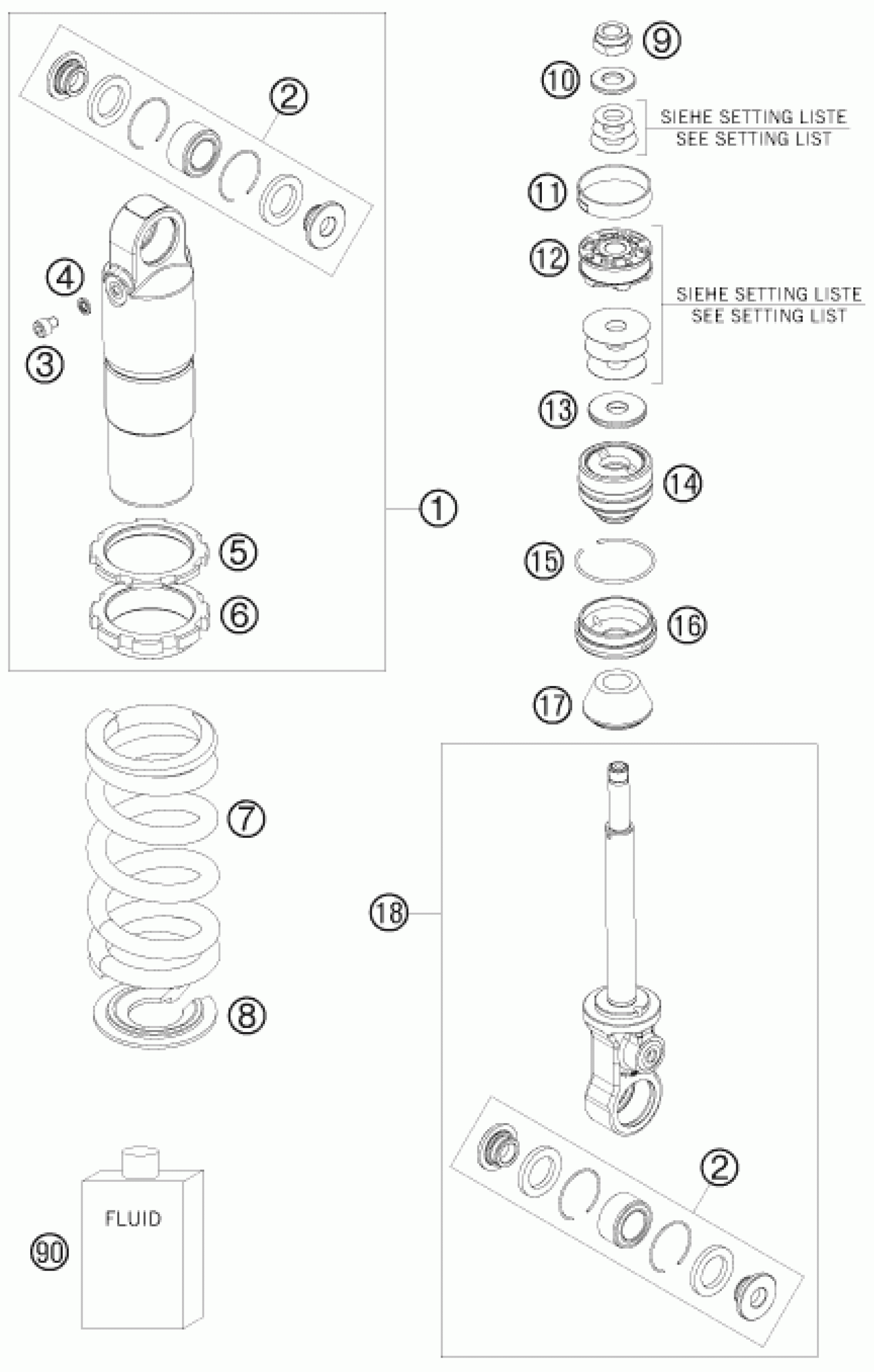

KTM 50 SX 2008 SHOCK ABSORBER DISASSEMBLED Diagram

Lock nut shock M44x1,5

Adjustment nut shock M44x1,5

SPRING 35N/MM 35-130 130MM OR.

SPRING 30N/MM 30-130 130MM OR.

SPRING 40N/MM 40-130 130MM OR.

Spring retainer 27x57x2

Piston rod nut M10x1 black

Washer 10x22x2,5

Pistonring 33x35x8

Piston 10,5x35,6x13,65 3,5/5,5

Rebound disc 12x28,5x4 h0

Sealholder 36x26,6 cpl.

Round-wire snap ring 38x1,5

Cover 36,12x5,5 h13

Rubber pad 14x34x19

MONOSH. BOTTOM PART L99 CPL.07

SHOCK ABSORBER FLUID 5 LT '03

MONOSHOCK TOP PART L147 CPL.07

REPAIR KIT BEARINGS 50 SX 07

SCREW M5 C.K. RVS

SEAL D5,21XD8,38X1,22
