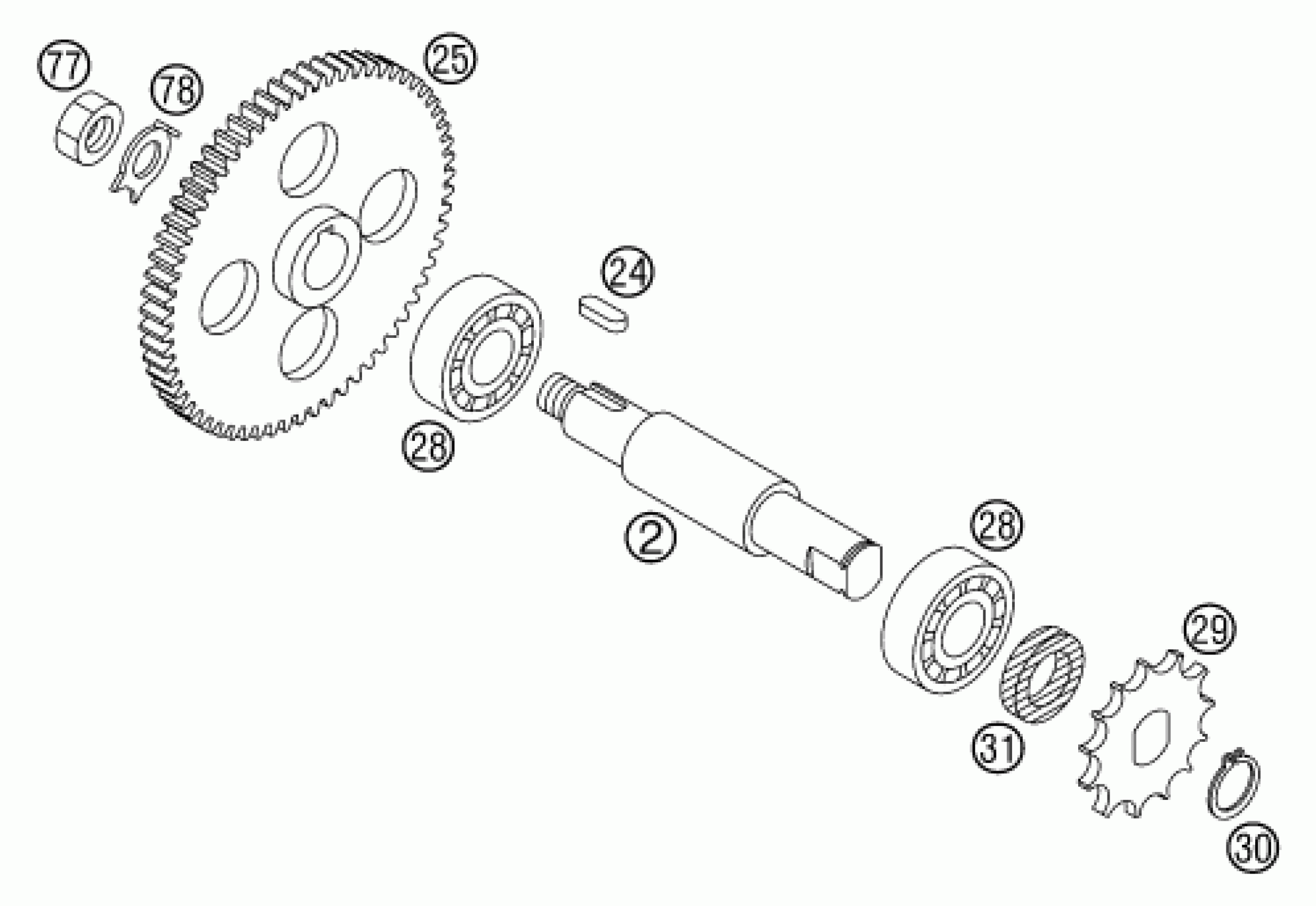

KTM 50 SX 2006 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

2

COUNTER SHAFT 50CCM LC 2001

45133002000

$81.80

24

WOODRUFF KEY 5X5X12

45133024000

$4.11

25

PRIMARY GEAR 57-T

45132024057

$87.66

28

BALL BEARING 15X35X11

45133028000

$22.34

29

SPROCKET 9-T 50 LC 2001

45133029009

Unavailable

29

SPROCKET 10-T 50 LC 2001

45133029010

$20.44

29

SPROCKET 11-T 50 LC 2001

45133029011

Unavailable

29

SPROCKET 12-T 50 LC 2001

45133029012

Unavailable

29

SPROCKET 13-T 50 LC 2001

45133029013

Unavailable

30

CIRCLIP DIN0471-15X1

0471150010

$2.05

31

OIL SEAL RING 15X24X5

45133031000

$5.60

77

HH NUT 14X1,25X7 WS=22

46030029000

$9.72

78

LOCKING PLATE D=14MM

46030078000

$4.11
