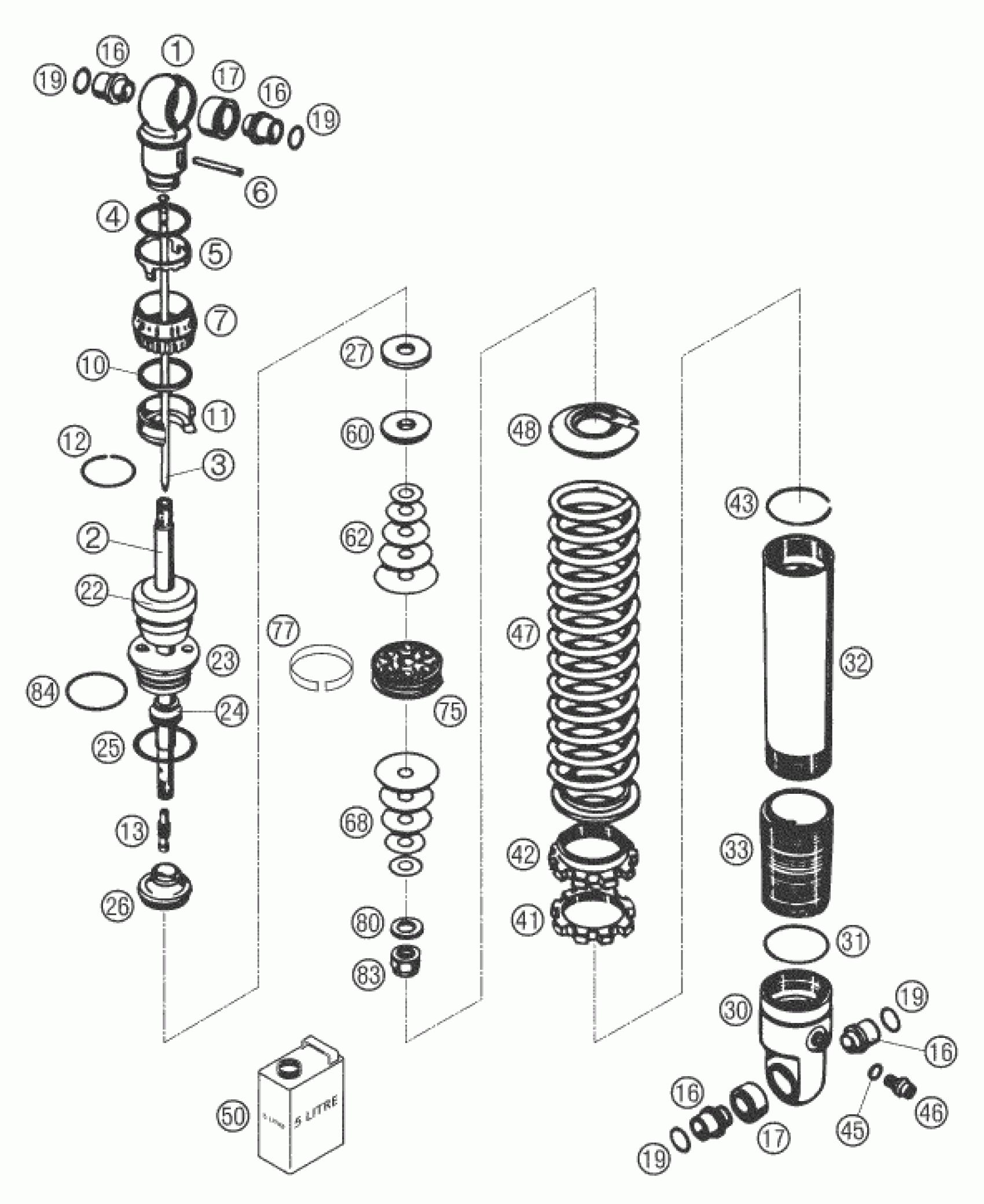

KTM 50 SX 2006 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

SHOCK ABS. BOTTOM L=46

46811525

$213.07

2

PISTON ROD D=14, L=96

36120576

Unavailable

3

NEEDLE CPL. D=4, L=112

46811391S

$99.33

4

O-RING 36X0,5

46811222

$2.32

5

WASHER

46811263

$10.12

6

PIN 4X35

46811261

$3.78

7

ADJ. KNOB D=41

46811262

$12.59

10

Shaft seal 29x35x3

46811221

$11.45

11

INTERMEDIATO RING H=4

46811367

$30.12

12

CIRCLIP 22X1,2

46811268

$1.60

13

NEEDLE SEAT 5X17,25

46811259

$70.29

16

ADAPTOR BUSH KGW 10X22

46811077

$19.33

17

Ball joint bearing 15x25x13

46811027

$29.35

19

SEAL KGW

46811050

$8.13

22

Rubber pad 14x34x19

36120427

$37.02

23

SCREW CAP M37,65

36120651

$62.65

24

DUST SEAL 1424

46811044

$19.35

25

O-ring 29,74x3,53 NBR70

36120064

$1.82

26

ADAPTER CPL. D=36 H=20,5

36120522S1

$102.91

27

SHIM 28,5X14X2

36120469

$10.56

30

SHOCK ABSORBER CASE KGW H=38

36120551

Unavailable

31

O-RING 38,00X2,00 NBR 70 SH

0770380020

$3.08

32

TUBE L=122

36120096

Unavailable

33

Bush M40x1xM44x1,5x70

36120019

$28.38

41

Lock nut shock M44x1,5

36120015

$30.75

42

Adjustment nut shock M44x1,5

36120418

$45.71

43

Round-wire snap ring 38x1,5

40540015

$3.08

45

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

46

HS lock screw M5x6

36120151

$1.86

47

SPRING (46,5) 45-130 D=7,75

93010168

$155.29

47

SPRING (46,5) 50-130 D=8,0

93010169

Unavailable

48

Spring retainer 27x57x2

36120386

$27.01

50

SHOCK ABSORBER FLUID 5 LT 05

50180466S1

$149.59

60

REBOUND BUSH H=5,6

36120557

Unavailable

62

SHIM 10X21X0,30

36120350

$2.05

62

SHIM 10X16X0,2

36120298

$2.05

62

SHIM 10X23X0,25

36120343

$2.05

62

SHIM 10X25X0,25

36120344

$2.05

62

SHIM 10X27X0,25

36120345

$2.05

62

SHIM 10X29X0,20

36120338

$2.05

62

SHIM 10X31X0,20

36120339

$2.05

62

SHIM 10X33X0,20

36120340

$2.05

68

SHIM 10X16X0,30

36120312

$2.05

68

SHIM 10X21X0,20

36120334

$2.05

68

SHIM 10X25X0,20

36120336

$2.05

68

SHIM 10X23X0,15

36120327

$2.05

68

Shim 23,25x27x0,30

36120655

Unavailable

68

SHIM 10X25X0,15

36120328

$2.05

75

PISTON 6+6X5,5/3,5

36120624

$67.45

77

Pistonring 33x35x8

36120040

$6.91

80

Washer 10x22x2,5

36120604

$20.84

83

PISTON ROD NUT CPL. H=15,2

36120605S

$89.30

84

O-RING NBR 32X1,5

46811500

$1.49

47

SPRING (46,5) 40-130 D=7,5

93010167

Unavailable
