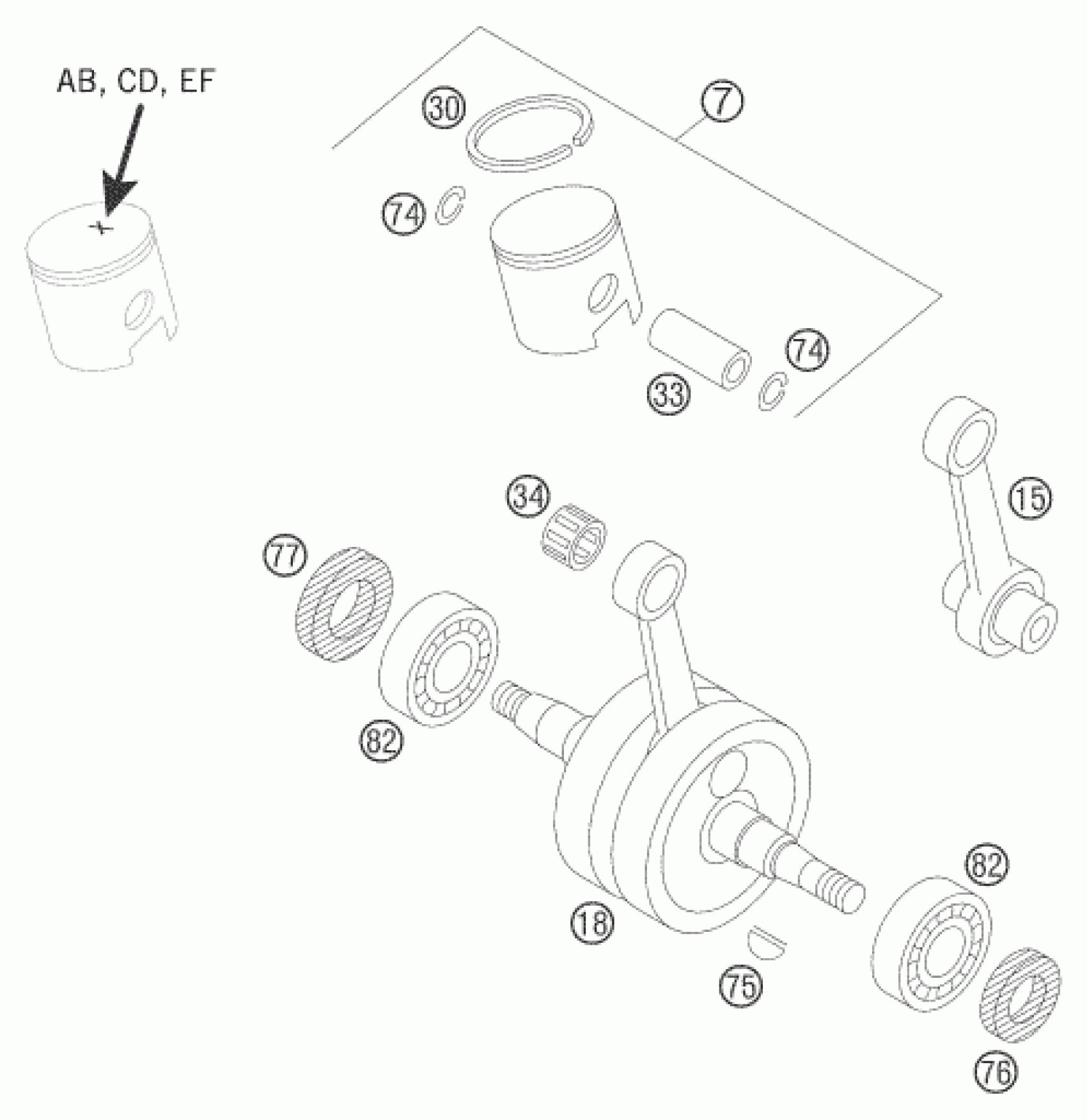

KTM 50 SX 2006 CRANKSHAFT, PISTON Diagram

#

Description
Price

7

PISTON CPL.39,5 ''AB'' 50 LC

45130007000 A

Unavailable

7

PISTON CPL.39,5 ''CD'' 50 LC

45130007000 C

Unavailable

7

PISTON CPL.39,5 ''EF'' 50 LC

45130007000 E

Unavailable

15

CON.ROD REPAIRS. 50CCM LC 2001

45130015000

$135.29

18

CRANKSHAFT 50 LC 2004

45130018100

$294.37

30

PISTON RING 50CCM LC 2001

45130030000

$55.06

33

PISTON PIN 50CCM LC 2001

45130033000

$9.34

34

NEEDLE BEAR.PISTONPIN 12X15X15

45130034000

$15.42

74

CIRCLIP 2001

45130074000

$2.05

75

WOODRUFF KEY 2,5X3,7

45130075000

$1.88

76

OIL SEAL RING 15X24X7

45130076000

$21.68

77

OIL SEAL RING 17X35X7

45130077000

$25.19

82

BALL BEARING 17X40X12 2002

45130082100

$16.84
