Description

Price

1

RADIATOR MINI SX JUN/SEN 2001

45135007000

$148.20

2

RADIATOR CAP 50 LC 1,0 BAR

45135009000

$13.08

4

RADIATOR PROT. SX JUN/SEN 2001

45135007001

$4.97

6

clip nut M6

54603048100

$4.11

8

RADIATOR HOSE SX JUN.''LC'' 20

45135025000

$6.63

10

RADIATOR HOSE SX JUN.''LC'' 20

45135026000

$8.97

13

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

15

Washer DIN9021-A 6.4

0021060003

$2.05

16

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

18

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

19

RUBBER GROMMET 11 X 19 X 9 '96

58414019000

$1.49

20

HOSE CLAMP GEMI 12/22

42013037200

$2.05

23

Cable tie 200/4.6mm black

44011076200

Unavailable

23

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

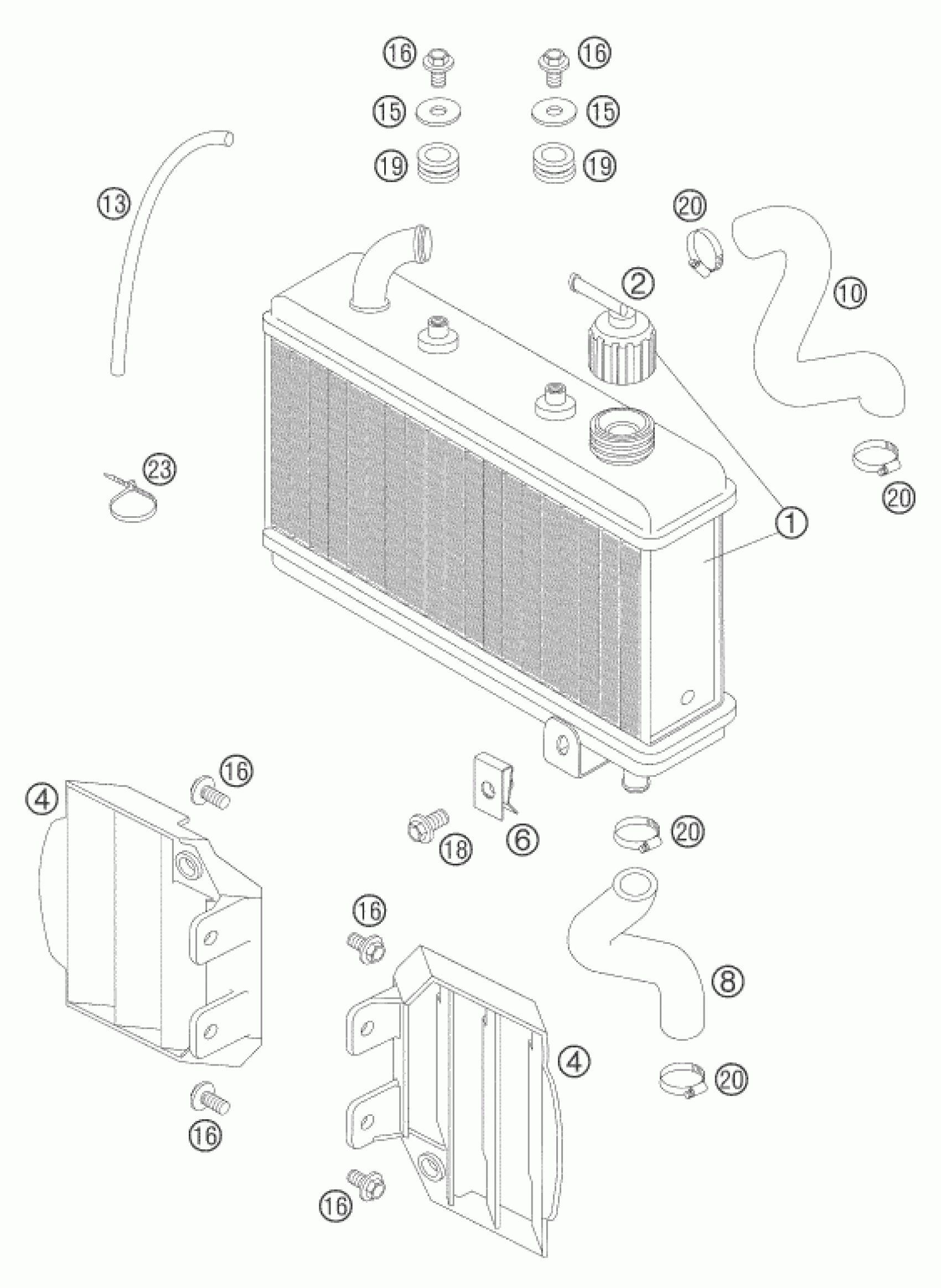

KTM 50 SX 2006 COOLING SYSTEM Diagram

RADIATOR MINI SX JUN/SEN 2001

RADIATOR CAP 50 LC 1,0 BAR

RADIATOR PROT. SX JUN/SEN 2001

clip nut M6

RADIATOR HOSE SX JUN.''LC'' 20

RADIATOR HOSE SX JUN.''LC'' 20

PVC-HOSE 7X10 PER METER

Washer DIN9021-A 6.4

HH COLLAR SCREW M 6X10 WS=8

SPECIAL SCREW M6X12,5 WS=8

RUBBER GROMMET 11 X 19 X 9 '96

HOSE CLAMP GEMI 12/22

Cable tie 200/4.6mm black

CABLE TIE 300/4,8MM BLACK
