Description

Price

2

CLUTCH CPL.50GS 2007

45132002244

$236.64

3

CLUTCH HUB 50 LC 2002

45132002000

$117.49

4

SPACER 6X8X19

45132004000

$14.02

5

CLUTCH SPRING 2001

45132005000

$2.05

7

HH SCREW DIN0933-M 6X25

0933060253

$2.05

11

CLUTCH BLOCK 06

45132011200

$27.05

15

NEEDLE BEARING 15X18X17

45132015000

$18.88

19

SPACER WASHER 15X25X0,3

45132020030

Unavailable

19

SPACER WASHER 15X25X0,4

45132020040

Unavailable

19

STOP DISC 15X25X0,5

47033043000

Unavailable

19

STOP DISC 15X25X1

47033040000

Unavailable

20

WASHER 10,4X16,8X0,4

45132020000

$4.11

21

WASHER 8X15,3X0,5

45132120000

Unavailable

21

WASHER 8X15,3X1

45132120100

Unavailable

23

CLUTCH DRUM 16-T

45132023016

$140.43

29

SPECIAL NUT 10X1,25X8

45130029000

$5.23

21

WASHER 8X15,3X0,25

45132120200

Unavailable

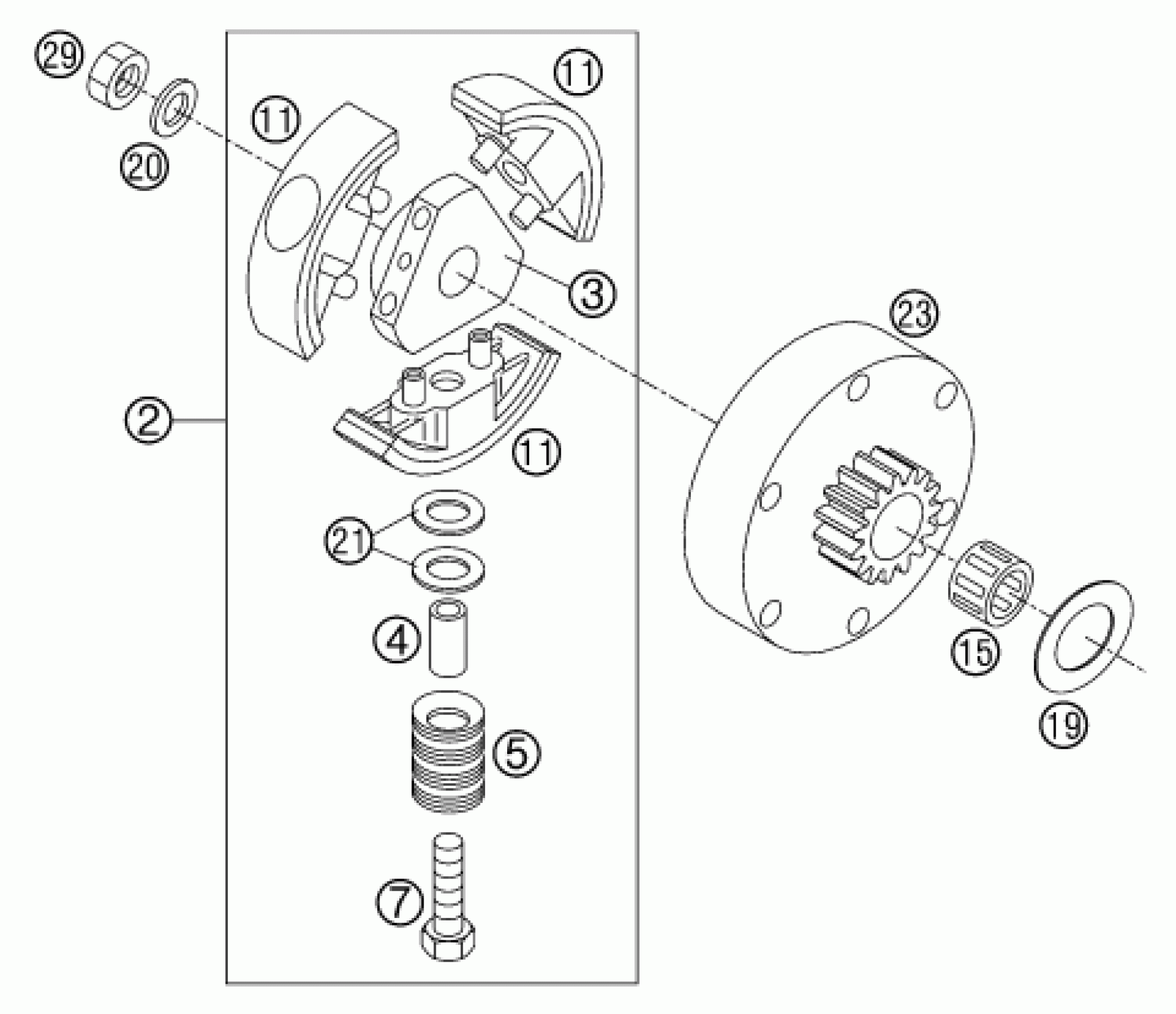

KTM 50 SX 2006 CLUTCH Diagram

CLUTCH CPL.50GS 2007

CLUTCH HUB 50 LC 2002

SPACER 6X8X19

CLUTCH SPRING 2001

HH SCREW DIN0933-M 6X25

CLUTCH BLOCK 06

NEEDLE BEARING 15X18X17

SPACER WASHER 15X25X0,3

SPACER WASHER 15X25X0,4

STOP DISC 15X25X0,5

STOP DISC 15X25X1

WASHER 10,4X16,8X0,4

WASHER 8X15,3X0,5

WASHER 8X15,3X1

CLUTCH DRUM 16-T

SPECIAL NUT 10X1,25X8

WASHER 8X15,3X0,25
