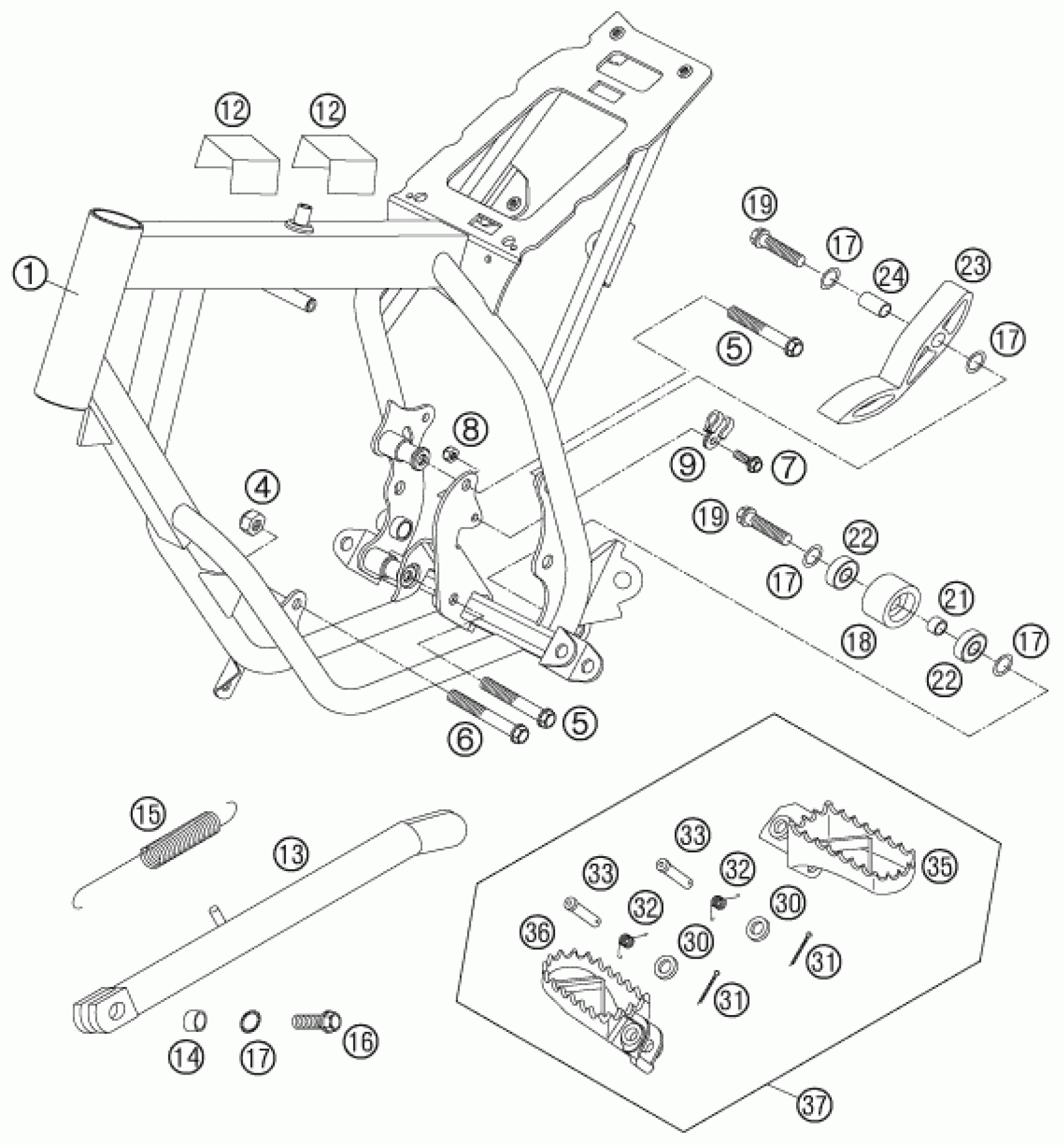

KTM 50 SENIOR ADVENTURE 2007 FRAME Diagram

#

Description
Price

1

FRAME SENIOR ADV. ''MB2R'' 20

4510300130030

Unavailable

4

Self locking nut M8 10.9

54310086200

$3.08

5

HH COLLAR SCREW M 8X60 WS=10

0015080603

$3.08

6

HH COLLAR SCREW M 8X65 WS=10

0015080653

$2.05

7

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

8

Self locking nut DIN 985 M5

0985050003

$2.05

9

BRAKE CABLE CLAMP RSGU 9/12

45001070000

$5.23

12

METAMOLL FOR BATTERY BRACKET

58711054050

$2.05

13

SIDE STAND L=319MM SILVER 2001

4510302300090

$33.25

14

BUSHING FOR SIDE STAND 02

45103023250

$3.08

15

SIDESTAND SPRING LONG

51003021000

$7.00

16

HH COLLAR SCREW M 8X20 WS=10

0015080203

$2.05

17

LOCK WASHER 8MM

36003014000

$2.05

18

CHAIN ROLL D=30MM

50203053000

$6.72

19

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

21

BUSHING 8.2 X 12 X 6

74003021000

$3.08

22

Grooved ball bearing 608 2RS C

0625006087

$21.40

23

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

24

BUSHING 8,2X10X20

51103053051

$4.11

30

washer DIN 125 A 10.5

0125100003

$2.05

31

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

32

FOOTREST SPRING L/S & R/S

54603041000

$5.23

33

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

35

FOOT REST L/S SILVER

5460304000090

$31.12

36

FOOT REST R/S SILVER '98

5460314000090

$34.59

37

FOOTPEG L.+R. CPL. MINI 03

4510304013390A

Unavailable
