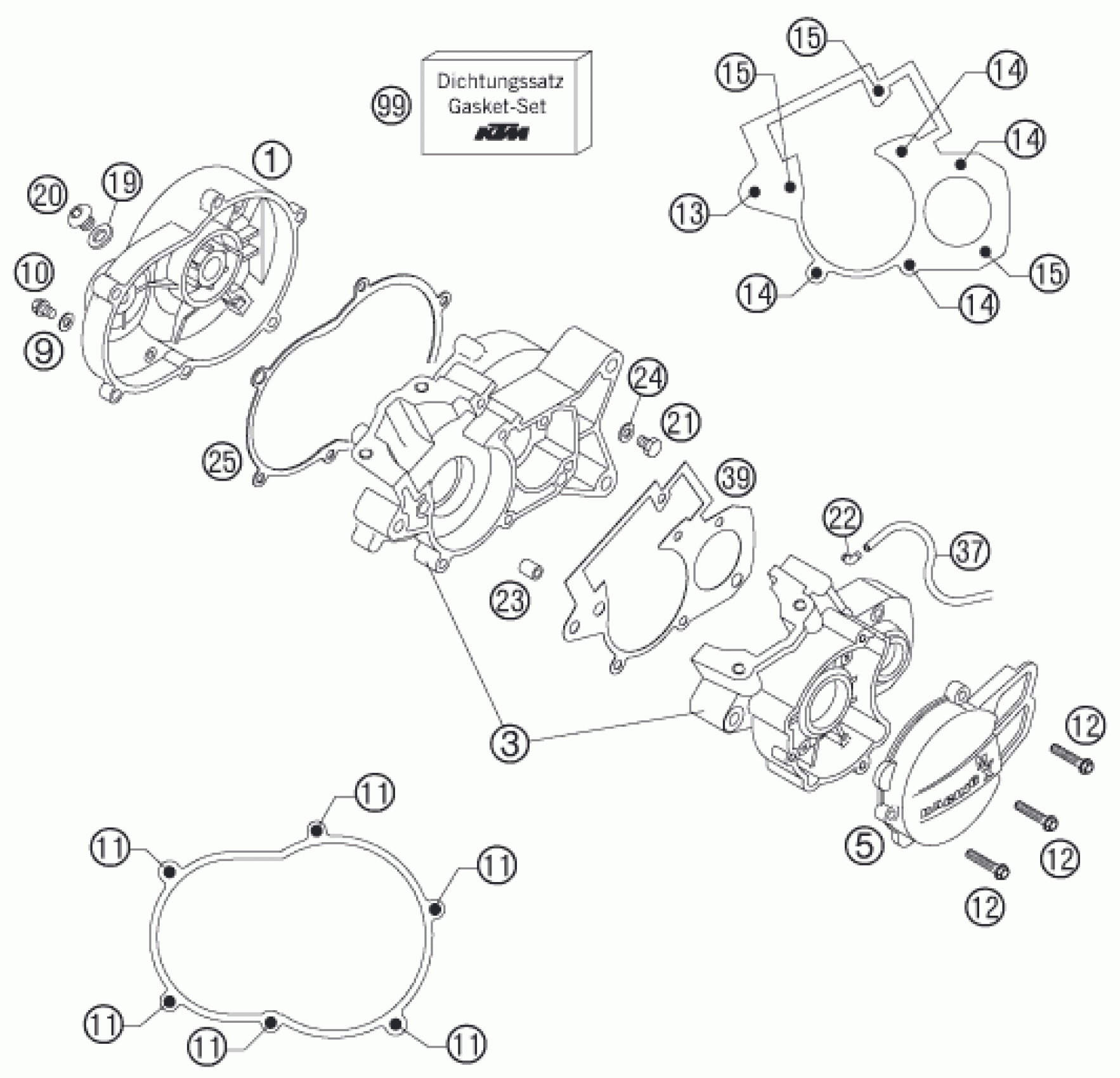

KTM 50 SENIOR ADVENTURE 2006 ENGINE CASE Diagram

DOWEL 7X9X10

45130023000

$5.23

CLUTCH COVER 50 2004

45130001100

$75.32

ENGINGE CASE 50CCM LC 2001

45130000044

$199.98

IGNITION COVER 50 AC 2002

45130502000

$11.82

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

HH COLLAR SCREW M 8X60 WS=10

0015080603

$3.08

AH SCREW DIN0912-M 6X35

0912060353

$2.05

AH SCREW DIN0912-M 6X40 A2

0912060404

$2.05

GASKET FOR OIL PLUG

45130019000

$1.73

OIL PLUG 50 LC 2001

45130020000

$9.29

OIL DRAIN PLUG M10 WS=13

46030021100

$13.46

ANGLE PIECE 50CCM LC 2001

45130022000

$5.88

sealing ring DIN 7603 10x14x1

0603100141

$2.05

GASKET FOR CLUTCH COVER 2001

45130025000

$6.54

PVC-HOSE 3X5MM

52031137001

Unavailable

ENGINE CASE GASKET 50 LC 2001

45130039000

$4.11

GASKET SET CPL. 50 AC 2002

45130599000

$86.39
