CYLINDER, CYLINDER HEAD

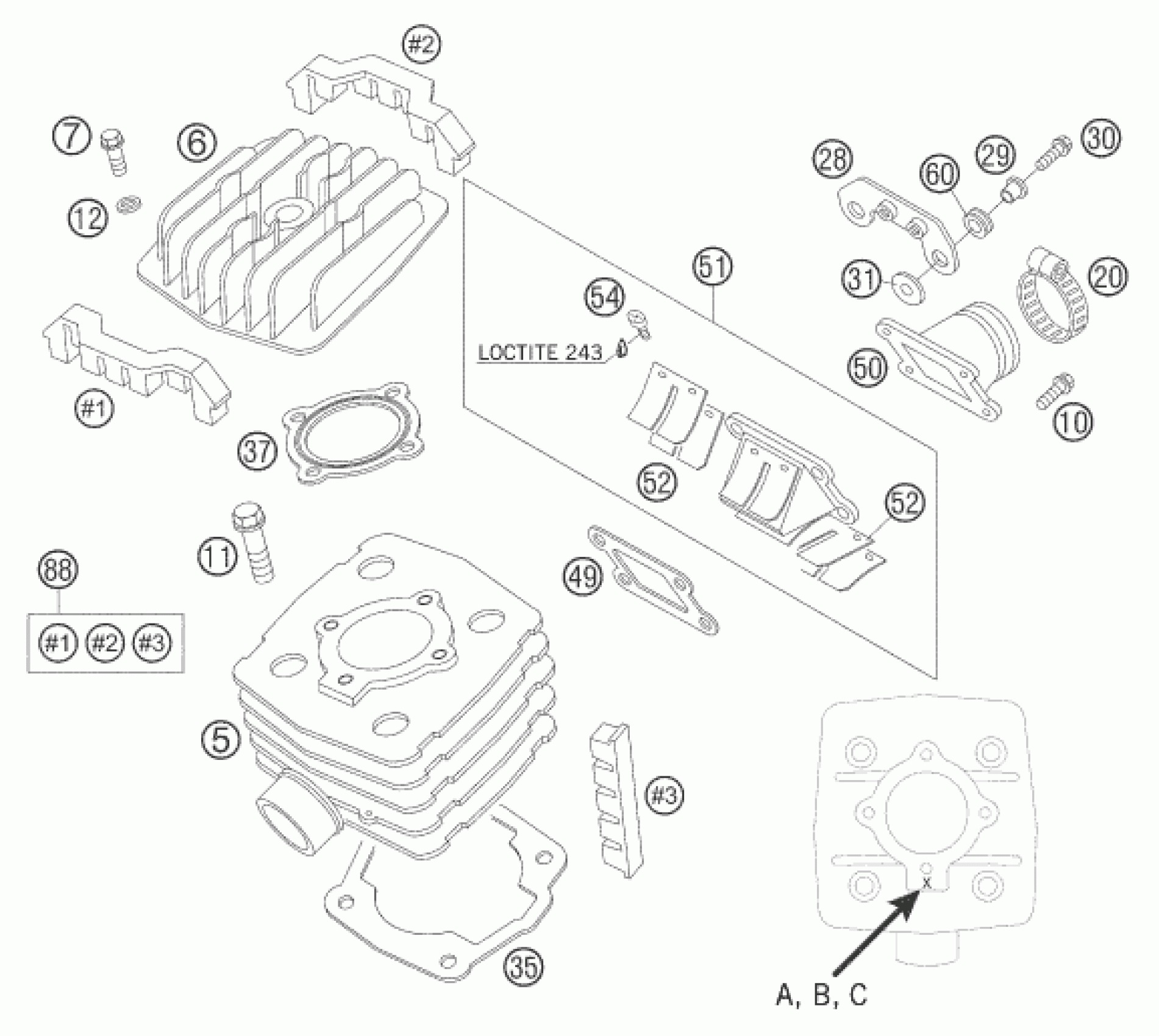

KTM 50 SENIOR ADVENTURE 2006 CYLINDER, CYLINDER HEAD Diagram
#
Description
Price
5
CYLINDER 39,5MM ''A'' 50 2002
45130505000 A
Unavailable
5
CYLINDER 39,5MM ''B'' 50 20
45130505000 B
Unavailable
5
CYLINDER 39,5MM ''C'' 50 20
45130505000 C
Unavailable
6
CYLINDER HEAD 50 GS 2002
45130506100
$43.74
7
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
10
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
11
HH COLLAR SCREW M 8X20 WS=10
0015080203
$2.05
12
WASHER DIN0125-A 6,4
0125060003
$1.49
20
Hose clamp 25-40 SGT 4
10001120000
$5.32
28
BRACKET IGNITI. COIL 50LC 2001
45139028000
$5.64
29
COLLAR BUSHING 6,3X8X7,5
45139128000
$4.39
30
HH COLLAR SCREW M 6X30 SW=8
0015060303
$3.08
31
Washer DIN9021-A 6.4
0021060003
$2.05
35
CYLINDER BASE GASKET 0,2 MM
46030035020
Unavailable
35
CYLINDER BASE GASKET 0,5 MM
46030035050
Unavailable
37
CYLINDER HEAD GASKET 50 AC 02
45130537000
$5.23
49
INTAKE VALVE GASKET
46030049000
$2.27
50
INLET MANIFOLD 50CCM LC 2001
45130050000
$54.13
51
MEMBRANE HOUSING CPL.65SX 2001
46030051144
$71.62
52
MEMBRANE LOOSE 60/65 CCM
46030052000
$16.24
54
FLAT HEAD SCREW DIN7985-M 3X6
0985030063
$1.49
60
rubber grommet D=8mm open
31008060000
$2.05
88
DAMPING RUBBER-SET 2002
45130588000
$37.99
