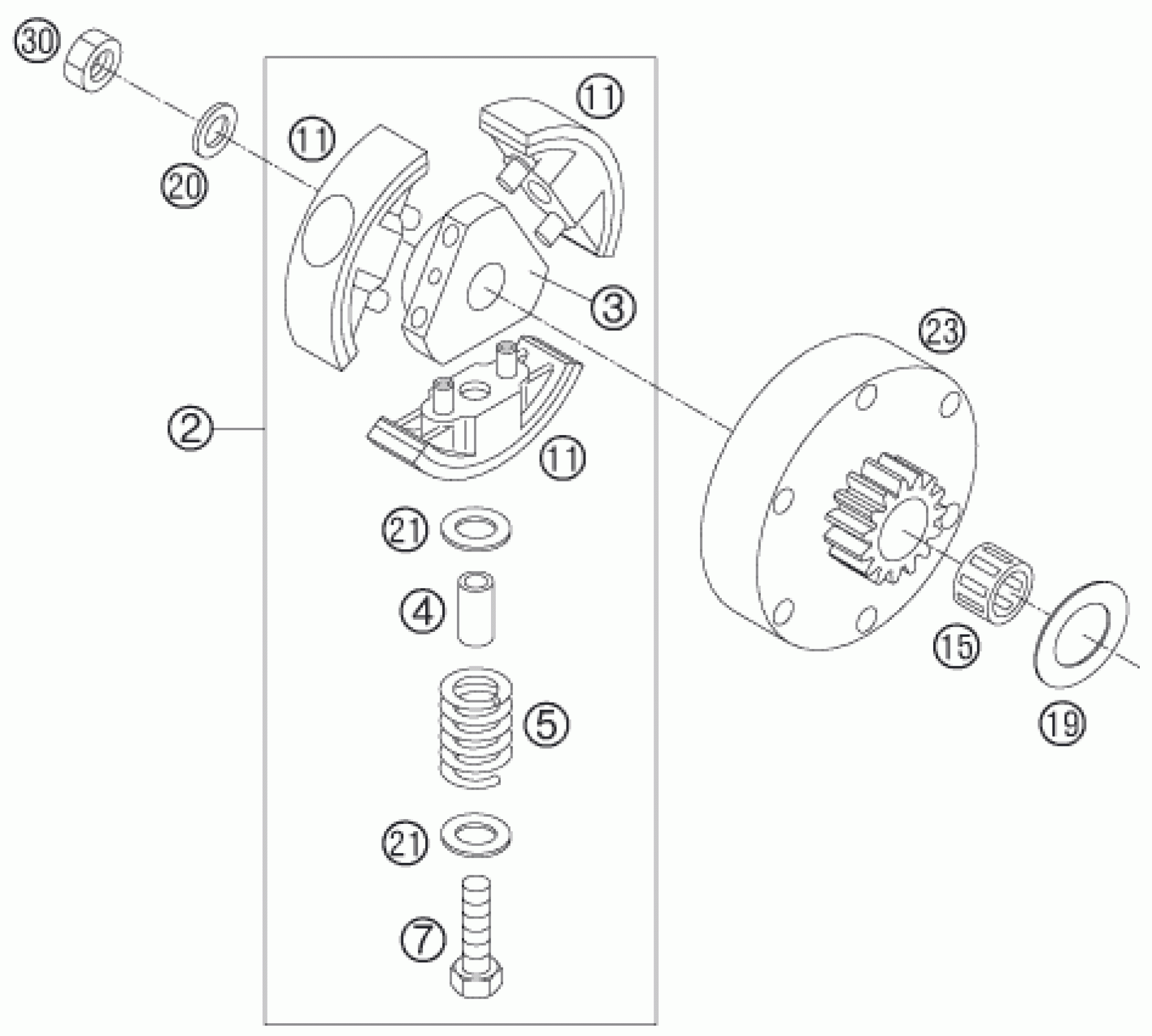

KTM 50 SENIOR ADVENTURE 2006 CLUTCH Diagram

#

Description
Price

2

CLUTCH CPL.50 2002

45132502044

$188.69

3

CLUTCH HUB 50 LC 2002

45132002000

$117.49

4

SPACER 6X8X19

45132004000

$14.02

5

CLUTCH SPRING 50 GS 2002

45132005100

$5.02

7

HH SCREW DIN0933-M 6X25

0933060253

$2.05

11

CLUTCH BLOCK 06

45132011200

$27.05

15

NEEDLE BEARING 15X18X17

45132015000

$18.88

19

STOP DISC 15X25X0,5

47033043000

Unavailable

19

SPACER WASHER 15X25X0,6

45132020060

Unavailable

19

STOP DISC 15X25X1

47033040000

Unavailable

20

WASHER 10,4X16,8X0,4

45132020000

$4.11

21

WASHER 8X15,3X0,5

45132120000

$2.61

23

CLUTCH DRUM 16-T

45132023016

$140.43

30

SPECIAL NUT 10X1,25X8

45130029000

$5.23
