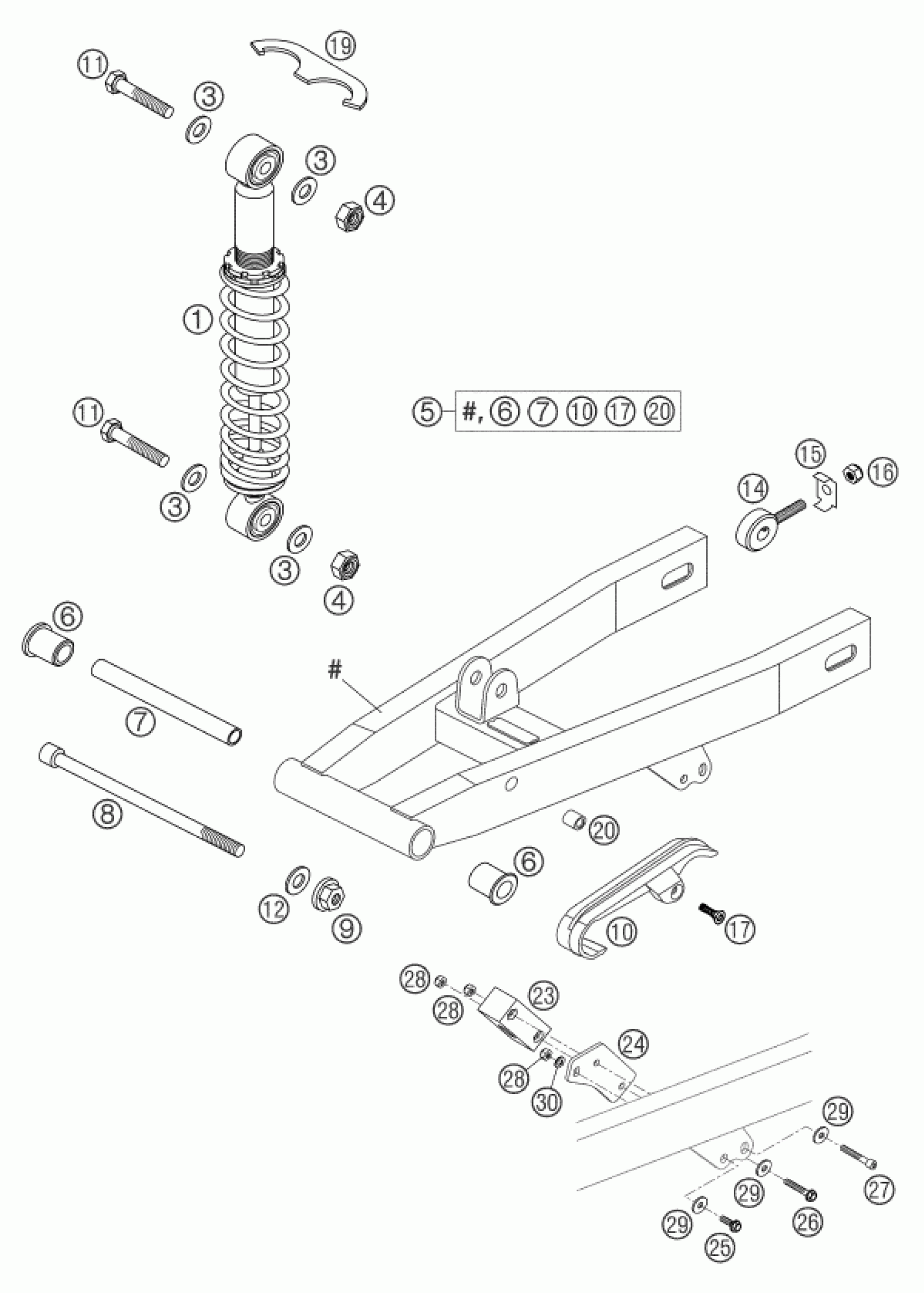

KTM 50 SENIOR ADVENTURE 2004 SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER SEN L=275MM 02

45104010400

$154.88

3

washer DIN 125 A 10.5

0125100003

$2.05

4

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

$2.05

5

SWINGARM CPL. SEN. ADV.+LC 02

45104030144

$148.27

6

BUSHING BOX L=30 MM

45004031000

$5.23

7

SPACING TUBE 10X13X140 MM

45004039000

$4.74

8

SWING ARM BOLT M10X158,5 02

45103014000

$24.11

9

flanged hex nut DIN 6927 M10 W

49009082000

$3.08

10

CHAIN SLID. GUARD FRO. MINI 02

45104066000

$6.80

11

HH SCREW DIN0931-M10X45

0931100453

$3.08

12

WASHER 10,5 X 21 X 3

31004001100

$2.05

14

CHAIN ADJUSTER

45010083000

$14.11

15

SUPPORTING BRACKET

45010083060

$6.63

16

SELF LOCKING NUT DIN0985-M 8

0985080003

$2.05

17

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

19

HOOK WRENCH 50 SXR

45004010090

$6.27

20

BLIND RIVET THREAD M6 STE. 4MM

55003139900

$2.05

23

CHAIN GUIDE REAR

45004070000

$10.37

24

BRACKET FOR CHAIN GUARD 02

45104170000

$9.44

25

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

26

HH COLLAR SCREW M 5X30 WS=8

0015050303

$2.05

27

AH SCREW DIN912 M5X35

0912050353

$2.05

28

Self locking nut DIN 985 M5

0985050003

$2.05

29

washer DIN 9021 A - 5.3

0021050003

$1.49

30

WASHER DIN0125-A 5,3

0125050003

$1.49
