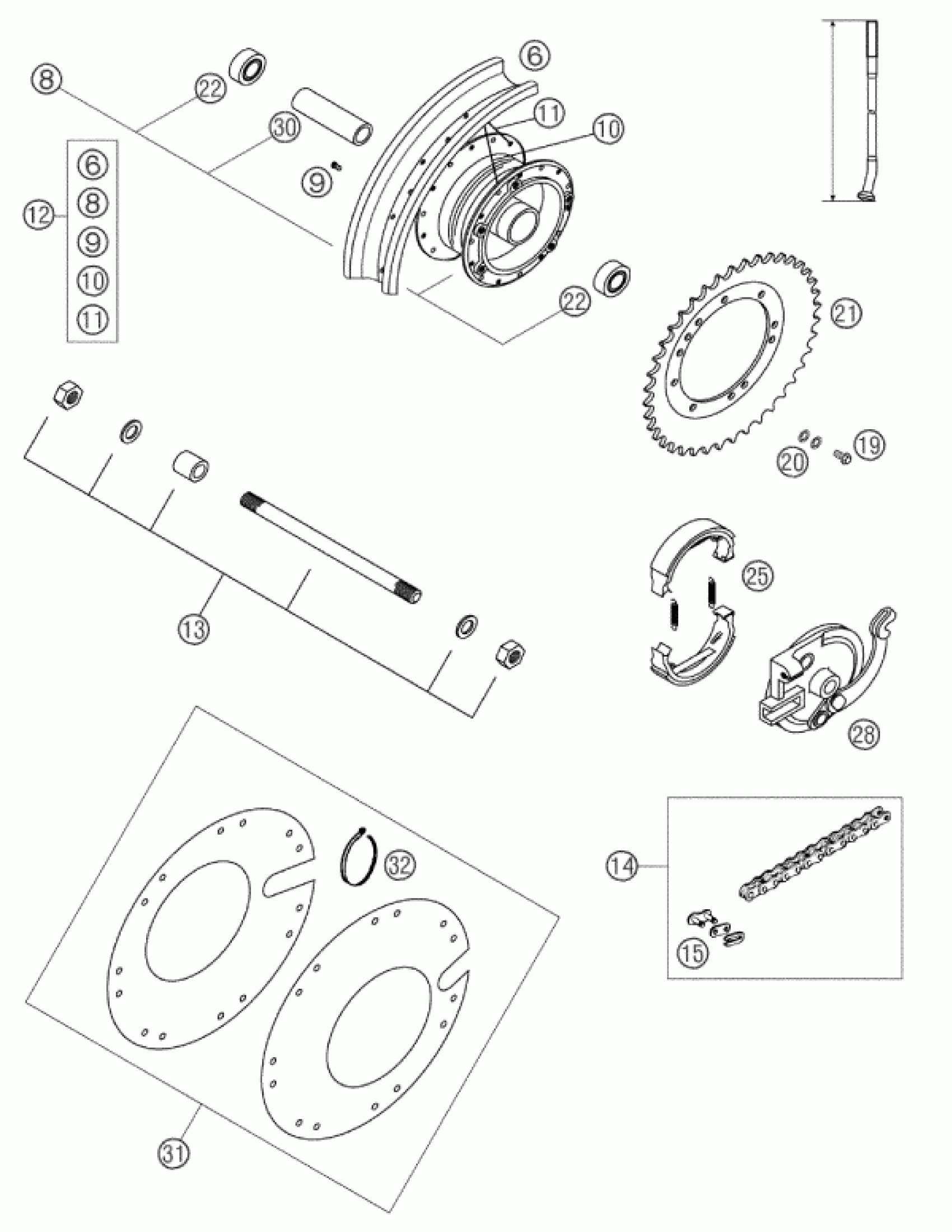

KTM 50 SENIOR ADVENTURE 2004 REAR WHEEL Diagram

#

Description
Price

6

RIM REAR 1,6X10'' ALU

45110070100

$119.79

8

REAR WHEEL HUB CPL. 2004

45110010244

Unavailable

9

SPOKE NIPPLE M 3,97

45109072100

$2.05

10

SPOKE M3,97X72X70° 04

45110071072

$3.08

11

SPOKE M3,97X72X115° 04

45110171072

$3.08

12

RR WHEEL-SP CPL.1,60X10'' ALU

45110001444

$299.55

13

AXLE REAR CPL. L=210MM

45010081000

$43.38

14

CHAIN 1/2X3/16'' SX 50

45110165104

$16.59

15

CONNECTING LINK 50 SX

45110166000

$4.24

19

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

20

Pair of washers M6 NORDLOCK

50233041000

$4.11

21

SPROCKET 44-T

45010051044

Unavailable

21

SPROCKET 45-T

45010051045

Unavailable

21

SPROCKET 46-T

45010051046

Unavailable

21

SPROCKET 48-T

45010051048

$26.36

22

deep groove ball bearing 6001.

0625060016

$18.88

25

BRAKE SHOES GARN.

45009035000

$25.52

28

SUPPORTING PLATE CPL. REAR

45010030000

$116.49

30

DISTANCE TUBE REAR

45010011000

$17.48

31

WHEEL COVER CPL. 50SX LC 03

45110092000

$71.19

32

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05
