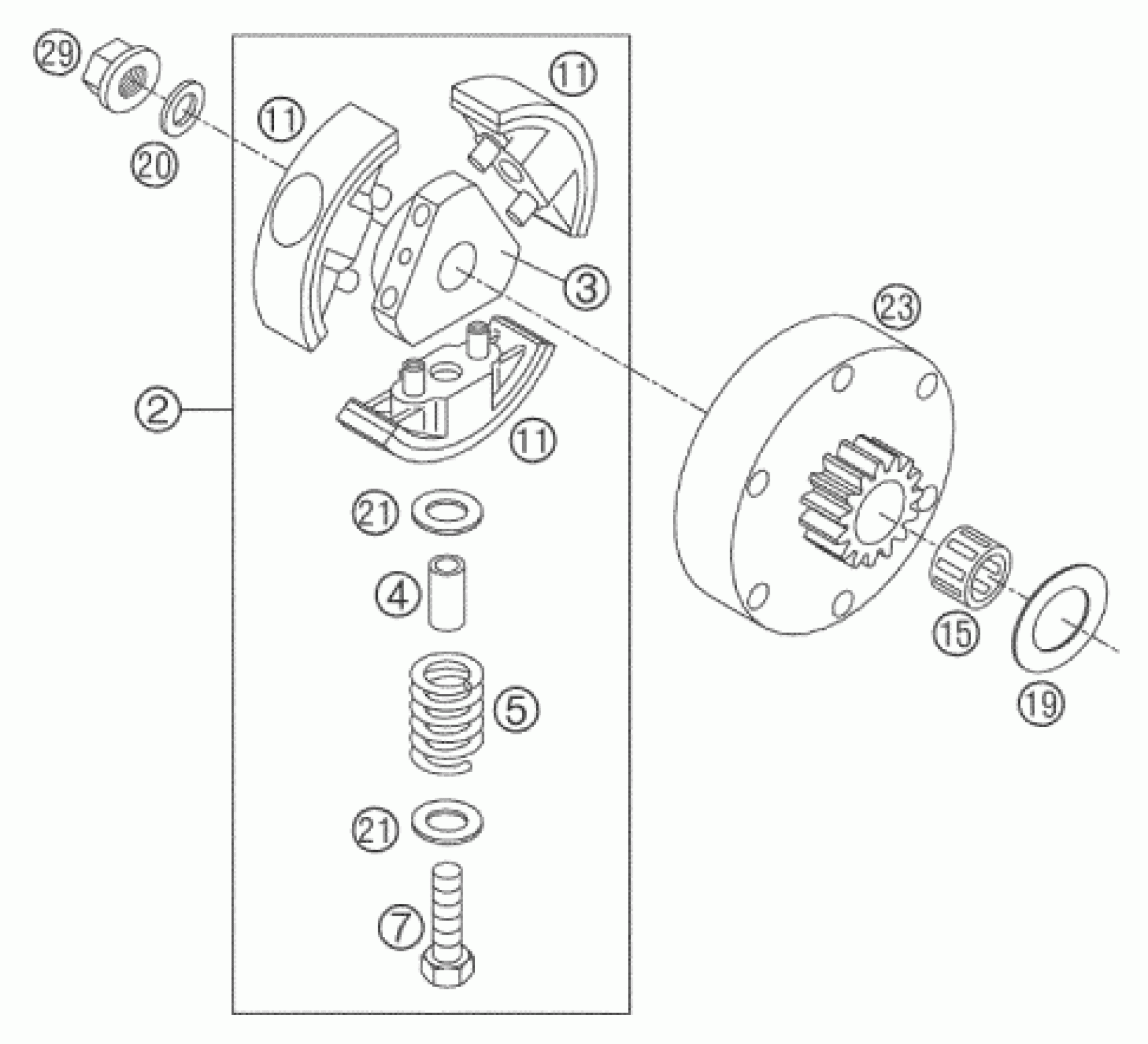

KTM 50 MINI ADVENTURE GS 2002 CLUTCH Diagram

#

Description
Price

2

CLUTCH CPL.50 2002

45132502044

$188.69

3

CLUTCH HUB 50 LC 2002

45132002000

$117.49

4

SPACER 6X8X19

45132004000

$14.02

5

CLUTCH SPRING 50 GS 2002

45132005100

$5.02

7

HH SCREW DIN0933-M 6X25

0933060253

$2.05

11

CLUTCH BLOCK 50 LC 2002

45132011100

$19.48

15

NEEDLE BEARING 15X18X17

45132015000

$18.88

19

SPACER WASHER 15X25X0,3

45132020030

Unavailable

19

SPACER WASHER 15X25X0,4

45132020040

Unavailable

19

SPACER WASHER 15X25X0,6

45132020060

Unavailable

19

SPACER WASHER 15X25X0,8

45132020080

Unavailable

20

WASHER 10,4X16,8X0,4

45132020000

$4.11

21

WASHER 8X15,3X0,5

45132120000

$2.61

23

CLUTCH DRUM 16-T

45132023016

$140.43

29

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05
