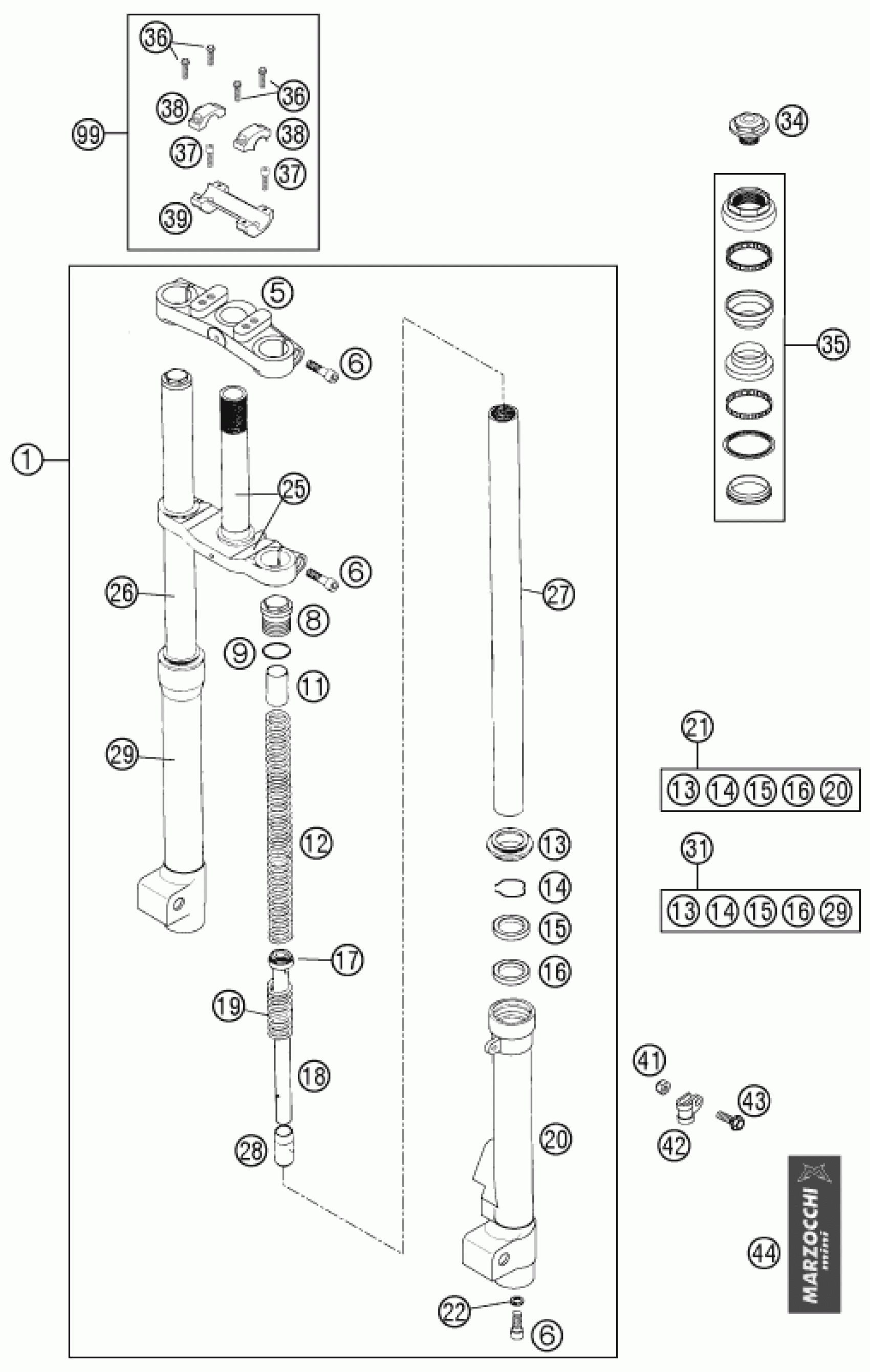

KTM 50 MINI ADVENTURE 2002 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK CPL. 50 ADV. MARZ. 2002

45101000044

$334.41

5

TOP FORK PLATE

7501476A

Unavailable

6

AH SCREW DIN0912-M 8X30

0912080303

$2.05

8

PLUG CAP

7504212AC

Unavailable

9

O-RING

7528010

$1.49

11

PRE LOAD BUSH L=55MM 2002

7518031

Unavailable

12

SPRING 2N/MM

75141169

$14.43

13

DUST SEAL

7533297

$9.37

14

STOP RING

7523264

$4.21

15

OIL SEAL 32/42/6,5-9,5

7528230

$14.79

16

WASHER D42X32,5X1,5

7522166AA

$4.72

17

PISTON RING D32

7524157

$2.50

18

PISTON ROD REBOUND MINI 02

78031105

Unavailable

18

PISTON ROD COMPRESSION MINI 02

78031104

Unavailable

19

REBOUND SPRING

75141015

Unavailable

20

SLIDER LEFT SIDE 2002

75031538A/A

Unavailable

21

SLIDER LEFT SIDE CPL. 2002

75031538A/A/R

Unavailable

22

WASHER 14X8X1,5

7522225

$1.49

25

BOT. FORK PLATE CPL. MINI/JUN

77051124

$182.59

26

FORK TUBE R/S MINI/JUN. 02

7708247/R

Unavailable

27

FORK TUBE L/S MINI/JUN. 02

7708248/R

Unavailable

28

FOOT BUFFER

7512068

$8.27

29

SLIDER RIGHT SIDE

75031366A/A

Unavailable

31

SLIDER CPL. RIGHT SIDE

75031366A/K/R

Unavailable

34

STEER.HEAD SCREW M20X1,5 WS=27

50301036000

$10.38

35

STEER.STEM B. CPL. 50 SXR 20

45101081000

Unavailable

36

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

37

AH SCREW DIN6912-M10X25,10.9

0912100250

$4.11

38

HANDLEBAR CLAMP D=22MM 2001

50301038000

$21.50

39

HANDLEBAR SUPPORT D=22MM 2001

45101039000

$44.96

41

Self locking nut DIN 985 M5

0985050003

$2.05

42

BRAKE CABLE CLAMP RSGU 9/12

45001070000

$5.23

43

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

44

STICKER LEFT SIDE MARZOCCHI

7547325

$11.87

0

STICKER RIGHT SIDE MARZOCCHI

7547331

$11.87

99

HANDLEBAR SUPPORT KIT 50 SX

00050000924

Unavailable
