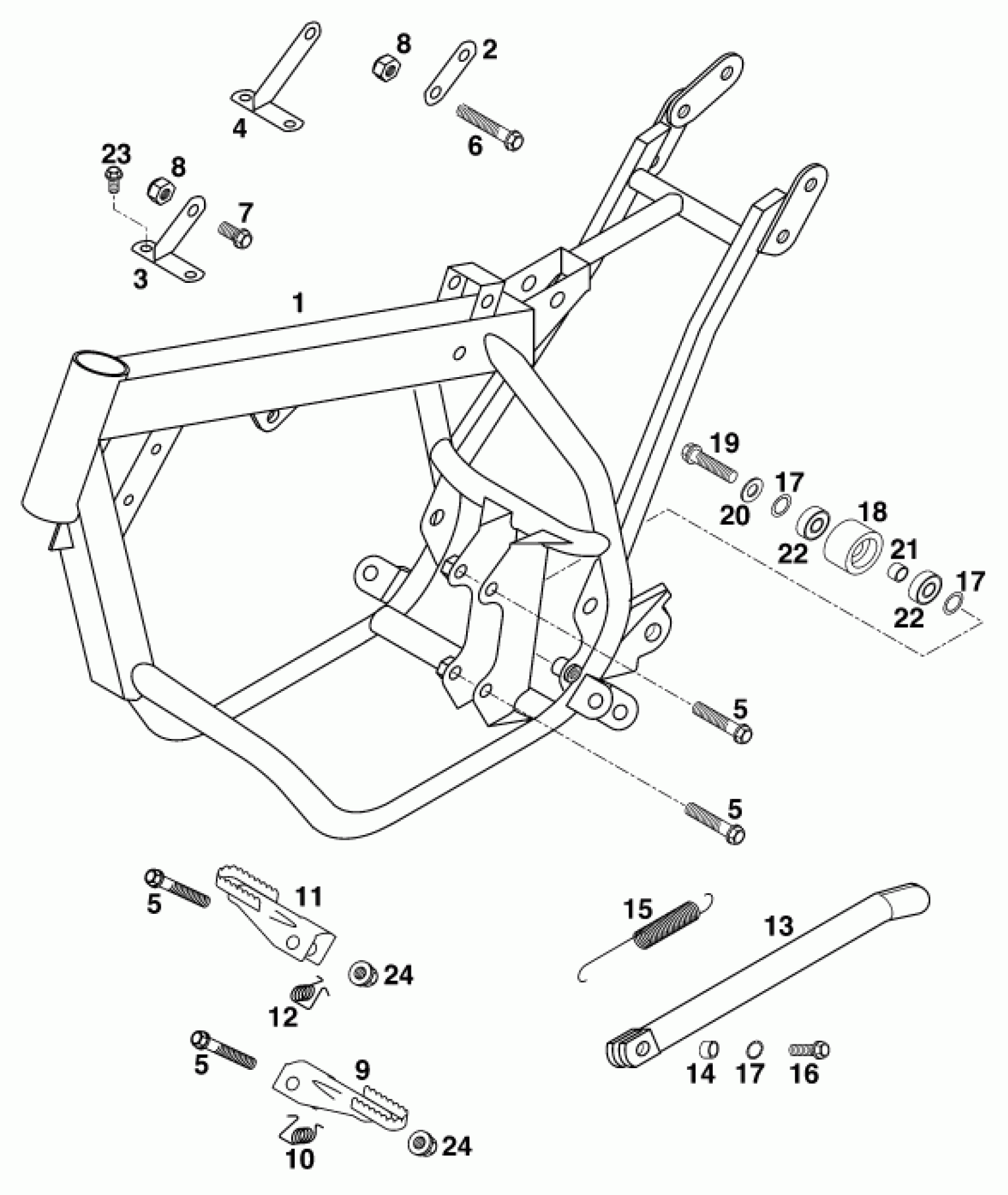

KTM 50 MINI ADVENTURE <1998> FRAME Diagram

#

Description
Price

1

FRAME 50 SXR ADV./PRO JUN. '98

45003001200

Unavailable

1

FRAME 50 SXR PRO SENIOR '98

45003001300

Unavailable

2

ENGINE BRACKET ADVENTURE

45003005000

$4.35

3

ENGINE BRACKET PRO JUNIOR

45003005100

$11.86

4

* ENGINE BRACKET PRO SENIOR

45003005200

Unavailable

5

HH COLLAR SCREW M 8X40 WS=10

0015080403

$4.11

6

HH COLLAR SCREW M8X55 WS=10

0015080553

$5.23

7

HH COLLAR SCREW M 8X16 WS=10

0015080163

$4.11

8

SELF LOCKING NUT DIN0985-M 8

0985080003

Unavailable

9

FOOT REST L/S

45003040000

$13.29

10

SPRING L/S

45003042000

$3.21

11

FOOT REST R/S

45003041000

Unavailable

12

SPRING R/S

45003043000

$2.98

13

SIDE STAND L=290 MM

45003023000

Unavailable

14

BUSHING 8,2 X 12 X 10

57103225000

$4.11

15

SIDESTAND SPRING LONG

51003021000

$7.00

16

HH SCREW DIN0933-M 8X20

0933080203

$5.32

17

LOCK WASHER 8MM

36003014000

$2.05

18

CHAIN ROLL D=30MM

50203053000

$6.72

19

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

20

washer DIN 125 A -8.4

0125080003

$1.49

21

BUSHING 8.2 X 12 X 6

74003021000

$3.08

22

Grooved ball bearing 608 2RS C

0625006087

$21.40

23

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

24

54310086000

Unavailable
