Description

Price

1

FUEL TANK CPL.

45007013000

$154.61

2

FILLER CAP CPL. SMALL

49007008044

$23.65

3

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

4

SHEET MET.SCR.DIN7981- 5,5X39

0981550393

$1.49

5

washer DIN 9021 A - 5.3

0021050003

$1.49

6

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

7

SPECIAL SCREW Z 5X16

0016050153

$1.49

8

FUEL HOSE VITON 7X2MM

58007016001

Unavailable

9

CLAMP YDNAC 10128 12MM

58031005000

$3.08

10

HH SCREW DIN0931-M 6X100

0931061003

$1.49

11

BUSHING

54635036000

$1.49

12

SELF LOCKING NUT M6

56509064000

Unavailable

13

SPACER BUSHING 7X10X7,5

50208020000

$4.11

14

Washer DIN9021-A 6.4

0021060003

$2.05

15

O-RING 11X1,8 NBR 70

55007006200

$2.05

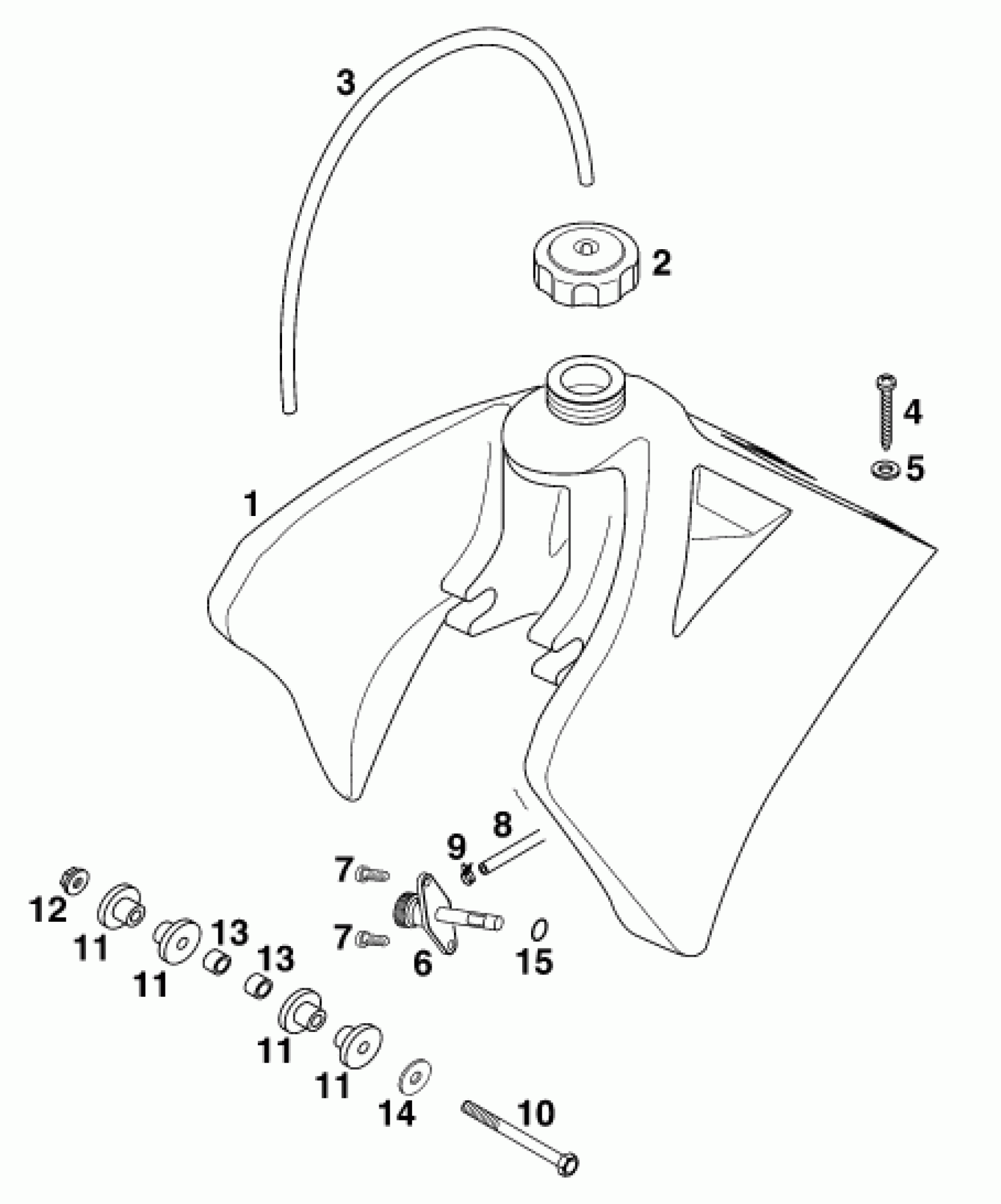

KTM 50 MINI ADVENTURE <1997> TANK, SEAT Diagram

FUEL TANK CPL.

FILLER CAP CPL. SMALL

PVC-HOSE 6X9 MM PER METER

SHEET MET.SCR.DIN7981- 5,5X39

washer DIN 9021 A - 5.3

FUEL COCK CPL. SM. RALLYE'96

SPECIAL SCREW Z 5X16

FUEL HOSE VITON 7X2MM

CLAMP YDNAC 10128 12MM

HH SCREW DIN0931-M 6X100

BUSHING

SELF LOCKING NUT M6

SPACER BUSHING 7X10X7,5

Washer DIN9021-A 6.4

O-RING 11X1,8 NBR 70
