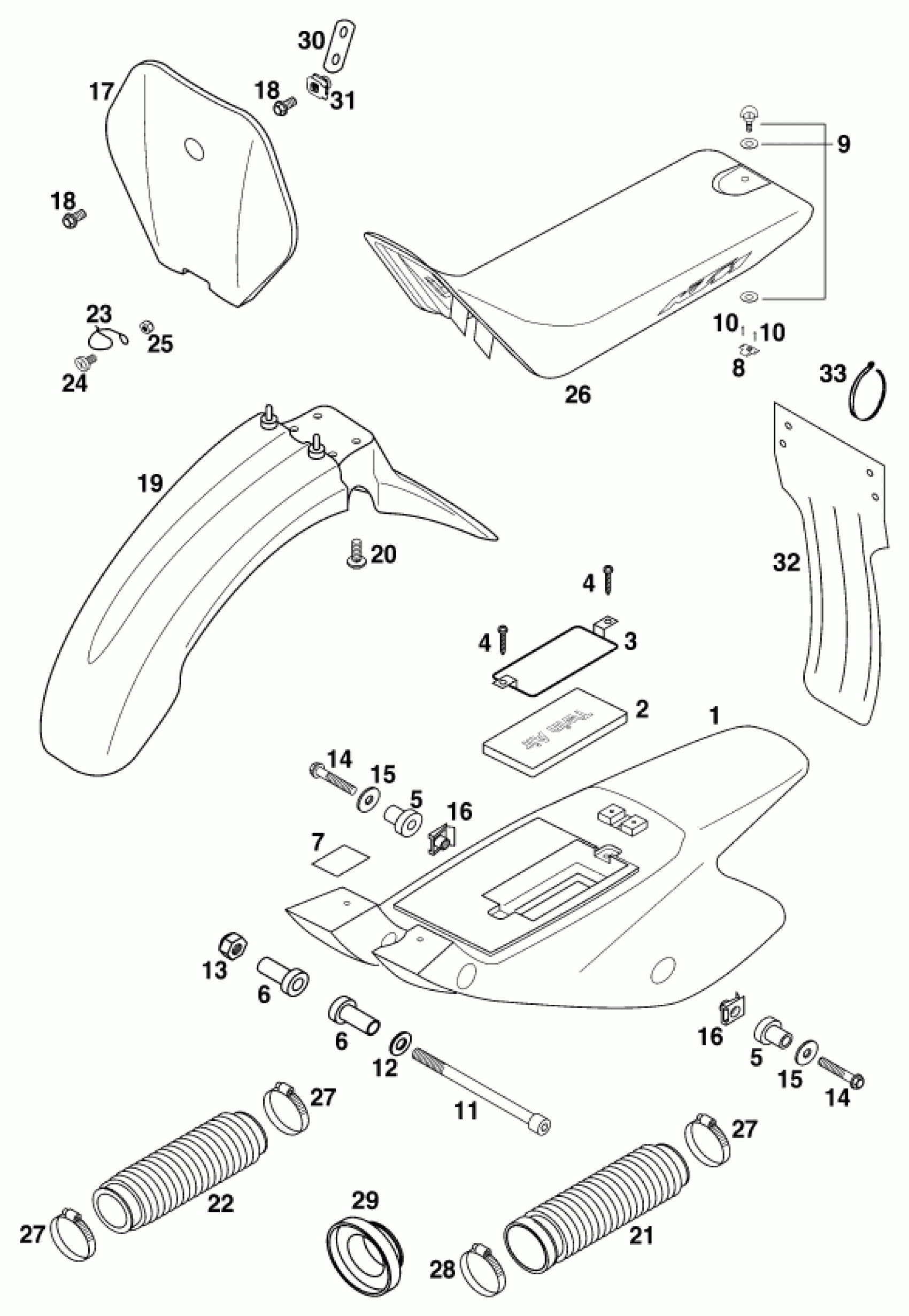

KTM 50 MINI ADVENTURE <1997> MASK, FENDERS Diagram

#

Description
Price

1

REAR FENDER/SUB FRAME

45008013000

$89.84

2

AIRFILTER 122X59X15 MM

45006015000

$6.71

3

FILTER FRAME

45006016000

$8.87

4

SPECIAL SCREW Z 5X16

0016050153

$1.49

5

COLLAR BUSH L=21 MM

45007013050

Unavailable

6

COLLAR BUSH L=38,5 MM

45007013051

Unavailable

7

RUBBER STRIP 85X25X3 MM

54601097000

$1.49

8

Past mount quick lock

45007040050

$4.11

9

QUICK RELEASE CPL. '96

58307040551

$24.21

10

SHEET MET.SCR.DIN7981- 3,5X16

0981350163

$1.49

11

AH SCREW DIN0912-M 8X120

0912081203

Unavailable

12

washer DIN 125 A -8.4

0125080003

$1.49

13

Hexagon nut DIN934 M8

0934080003

$2.05

14

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

15

Washer DIN9021-A 6.4

0021060003

$2.05

16

clip nut M6

54603048100

$4.11

17

* NUMBER PLATE 50 SXR

45008007000

Unavailable

18

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

19

FRONT FENDER 50 SXR

45008010000

$13.70

20

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

21

AIRFILT.BOOT-DELL ORTO 40/35MM

45006026000

$6.80

22

* AIRFILTER BOOT-MIKUNI 32/35

45006026100

Unavailable

23

GUIDE FOR BRAKE HOSE

58011008000

$3.88

24

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49

25

Self locking nut DIN 985 M5

0985050003

$2.05

26

SEAT BLACK

45007040000

$69.23

27

Hose clamp 25-40 SGT 4

10001120000

Unavailable

28

HOSE CLAMP 30-45 SGT

54305058000

Unavailable

29

* REDUCTION RING PVC 59/40 MM

49106826000

Unavailable

30

RETAINING PLATE

45008007050

Unavailable

31

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

32

SPLASH PROTECTOR 50 SXR

45006010000

$21.31

33

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05
