Description

Price

1

* FORK CPL. 32MM ADVENTURE '97

45001000044

Unavailable

2

FORK LEG L/S CPL.

45001001000

Unavailable

3

FORK LEG R/S CPL.

45001002000

Unavailable

4

BOT.FORK PLATE CPL.

45001032014

Unavailable

5

TOP FORK PLATE

45001034014

$93.36

6

AH SCREW DIN0912-M 8X30

0912080303

$2.05

7

* SCREW CAP CPL.

45001008000

Unavailable

8

SLIDER R/S

45001005000

Unavailable

9

* SLIDER L/S

45001004000

Unavailable

10

FORK TUBE D=32 MM

45001003000

$87.08

11

REPAIR KIT CPL.

45001010000

$28.38

12

PRELOAD BUSH L=65MM

45001022000

Unavailable

13

* SPRING

45001021000

Unavailable

14

HANDLEBAR CLAMP CPL.

45001038044

$57.80

15

SEAL KIT

45001014000

$25.56

16

BRAKE CABLE CLAMP RSGU 9/12

45001070000

$5.23

17

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

18

Self locking nut DIN 985 M5

0985050003

$2.05

19

STEERING STEM BEARINGS 50 SXR

45001081000

$12.86

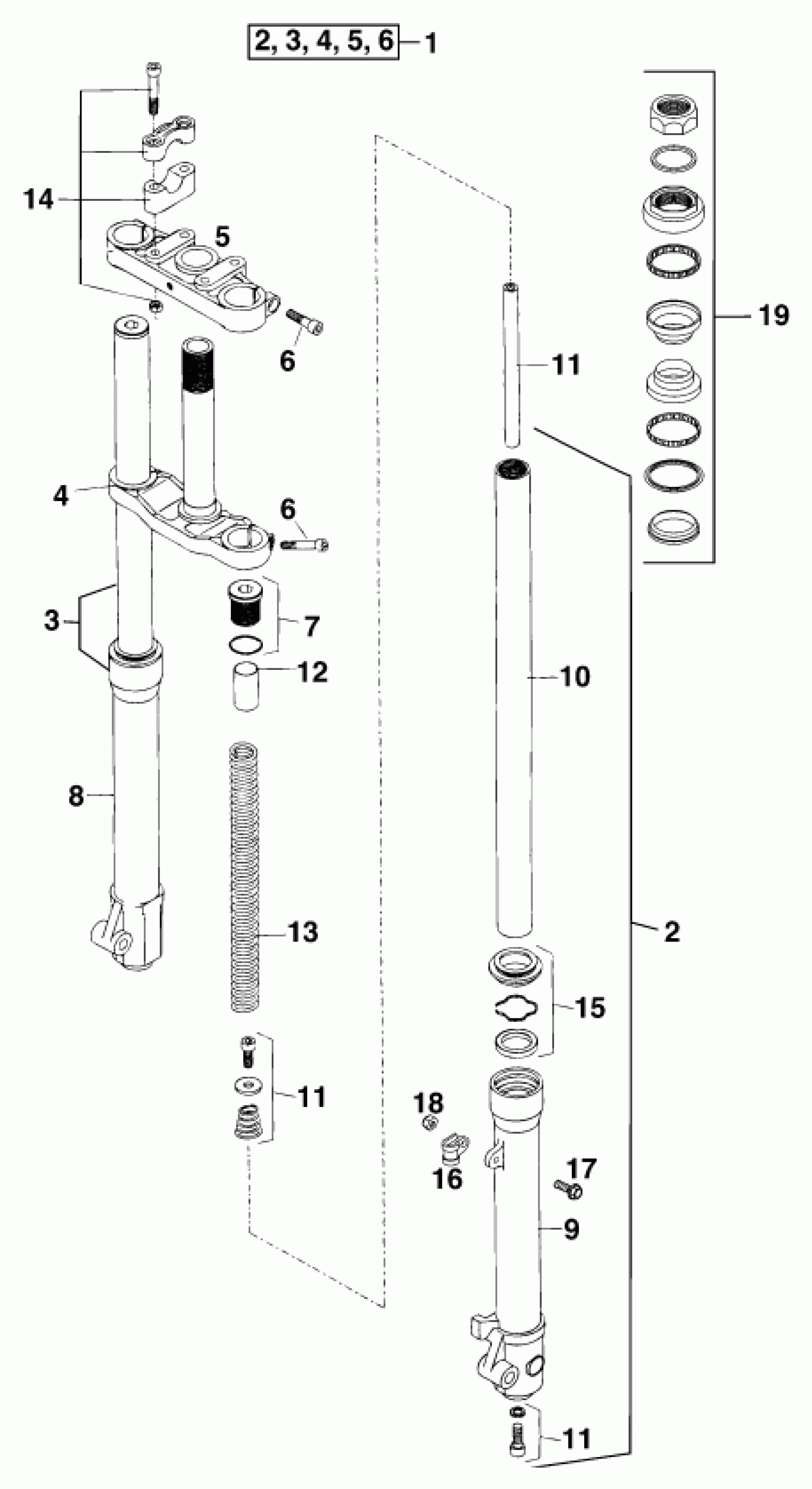

KTM 50 MINI ADVENTURE <1997 FRONT FORK, TRIPLE CLAMP Diagram

* FORK CPL. 32MM ADVENTURE '97

FORK LEG L/S CPL.

FORK LEG R/S CPL.

BOT.FORK PLATE CPL.

TOP FORK PLATE

AH SCREW DIN0912-M 8X30

* SCREW CAP CPL.

SLIDER R/S

* SLIDER L/S

FORK TUBE D=32 MM

REPAIR KIT CPL.

PRELOAD BUSH L=65MM

* SPRING

HANDLEBAR CLAMP CPL.

SEAL KIT

BRAKE CABLE CLAMP RSGU 9/12

HH COLLAR SCREW M 5X12 WS=8

Self locking nut DIN 985 M5

STEERING STEM BEARINGS 50 SXR
