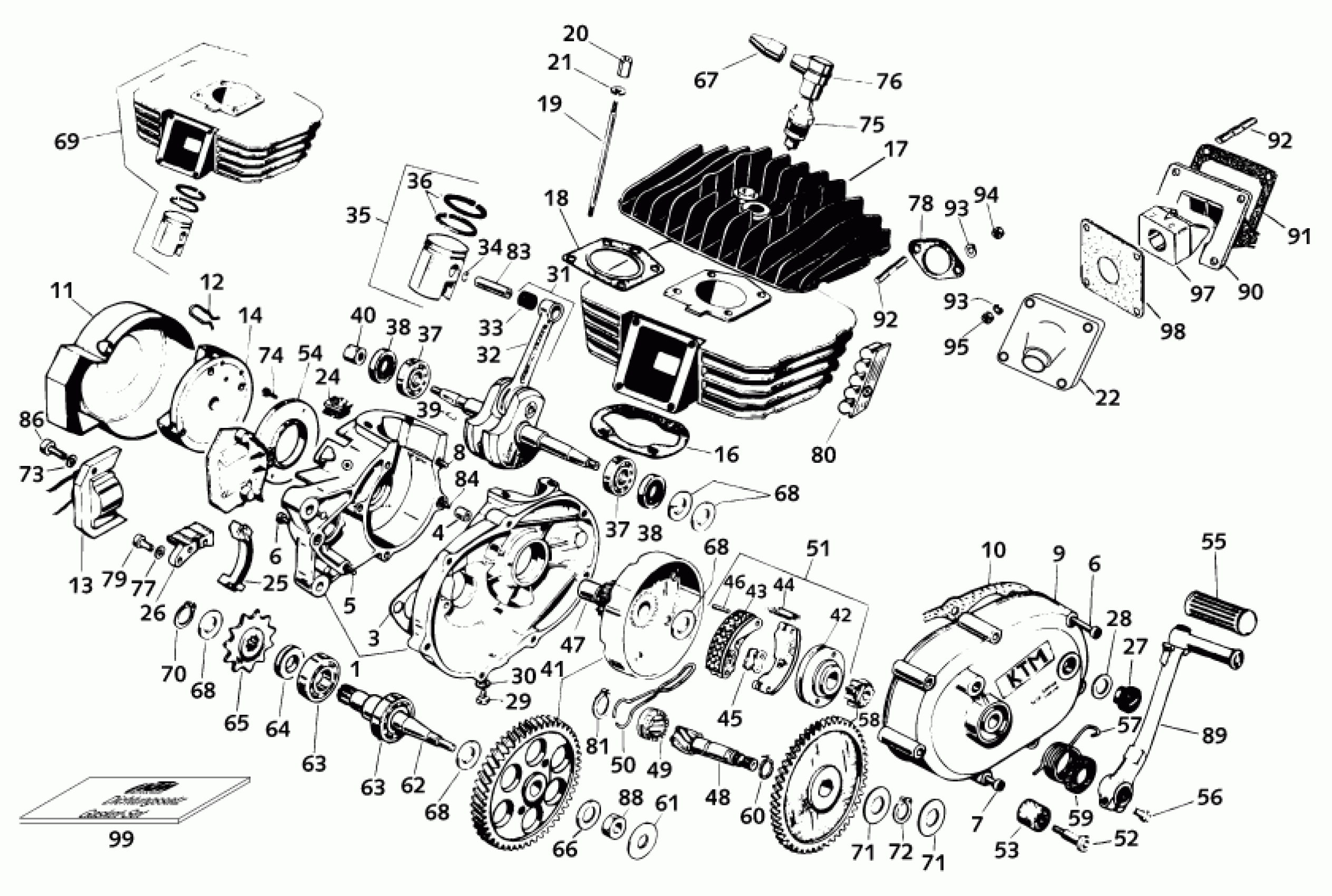

KTM 50 JUNIOR ADVENTURE USA 2001 ENGINE CASE Diagram

ENGINE CASE CPL. '97

45030000044

$187.36

ENGINE CASE GASKET

45030039000

$3.48

TENSION PIN 14X10X8

45030023000

Unavailable

AH SCREW DIN0912-M 6X40 A2

0912060404

$2.05

AH SCREW DIN0912-M 6X45

0912060453

$2.05

AH SCREW DIN0912-M 6X50

0912060503

$1.49

AH SCREW DIN0912-M 6X55

0912060553

$3.08

* CLUTCH COVER

45030001000

Unavailable

GASKET CLUTCH COVER

45030025000

$3.81

* IGNITION COVER

45030002000

Unavailable

* RETAINING SPRING

45030092000

Unavailable

* IGNITION COIL CPL.

45039006000

Unavailable

FLYWHEEL

45039005000

$180.34

* CYL. BASE GASKET

36330030000

Unavailable

CYLINDER HEAD

45030006000

$57.55

* CYL. HEAD GASKET

36330036000

Unavailable

STUD BOLT M6X112-25/15

36330042000

Unavailable

Hex. nut DIN 934 M6

0934060003

$1.49

WASHER DIN0125-A 6,4

0125060003

$1.49

INTAKE FLANGE FOR DELLORTO

36330050000

$17.89

GASKET FOR INTAKE PIPE

49130438000

$1.65

RUBBER GASKET

45030091000

$1.65

* RUBBER FOR FLYWHEEL

45030095000

Unavailable

* SECURING GUIDE

45030047000

Unavailable

OIL LEVEL CONTR. PLUG PVCM14

15130020000

$4.12

SEAL RING 14,2X20X1

15130021000

$1.49

HH SCREW DIN0933-M 8X10

0933080103

$1.49

SEAL RING 8X14X1 AI

45038017000

$5.23

% CRANKSHAFT STROKE 41,7MM

45030018000

$275.82

CON. ROD REPAIR S5GS '98

45030015500

$161.28

* NEEDLE CAGE 12X15X15

45030034000

Unavailable

* CIRCLIP

45030074000

Unavailable

PISTON CPL. 39MM

45030007000

$121.54

PISTON RING D=39MM

36330031000

$18.50

BALL BEARING 6203 TN9.C3

0625062031

$17.26

* RADIAL SEAL RING 17X35X8

15130086000

Unavailable

WOODRUFF KEY DIN6888-2,5X3

0888025030

$4.11

* HH-NUT M8X14, WS=15

16030028000

Unavailable

% CLUTCH HUB 52-Z W.PRIM. 15-Z

45032001000

Unavailable

INNER CLUTCH HUB

45032002000

Unavailable

BUSHING SLEEVE

16032011000

Unavailable

* CLUTCH SPRING

45032005000

Unavailable

JOINT FOR BLOCKS

45032008000

$5.88

ROLLER 3X13,8

45032045000

$1.49

* BUSHING 15X18X18

16032095000

Unavailable

STARTING SHAFT

45033050000

$66.69

* KICKST. RATCHET

45033052000

Unavailable

SPRING

45033056000

$3.48

CLUTCH HUB CPL. MORINI '97

45032002044

Unavailable

STOP SCREW M8

16233039000

Unavailable

RUBBER 10X26X18

16233040000

Unavailable

* GROUND PLATE IGNITION COIL

45039003000

Unavailable

* KICKSTARTER RUBBER

45033076000

Unavailable

HH SCREW DIN0933-M 7X25

0933070253

$1.73

* KICKSTARTER SPRING

45033054000

Unavailable

KICKSTARTER SPROCKETS

45033051000

$188.24

PLASTIC CAP KICKSTARTER

45033077000

$4.29

O-RING 12X 2 NBR 70

0770012020

Unavailable

* WASHER 8,4X25X0,4

45033078000

Unavailable

COUNTER SHAFT

45033002000

$59.05

BALL BEARING 6202 2RS1 C3

0625062027

$14.11

* RADIAL SEAL RING 15X24X5

15133028000

Unavailable

CHAIN SPROCKET 11-Z

45033029000

$32.10

WASHER 12,2X20X1,8

15133031000

$1.49

RUBBER CAP

45039008000

Unavailable

* WASHER 15X22X0,4

45033022000

Unavailable

CYLINDER + PISTON

45030009000

$253.89

CIRCLIP 14X1,2

36333096000

$1.78

WASHER 16X25X0,5

45033023000

$3.08

CIRCLIP DIN0471-16X1

0471160150

$1.49

WASHER DIN0125-A 5,3

0125050003

$1.49

SCREW M4X10

45030090000

$2.05

SPARK PLUG BOSCH W 4 AC

45039093004

$8.54

* SPARK PLUG CONNECTOR

45039090000

Unavailable

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

$1.49

EXHAUST GASKET ENGINE S5-E

45030046000

$1.90

AH SCREW DIN0912-M 5X12

0912050123

$2.05

CIRCLIP 17,5X1,2

45033024000

$1.49

* COMP. RING D=39MM

36330032000

Unavailable

* PISTON PIN 8X12X31,4

15130033000

Unavailable

AH SCREW DIN0921-M 6X60

0912060603

$1.73

AH SCREW DIN0912-M 5X20

0912050203

$1.49

HH SCREW DIN0933-M 6X25

0933060253

$2.05

HH-NUT M12X1,25 6MM HIGH

15133032000

$2.81

* STARTING LEVER

45033070000

Unavailable

SELF LOCKING NUT M 6 COPPER

51010086000

$1.57

HH SCREW DIN0933-M 6X20

0933060203

$1.49

HH-NUT M6 36MM HIGH WS=12

45030079000

$4.61

GASKET SET GASKETS

45030099000

Unavailable

GASKET SET SEAL RINGS

45030099100

$34.93
