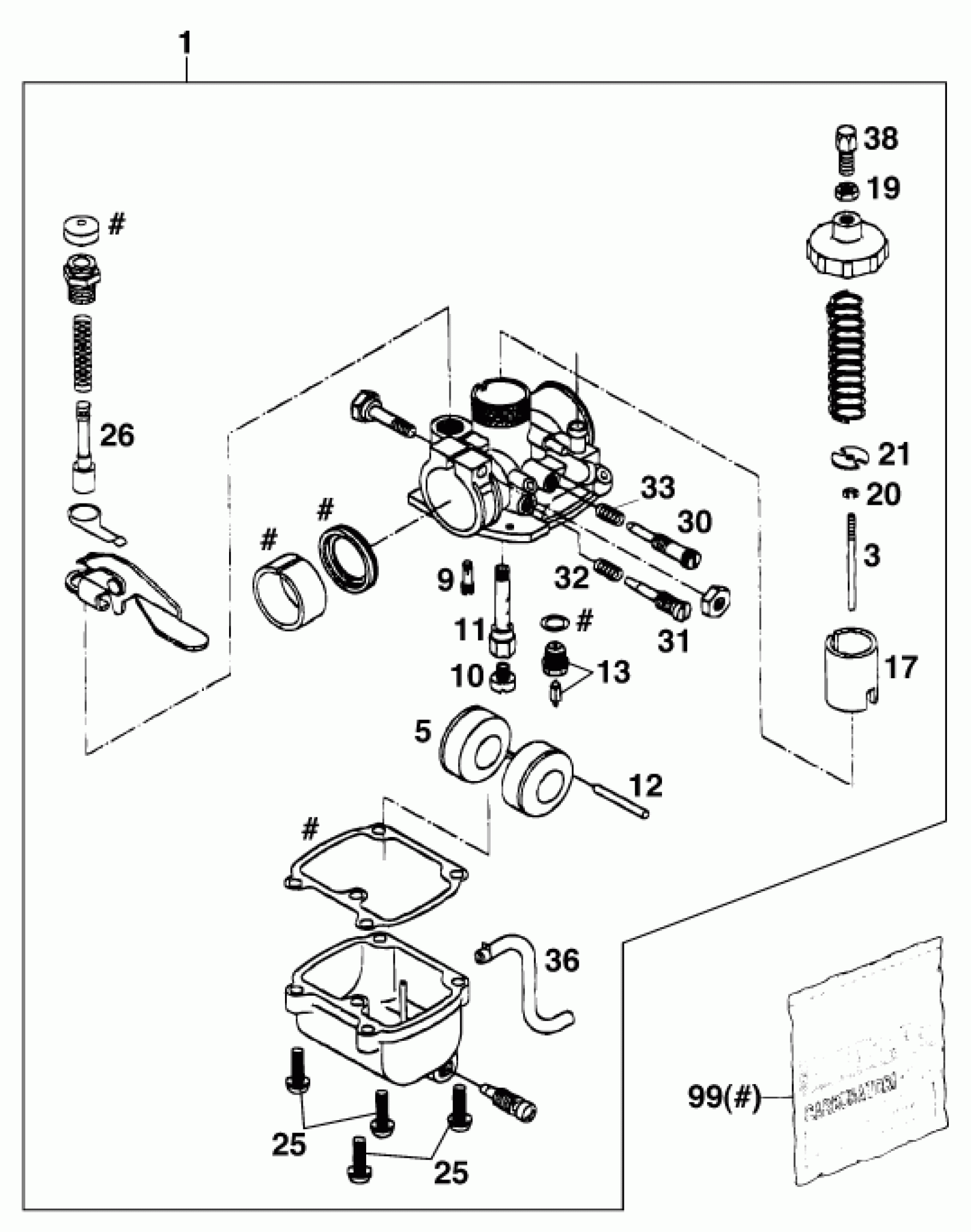

KTM 50 JUNIOR ADVENTURE USA 2001 CARBURETOR Diagram

#

Description
Price

1

* CARBURETOR DELLORTO SHA1412L

45031101044

Unavailable

2

THROTTLE SLIDE

15131135000

Unavailable

3

JET 54

15131123054

Unavailable

3

JET 55

15131123055

Unavailable

3

JET 56

15131123056

Unavailable

3

JET 57

15131123057

Unavailable

3

JET 58

15131123058

Unavailable

3

JET 60

15131123060

$4.81

3

JET 62

15131123062

Unavailable

3

JET 65

15131123065

Unavailable

4

* FLOAT

15131109000

Unavailable

5

COLD START FLAP (FLOW RATE 50)

15131133000

Unavailable

6

* CYL.HEAD SCREW DIN0084-M 4X1

0084040143

Unavailable

8

ADJUSTING SCREW M6X0,75

45031025000

$4.39

9

COVER CPL.

15131127000

Unavailable

13

SLIDE SPRING

15131130000

Unavailable

14

* REDUCTION RING FOR DELLORTO

45031539000

Unavailable

15

Hex. nut DIN 934 M6

0934060003

$1.49

16

FUEL FILTER

15131112000

$5.23

17

* TUBE CONNECTION

15131113000

Unavailable

18

* CYL.HD SCREW DIN0084-M 5X12A

0084050123

Unavailable

19

SPRING

15131129000

Unavailable

20

SPECIAL SCREW M4

15131141000

Unavailable

22

* FLOAT NEEDLE

15131120000

Unavailable

23

PIN 2X16,5

15131108000

Unavailable

25

FLOAT CHAMBER

15131111000

$12.94

26

CYL.SCREW DIN0084-M 4X20 A

0084040203

$1.49

27

SPRING 0,8X12

15131118000

Unavailable

28

* ADJUSTING SCREW

15131119000

Unavailable

29

CYL.HEAD SCREW DIN0084-M 6X28A

0084060283

$1.49

30

* SPRING WASHER DIN0137-B 4

0137040003

Unavailable

31

GASKET SET SHA 1412 L

15131099000

$21.68
