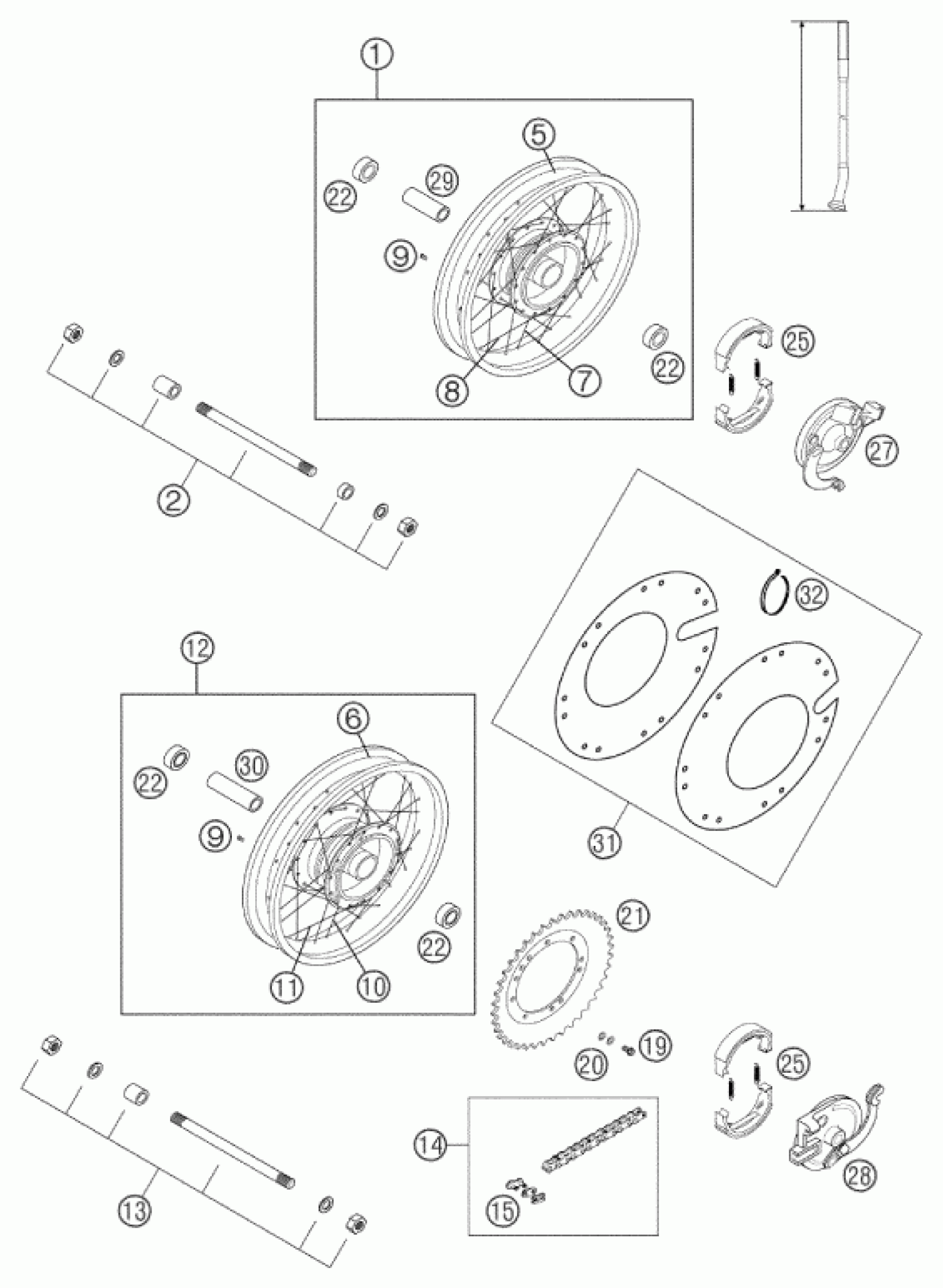

KTM 50 JUNIOR ADVENTURE 2003 FRONT WHEEL Diagram

#

Description
Price

1

FRT WHEEL CPL.1,5X10'' STEEL

45109001344

$189.12

2

AXLE FRONT CPL. L=202MM

45009081000

$30.83

5

RIM 1,50X10'' STEEL

45009070000

$108.59

6

REAR RIM 1,50X10'' STEEL

45010070000

Unavailable

7

SPOKE 3X70X3,5MM-95°

45009071200

$1.73

8

SPOKE 3X69X4,5MM-80°

45009171200

$1.49

9

SPOKE NIPPLE 3MM

45109072000

$2.05

10

SPOKE 3X72X4,2MM-100°

45010071200

$2.05

11

SPOKE 3X72X5MM-65°

45010171200

$1.49

12

RR WHEEL-SP CPL.1,5X10''STEEL

45110001244

$355.95

13

AXLE REAR CPL. L=210MM

45010081000

$43.38

14

CHAIN 1/2X3/16'' SX 50

45110165104

$16.59

15

CONNECTING LINK 50 SX

45110166000

$4.24

19

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

20

Pair of washers M6 NORDLOCK

50233041000

$4.11

21

SPROCKET 44-T

45010051044

Unavailable

21

SPROCKET 45-T

45010051045

Unavailable

21

SPROCKET 46-T

45010051046

Unavailable

21

SPROCKET 48-T

45010051048

$26.36

22

deep groove ball bearing 6001.

0625060016

$18.88

25

BRAKE SHOES GARN.

45009035000

$25.52

27

SUPPORTING PLATE CPL. FRONT

45009030000

$63.20

28

SUPPORTING PLATE CPL. REAR

45010030000

$116.49

29

DISTANCE TUBE FRONT

45009011000

$20.37

30

DISTANCE TUBE REAR

45010011000

$17.48

31

WHEEL COVER CPL. 50SX LC 03

45110092000

$71.19

32

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05
