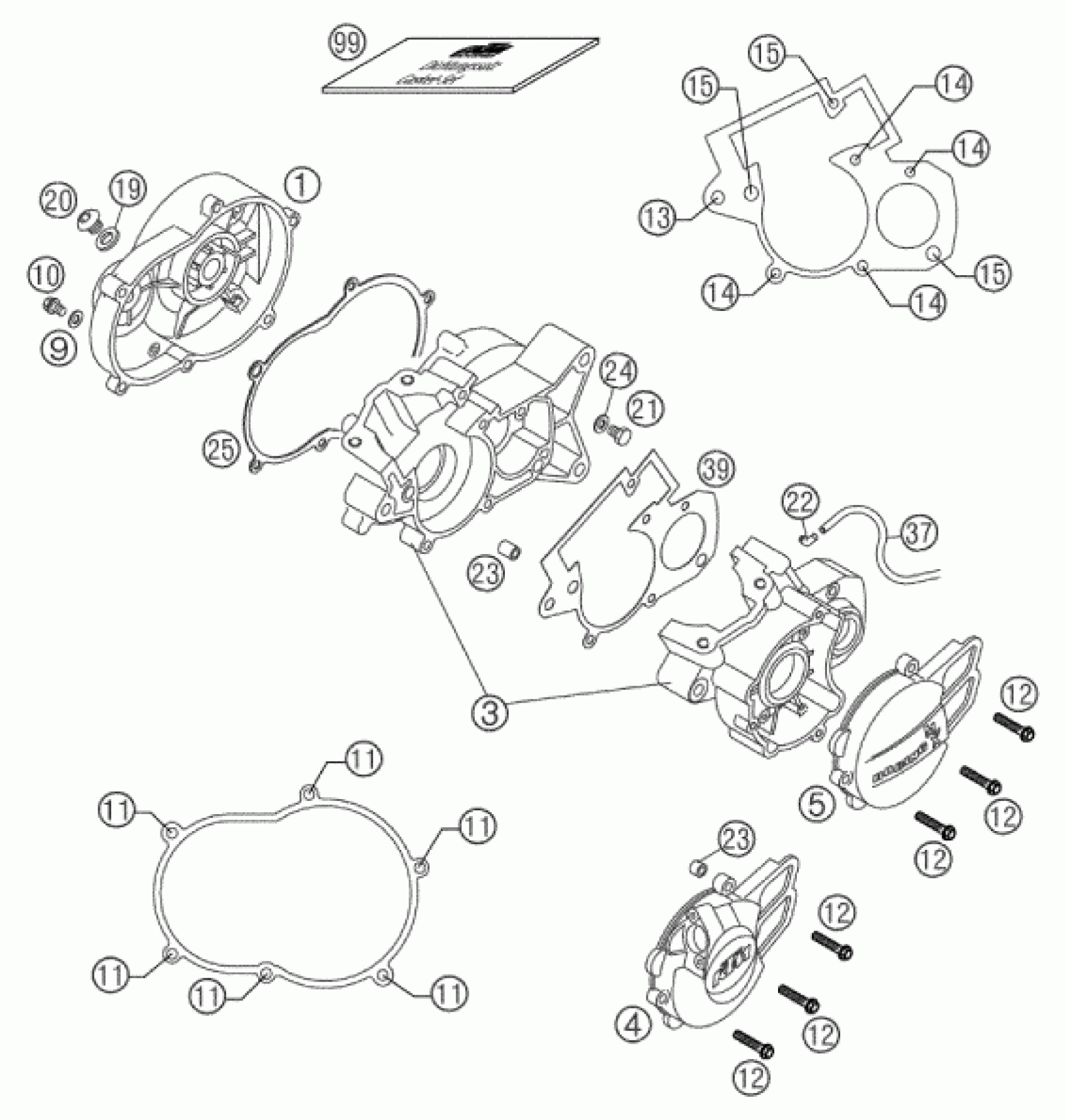

KTM 50 JUNIOR ADVENTURE 2003 ENGINE CASE Diagram

#

Description
Price

1

CLUTCH COVER 50 2004

45130001100

$75.32

3

ENGINGE CASE 50CCM LC 2001

45130000044

$199.98

4

IGNITION COVER 50 GS 2002

45130502100

$56.69

5

IGNITION COVER 50 AC 2002

45130502000

$11.82

9

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

10

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

11

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

12

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

13

HH COLLAR SCREW M 8X60 WS=10

0015080603

$3.08

14

AH SCREW DIN0912-M 6X35

0912060353

$2.05

15

AH SCREW DIN0912-M 6X40 A2

0912060404

$2.05

19

GASKET FOR OIL PLUG

45130019000

$1.73

20

OIL PLUG 50 LC 2001

45130020000

$9.29

21

OIL DRAIN PLUG M10 WS=14

46030021000

Unavailable

22

ANGLE PIECE 50CCM LC 2001

45130022000

$5.88

23

DOWEL 7X9X10

45130023000

Unavailable

24

sealing ring DIN 7603 10x14x1

0603100141

$2.05

25

GASKET FOR CLUTCH COVER 2001

45130025000

$6.54

37

PVC-HOSE 3X5MM

52031137001

Unavailable

39

ENGINE CASE GASKET 50 LC 2001

45130039000

$4.11

99

GASKET SET CPL. 50 AC 2002

45130599000

$86.39
