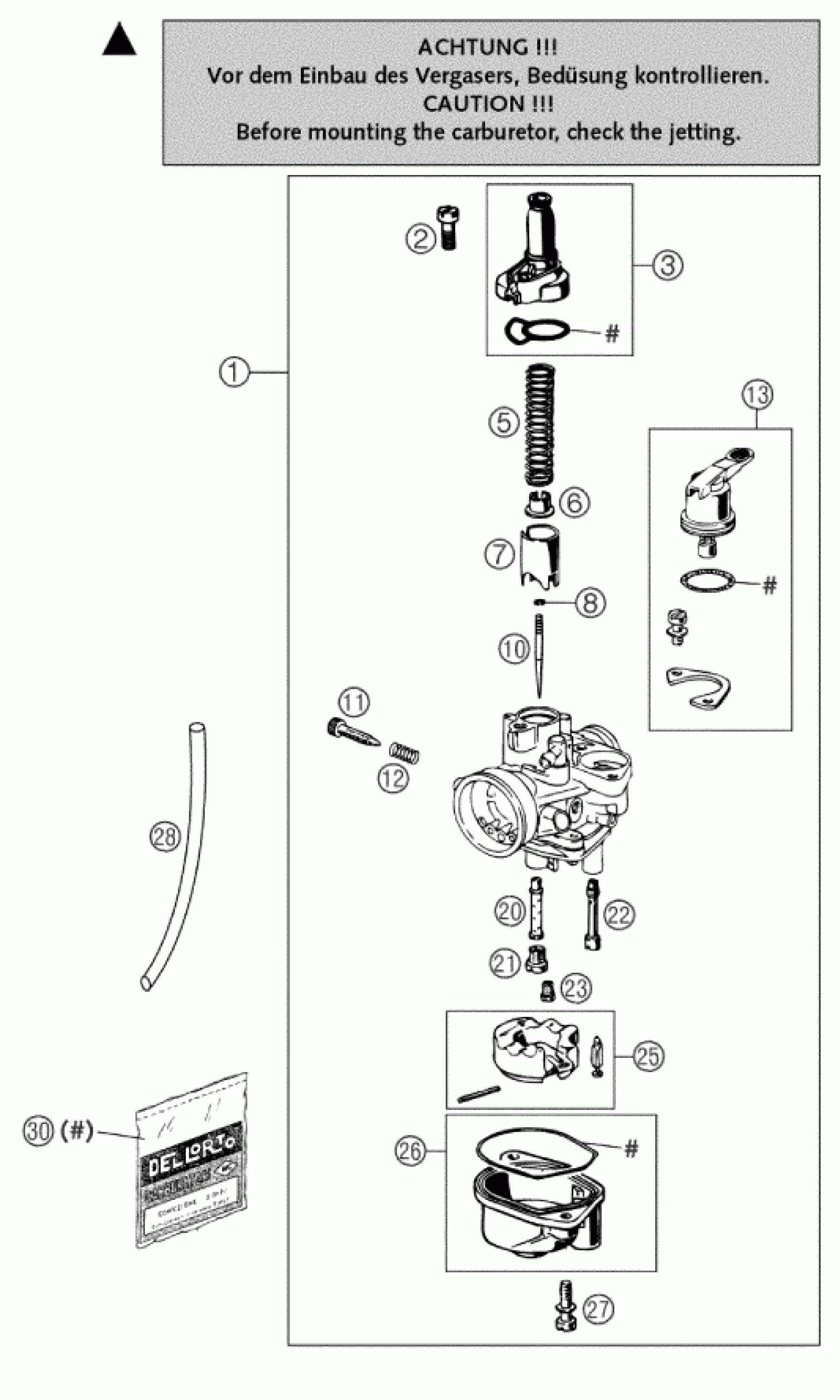

KTM 50 JUNIOR ADVENTURE 2003 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR PHVA 12XS 50 GS

45131001200

$356.97

1

CARBURETOR DELLORTO 14PHVA DS

45131001000

$279.57

2

CYL.HEAD SCREW DIN0084-M 5X16A

0084050163

$1.49

3

CARBURETOR COVER DELLOR. 12-14

45131527000

$21.40

5

SPRING

45131530000

$4.11

6

SPRING CAP

45131531000

$3.08

7

THROTTLE VALVE 40

45131535000

$47.02

8

CLAMP SPRING

45131545000

$2.05

10

JET NEEDLE A10

45131534010

$18.41

11

IDLE ADJUST SCREW

45131517000

$5.60

12

SPRING

45131516000

$2.05

13

STARTING LEVER CPL. DELL.12-14

45131548000

$50.01

20

ATOMIZER 211FA

45131536000

$19.81

21

JET 60 DELLORTO M6X0,75

59030054000

$13.08

21

MAIN JET 70 DELLORTO

45131023070

Unavailable

21

MAIN JET 80

57031523080

$8.41

22

STARTING JET 60

45131551060

$8.78

23

IDLING JET 35

45131507035

Unavailable

23

IDLING JET 38

45131507038

$6.44

23

IDLING JET 45

45131507045

$6.63

25

FLOAT CPL.

45131509000

$34.03

26

FLOAT BOWL DELLORTO 12-14

45131511000

$12.15

27

CYL.SCREW DIN0084-M 4X20 A

0084040203

$1.49

28

PVC-HOSE 3X5MM

52031137001

Unavailable

30

GASKET SET DELLORTO 12-14 PHVA

45131599000

$20.00
