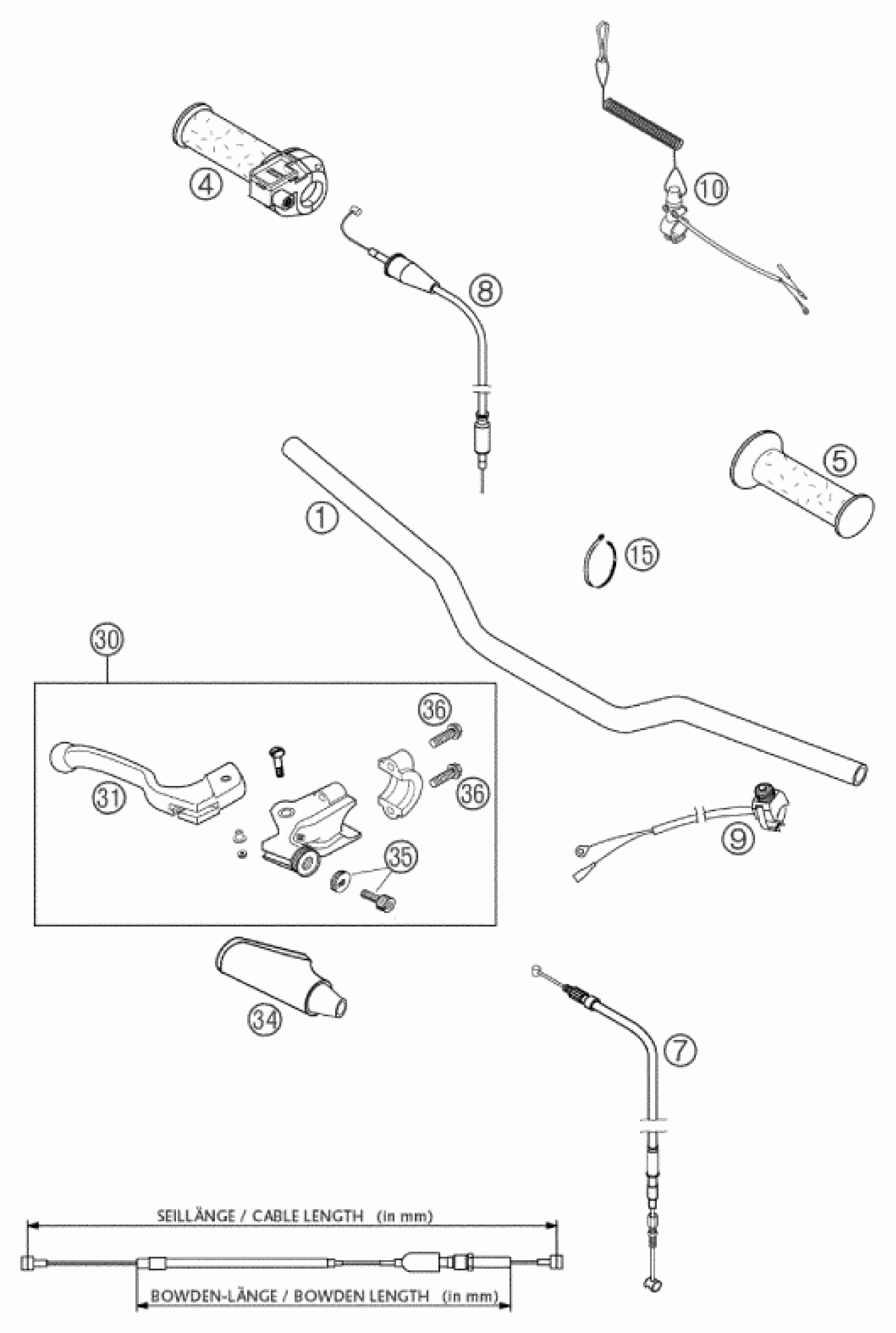

KTM 50 JUNIOR ADVENTURE 2002 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR 50 SXR

45002001000

Unavailable

4

TWIST GRIP CPL. 50 SXR

45002010000

$33.65

5

RUBBER GRIP

45002039000

$22.71

7

BRAKE CABLE FRONT 898/772 01

45113010000

$30.83

7

BRAKE CABLE FRONT 990/864 01

45113010100

$28.85

7

BRAKE CABLE REAR 1187/1052 01

45113070000

$33.71

7

BRAKE CABLE REAR 1287/1152 01

45113070100

$32.73

8

THROTTLE CABLE JUN.762/644 02

45102091100

$19.41

8

THROTTLE CABLE SEN.849/726 01

45102091000

$21.31

9

Kill switch

50311089200

$37.58

10

S.CIRCUIT BUTTON W. RIP CORD

45011089044

Unavailable

15

Cable tie 200/4.6mm black

44011076200

Unavailable

15

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

30

HAND BRAKE LEVER CPL. R/S 2001

45113001044

$24.89

30

CLUTCH LEVER CPL. 60/65 SX '99

46002040100

$40.10

31

HAND BRAKE LEVER LOOSE 2001

45113042000

$25.05

31

CLUTCH LEVER LOOSE 60/65SX '99

46002042100

$24.46

34

PLASTIC CAP FOR CLUTCH LEVER

46002048000

$4.21

35

ADJUST SCREW CLUTCH LEVER 2000

46002043100

$4.35

36

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08
