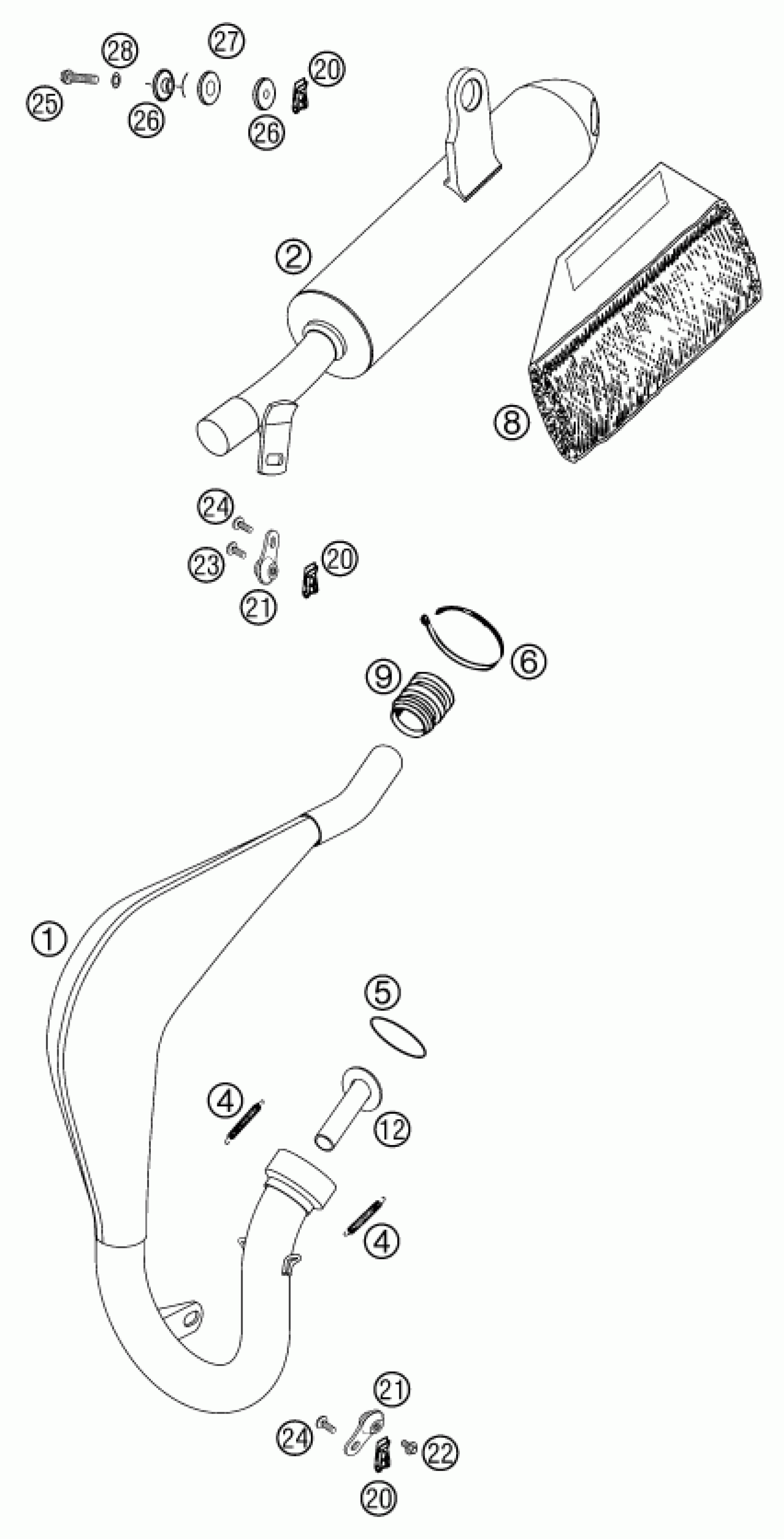

KTM 50 JUNIOR ADVENTURE 2002 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST PIPE 50 ADVENTURE 2002

45105008000

$157.04

2

SILENCER SX JUNIOR 2002

45105079100

$72.19

2

SILENCER SX SENIOR 2001

45105079000

$194.94

4

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

5

O-RING 32,00X3,00 VITON

0770320030

$4.11

6

Cable tie 200/4.6mm black

44011076200

$1.49

9

RUBBER SLEEVE D=21MM/23MM '93

54605057000

$20.66

8

ROCKWOOL PREFOMED 50 2002

45105079056

$27.76

12

EXHAUST THROTTLE CPL. MINI 02

45105083000

$9.37

20

clip nut M6

54603048100

$4.11

21

Silent block for exhaust pipe

50305012000

$19.91

22

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

23

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

24

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

25

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

26

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

27

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

28

spring washer DIN 137 B - 6

0137060003

$2.05
