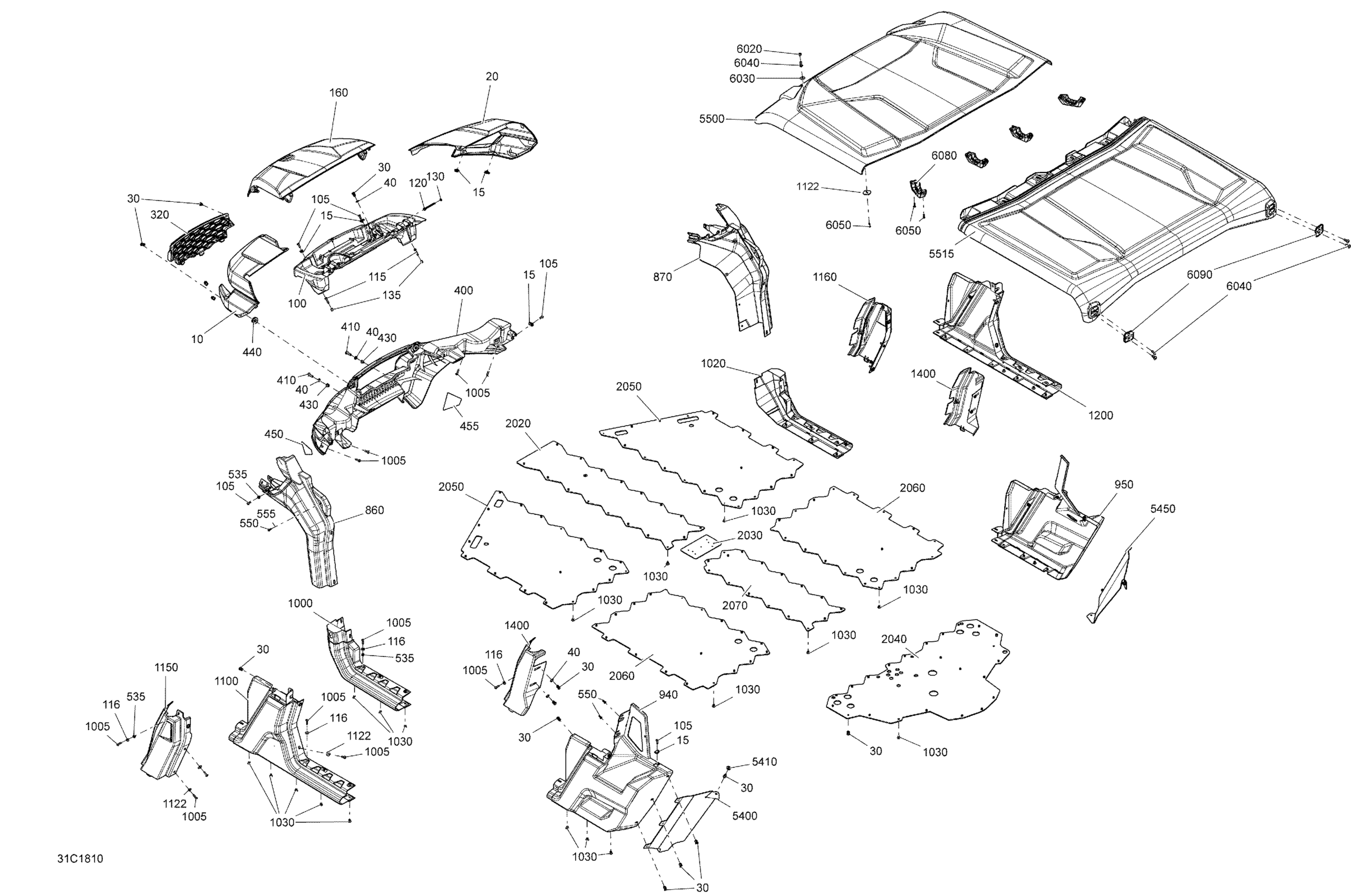

Can-Am Traxter MAX HD10, 2018 Body Traxter MAX HD10- XT- Pure Magnesium Diagram

#

Description
Price

10

Magnesium LH Front Fender | Magnesium Model

705011409

$204.99

15

Panel Nut M6 X 1.0

250100198

$2.11

20

Magnesium RH Front Fender | Magnesium Model

705011410

$204.99

30

Tuflok Plastic Rivet

293150230

$1.47

40

Washer

503192494

$3.17

100

Service Center

705011391

$64.99

105

Torx Screw M6 X 20

250000722

$1.68

115

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

116

Stainless Steel Flat Washer

234062670

$2.11

120

Hex. Flange Screw M6 X 75

207667554

$4.44

130

Push Nut

732610072

$2.19

135

Bushing

293900125

$2.69

160

Magnesium Front Service Cover | Magnesium Model

705011401

$389.99

320

Grid Front Fascia

705009364

$28.99

400

Front Facia

705011392

$254.99

410

Torx Screw M8 X 30

250000886

$2.11

430

Hex. Flange Elastic Nut M8

233281414

$1.47

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$13.49

455

RH Front Reflector

704905073

$13.49

535

Insert Half Hex Body M6 x 1.0

250100199

$3.19

550

Torx Screw K50 X 16

250000720

$1.69

555

Flat Washer M5

234051670

$2.11

860

LH Front Lateral Panel

705008152

$62.99

870

RH Front Lateral Panel

705008153

$62.99

940

Rear LH Side Panel | Order 705012704 panel + 414916600 Nylon Cap

705012704

$93.99

950

RH Rear Side Panel

705012705

$114.99

1000

Deep Black, LH Central Panel

705019037

$71.99

1005

Torx Truss Screw M6 X 25

250000807

$2.11

1020

Deep Black, RH Central Panel

705019038

$74.99

1030

Pop Rivet 3/16”

293150108

$1.19

1100

LH Middle Side Panel

705013112

$109.99

1122

Flat Washer M6.6 X 22

250200162

$2.32

1150

LH Middle Cage Cover

705010601

$38.99

1160

RH Middle Cage Cover

705010602

$38.99

1200

RH Middle Side Panel

705013661

$109.99

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$82.99

2020

Central Skid Plate

705009151

$62.49

2030

Connection Plate

705010884

$31.99

2040

Rear Skid Plate

705011292

$88.99

2050

Lateral Skid Plate

705010422

$86.99

2060

Rear Side Skid Plate

705010587

$86.99

2070

Rear Central Skid Plate

705010588

$62.49

5400

LH Rear Deflector

705010426

$53.99

5410

Flat Washer 8 mm, Nylon

292001663

$1.47

5450

RH Rear Deflector

705010427

$53.99

5500

Sport Roof Kit MAX | Package XT

715003038

$889.99

6020

Hex. Nut M8

232081414

$0.72

6030

Flat Washer 8 mm

234082410

$1.47

6040

Torx Truss M8 X 25

250000874

$2.11

6040

Torx Truss M8 X 25

250000874

$2.11

6050

Torx Screw Truss Head K50X20 T20

250000760

$2.11

6080

Roof Anchor

705800131

$9.29

6090

Roof Cap

705800058

$3.99

5520a

Outer Seal

705800054

$35.99
