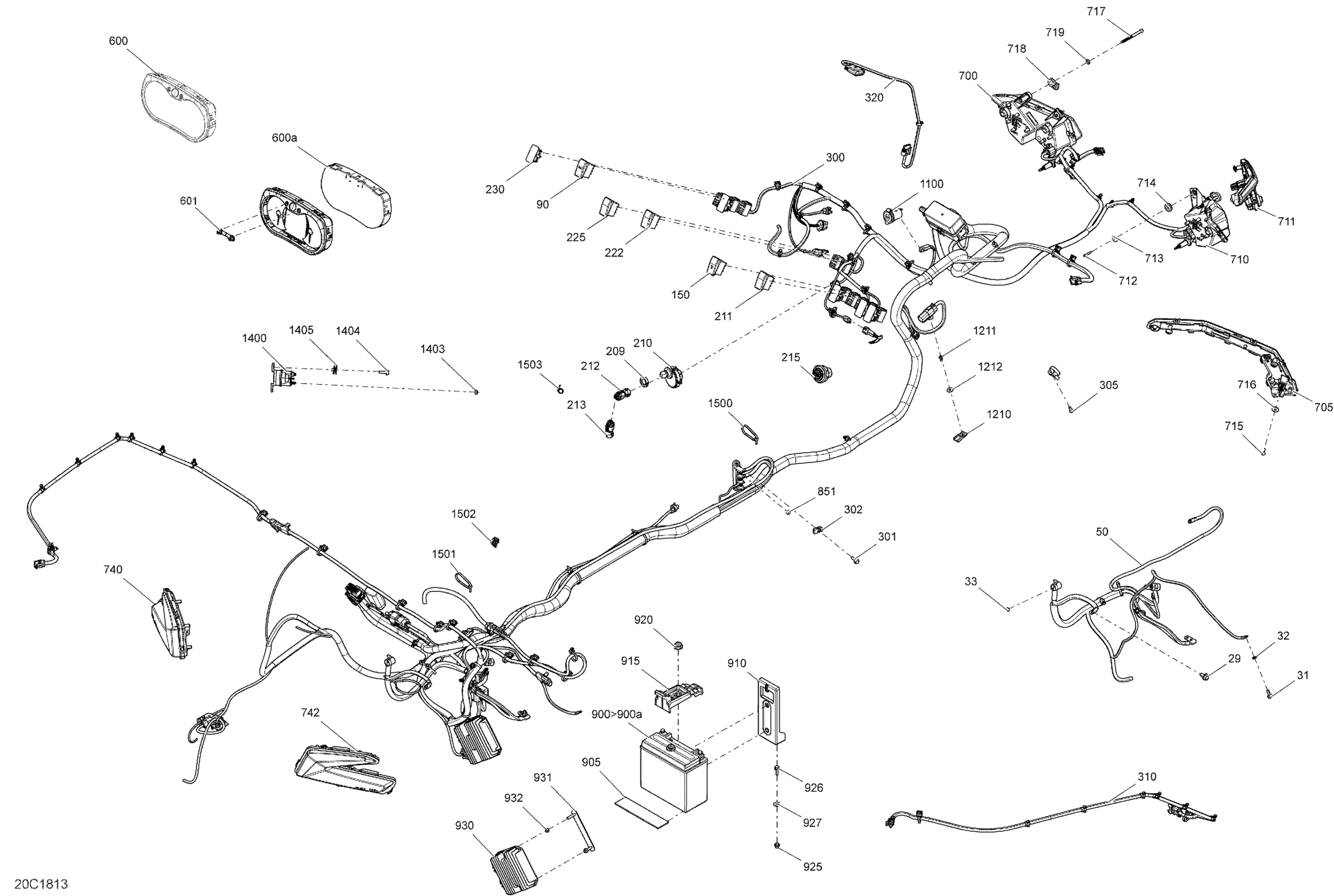

Can-Am Maverick X3 Turbo R - STD_XDS DPS_XRS DPS, 2018 Electrical - System Diagram

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

External Serrated Lock Washer 6 mm

234461608

$0.92

Elastic Stop Nut M6

232561414

$1.55

Starter Cable

710004863

$83.05

Light Switch

710004492

$46.12

2 X 4 Switch

710004814

$32.28

Safety Nut (DESS Switch)

278002963

$2.72

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

Switch DPS

710001781

$23.74

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

Green Key RFID | Except Model Europe, Except T3

710005232

$55.35

Start-Stop Button | Not Shown

710005213

$59.97

Switch PPS Sport

710003541

$18.43

Switch, Over ride

710002053

$19.27

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Harness-Ass'y

710005788

$756.89

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Screw PT Type K-50 X 16

250000959

$1.74

Connector Plug | Includes 306 to 306b

710005956

$3.68

Rear Harness

710004776

$216.89

Cable Throttle Pedal

710005291

$226.12

Speedometer | Includes 600 to 600a

710006334

$415.35

Lens | XTP

415129349

$23.05

Speedometer Button | XTP

415129355

$13.94

LH Front Auxiliary LED Light

710008811

$441.74

LH Signature Beam

710004994

$161.51

RH Front Auxiliary LED Light

710008812

$432.24

RH Signature Beam

710004995

$161.51

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

Shoulder Bushing

710004749

$2.75

Grommet

709000582

$4.38

Torx Screw K50 X 16

250000720

$1.39

Stainless Steel Flat Washer

234062670

$1.74

Ajustment Screw

710005837

$6.45

Adjustment Guide

710005097

$8.45

O-Ring

293300192

$3.85

LH Tail Light

710004743

$129.20

RH Tail Light

710004744

$129.20

Elastic Stop Nut M6

232561434

$1.55

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Battery Bolt Kit

250000282

$2.95

Rubber Pad

293830126

$11.01

Fixation Plate

710004788

$9.77

Fixation Plate

710004789

$6.92

Stopper Rubber

705014429

$6.09

Threaded Insert M6 X 1.0

250100242

Unavailable

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Flat Washer 6 mm

234062410

$0.64

Voltage Regulator

710005842

$159.87

Bracket

710005782

$11.00

Elastic Stop Nut M6

232561414

$1.55

12V Power Outlet

710005374

$27.27

Clip

270000141

$8.33

Washer | DS 650 X

391301600

$0.48

Starter Relay

278003012

$35.07

Elastic Stop Nut M6, Brass

232561200

$3.51

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Pop Rivet 3/16"

390402300

$0.75

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 368 mm

293750008

$0.85
