Description

Price

210

Clip

705010721

$2.61

2500

Silver Platinum, LH Door Panel

705012581

$214.99

2510

Deep Black, LH Front Door

705018468

$159.99

2510

Deep Black, LH Front Door

705018468

$159.99

2520

Door Support

705011187

$12.99

2525

Hex Screw Washer Head M8 X 20

207582054

$3.17

2526

Flat Washer M8

234081430

$2.11

2530

Flat Washer 8 mm, Nylon

234081100

$1.39

2540

LH Latch

705013095

$43.99

2550

Belt

293850135

$14.99

2551

Pop Rivet 3/16”

293150108

$1.19

2560

Belt Stopper

293730070

$2.29

2565

Belt Stopper

293730072

$2.29

2570

LH Latch Cover

705010734

$38.99

2580

Panel Nut M6 X 1.0

250100198

$2.11

2585

Torx Truss Screw M6 X 16

250000721

$1.69

2586

Stainless Steel Flat Washer

234062670

$2.11

2590

Pop Rivet 3/16"

293150103

$0.55

2610

Panel Nut M6 X 1.0

250100198

$2.11

2620

Torx Screw M6 X 20

250000722

$1.68

2630

Stainless Steel Flat Washer

234062670

$2.11

2640

Door Belt

293850129

$16.49

2650

Pop Rivet 3/16"

293150103

$0.55

2700

LH Lower Door Panel

705010732

$58.99

2700

LH Lower Door Panel

705010732

$58.99

2710

Torx Truss Screw M6 X 50

250000749

$3.17

2710

Torx Truss Screw M6 X 50

250000749

$3.17

2720

Stainless Steel Flat Washer

234062670

$2.11

2720

Stainless Steel Flat Washer

234062670

$2.11

2730

Hex. Flange Elastic Nut M6

233261466

$2.00

2730

Hex. Flange Elastic Nut M6

233261466

$2.00

2800

Silver Platinum, RH Door Panel

705012582

$214.99

2810

Deep Black, RH Front Door

705018470

$159.99

2810

Deep Black, RH Front Door

705018470

$159.99

2820

Door Support

705011187

$12.99

2825

Hex Screw Washer Head M8 X 20

207582054

$3.17

2826

Flat Washer M8

234081430

$2.11

2830

Flat Washer 8 mm, Nylon

234081100

$1.39

2840

RH Latch

705013096

$43.99

2850

Belt

293850135

$14.99

2851

Pop Rivet 3/16”

293150108

$1.19

2860

Belt Stopper

293730070

$2.29

2865

Belt Stopper

293730072

$2.29

2870

RH Latch Cover

705010735

$39.99

2880

Panel Nut M6 X 1.0

250100198

$2.11

2885

Torx Truss Screw M6 X 16

250000721

$1.69

2886

Stainless Steel Flat Washer

234062670

$2.11

2890

Pop Rivet 3/16"

293150103

$0.55

2910

Panel Nut M6 X 1.0

250100198

$2.11

2920

Torx Screw M6 X 20

250000722

$1.68

2930

Stainless Steel Flat Washer

234062670

$2.11

2940

Door Belt

293850129

$16.49

2950

Pop Rivet 3/16"

293150103

$0.55

3000

RH Lower Door Panel

705010733

$61.99

3000

RH Lower Door Panel

705010733

$61.99

3010

Torx Truss Screw M6 X 50

250000749

$3.17

3010

Torx Truss Screw M6 X 50

250000749

$3.17

3020

Stainless Steel Flat Washer

234062670

$2.11

3020

Stainless Steel Flat Washer

234062670

$2.11

3030

Hex. Flange Elastic Nut M6

233261466

$2.00

3030

Hex. Flange Elastic Nut M6

233261466

$2.00

3400

Black, LH Front Lateral Panel Kit

715006594

$124.99

3410

Torx Screw M6 X 20

250000722

$1.68

3411

Torx Screw M6 X 20

250000712

$2.11

3412

Torx Truss Screw M6 X 25

250000807

$2.11

3415

Hex. Flange Elastic Nut M6

233261494

$1.58

3420

Threaded Insert M6 X 1.0

250100242

Unavailable

3430

Panel Nut M6 X 1.0

250100198

$2.11

3440

Torx Truss M6 X 50

250000868

$2.11

3500

RH Front Lateral Panel Kit

715004074

$104.99

3510

Torx Screw M6 X 20

250000722

$1.68

3511

Torx Screw M6 X 20

250000712

$2.11

3515

Hex. Flange Elastic Nut M6

233261494

$1.58

3520

Threaded Insert M6 X 1.0

250100242

Unavailable

3530

Panel Nut M6 X 1.0

250100198

$2.11

3540

Torx Truss M6 X 50

250000868

$2.11

3550

Hex. Flange Elastic Nut M6

233261494

$1.58

3560

Grommet

517303756

$4.09

3600

Lateral Cover

705017564

$43.99

4030

Torx Truss Screw M6 X 25

250000807

$2.11

4040

Panel Nut M6 X 1.0

250100198

$2.11

4050

Torx Screw K50 X 16

250000720

$1.69

4100

LH Central Lateral Panel

705009513

$67.99

4200

Deep Black, RH Central Body Panel

705017555

$73.99

4210

Torx Screw M6 X 20

250000722

$1.68

4220

Panel Nut M6 X 1.0

250100198

$2.11

4230

Insert

705016606

$2.79

4300

LH Rear Lateral Panel

705010676

$119.99

4400

Deep Black, RH Rear Lateral Panel

705010677

$119.99

4410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4420

Panel Nut M6 X 1.0

250100198

$2.11

4440

Support Plate

705003841

$0.99

4610

Torx Screw M6 X 20

250000722

$1.68

4650

Support Plate

705003841

$0.99

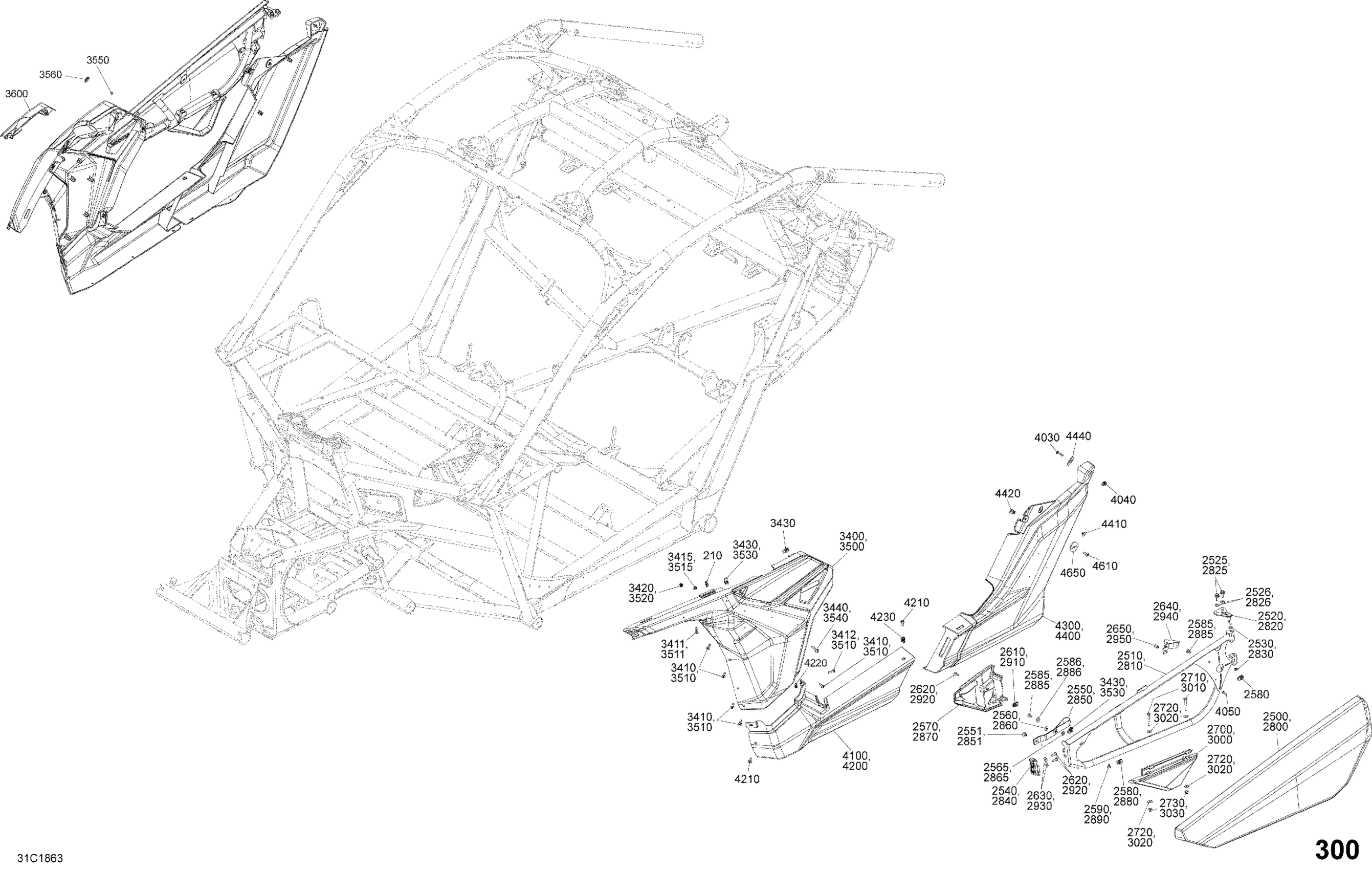

Can-Am Maverick X3 Turbo R - STD_XDS DPS_XRS DPS, 2018 Body Parts - Platinum Silver Satin - Package XDS DPS - Side Section Diagram

Clip

Silver Platinum, LH Door Panel

Deep Black, LH Front Door

Deep Black, LH Front Door

Door Support

Hex Screw Washer Head M8 X 20

Flat Washer M8

Flat Washer 8 mm, Nylon

LH Latch

Belt

Pop Rivet 3/16”

Belt Stopper

Belt Stopper

LH Latch Cover

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Stainless Steel Flat Washer

Pop Rivet 3/16"

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Stainless Steel Flat Washer

Door Belt

Pop Rivet 3/16"

LH Lower Door Panel

LH Lower Door Panel

Torx Truss Screw M6 X 50

Torx Truss Screw M6 X 50

Stainless Steel Flat Washer

Stainless Steel Flat Washer

Hex. Flange Elastic Nut M6

Hex. Flange Elastic Nut M6

Silver Platinum, RH Door Panel

Deep Black, RH Front Door

Deep Black, RH Front Door

Door Support

Hex Screw Washer Head M8 X 20

Flat Washer M8

Flat Washer 8 mm, Nylon

RH Latch

Belt

Pop Rivet 3/16”

Belt Stopper

Belt Stopper

RH Latch Cover

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Stainless Steel Flat Washer

Pop Rivet 3/16"

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Stainless Steel Flat Washer

Door Belt

Pop Rivet 3/16"

RH Lower Door Panel

RH Lower Door Panel

Torx Truss Screw M6 X 50

Torx Truss Screw M6 X 50

Stainless Steel Flat Washer

Stainless Steel Flat Washer

Hex. Flange Elastic Nut M6

Hex. Flange Elastic Nut M6

Black, LH Front Lateral Panel Kit

Torx Screw M6 X 20

Torx Screw M6 X 20

Torx Truss Screw M6 X 25

Hex. Flange Elastic Nut M6

Threaded Insert M6 X 1.0

Panel Nut M6 X 1.0

Torx Truss M6 X 50

RH Front Lateral Panel Kit

Torx Screw M6 X 20

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6

Threaded Insert M6 X 1.0

Panel Nut M6 X 1.0

Torx Truss M6 X 50

Hex. Flange Elastic Nut M6

Grommet

Lateral Cover
